Removal

LIGHTING: HEADLIGHT ASSEMBLY (w/o Projector Headlight): REMOVAL

REMOVAL
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE FRONT FENDER LINER LH Removal

3. REMOVE FRONT FENDER LINER RH Removal

4. REMOVE FRONT BUMPER COVER Removal

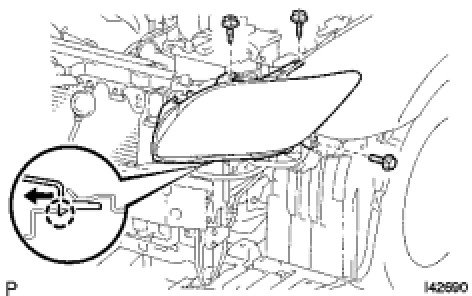

5. REMOVE HEADLIGHT ASSEMBLY LH
(a) Remove the 2 screws and bolt and disengage the claw.
(b) Disconnect the connectors and remove the headlight.
