Disassembly

LIGHTING: HEADLIGHT ASSEMBLY (w/o Projector Headlight): DISASSEMBLY

DISASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.





1. REMOVE NO. 1 HEADLIGHT BULB

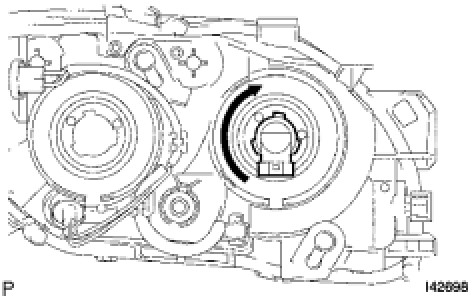

(a) Remove the No. 1 bulb as shown in the illustration.






2. REMOVE NO. 2 HEADLIGHT BULB

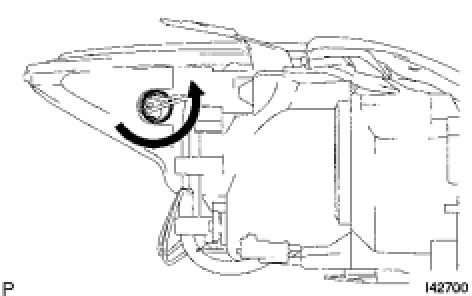

(a) Remove the No. 2 bulb as shown in the illustration.






3. REMOVE FRONT TURN SIGNAL LIGHT BULB

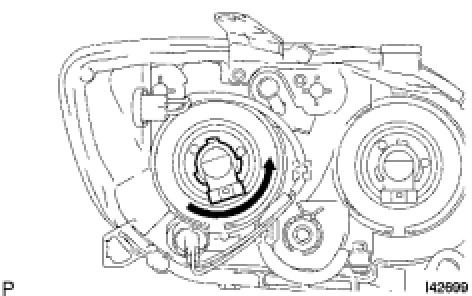

(a) Remove the front turn signal light socket as shown in the illustration.
(b) Remove the front turn signal light bulb from the socket.






4. REMOVE CLEARANCE LIGHT BULB

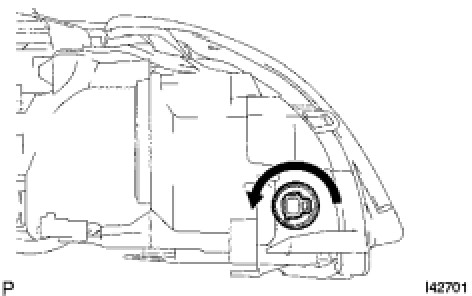

(a) Remove the clearance light socket as shown in the illustration.
(b) Remove the clearance light bulb from the socket.






5. REMOVE FRONT SIDE MAKER LIGHT BULB
(a) Remove the front side maker light socket as shown in the illustration.
(b) Remove the front side maker light bulb from the socket.






6. REMOVE HEADLIGHT CORD LH
(a) Detach the 3 clamps and remove the headlight cord LH.
