Components








LIGHTING: HEADLIGHT ASSEMBLY (w/o Projector Headlight): COMPONENTS

COMPONENTS

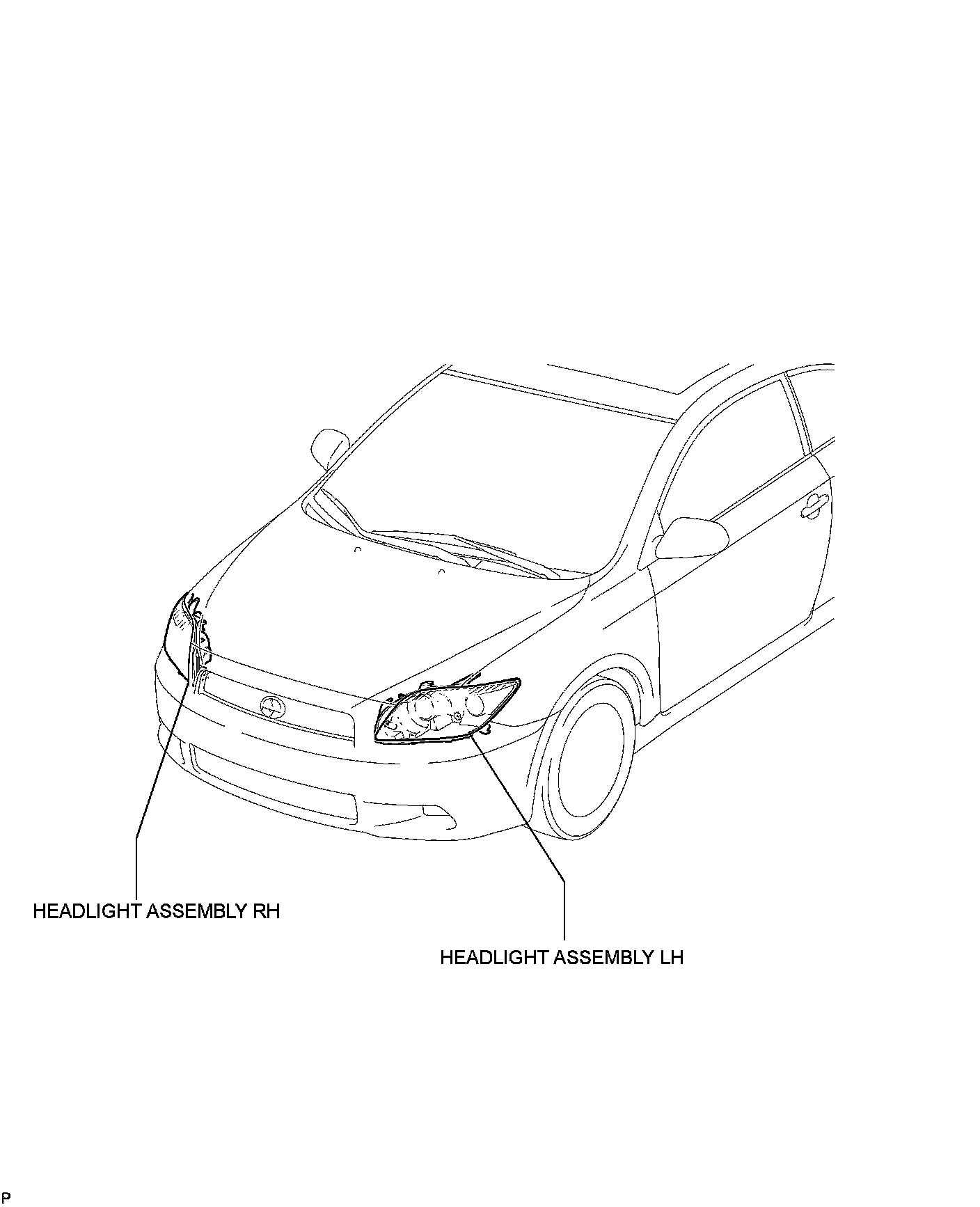

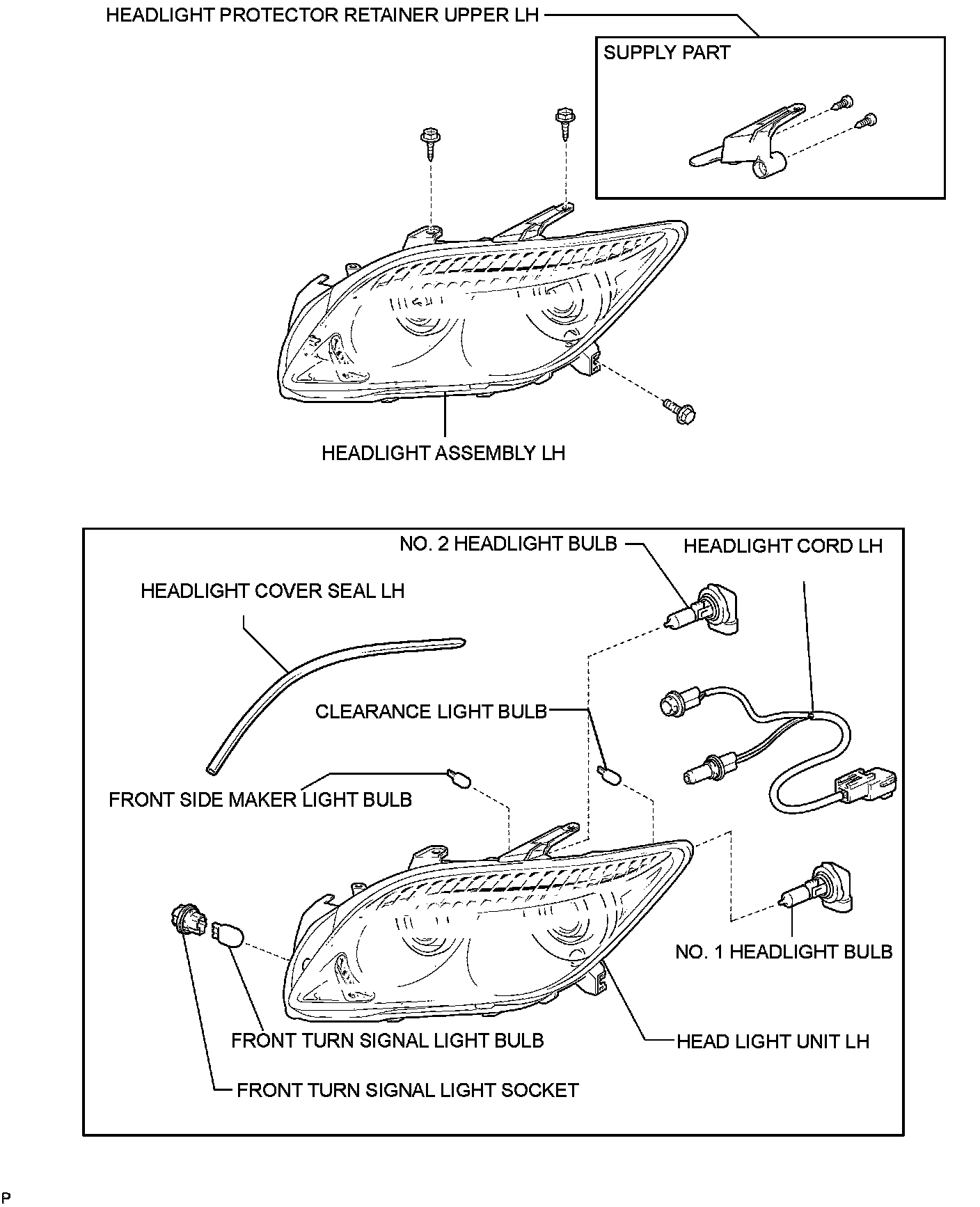

ILLUSTRATION
