Disassembly

LIGHTING: HEADLIGHT ASSEMBLY (w/ Projector Headlight): DISASSEMBLY

DISASSEMBLY
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. REMOVE NO. 2 HEADLIGHT BULB

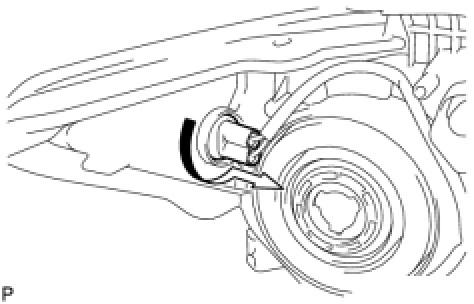

(a) Remove the No. 2 headlight bulb as shown in the illustration.
NOTE: Do not touch the bulb glass with fingers.

2. REMOVE NO. 1 HEADLIGHT BULB

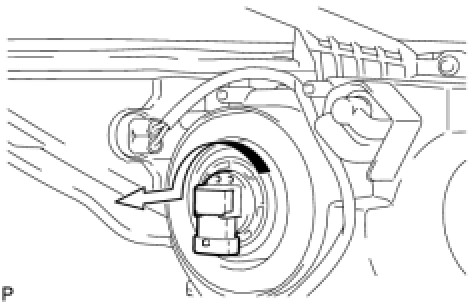

(a) Remove the No. 1 headlight bulb as shown in the illustration.
NOTE: Do not touch the bulb glass with fingers.

3. REMOVE FRONT TURN SIGNAL LIGHT BULB

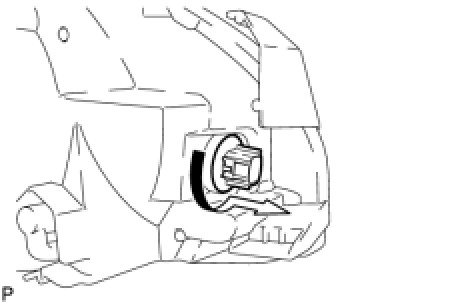

(a) Turn the front turn signal light bulb and the front turn signal light socket in the direction indicated by the arrow and remove them as a unit.
(b) Remove the front turn signal light bulb from the front turn signal light socket.
4. REMOVE FRONT SIDE MARKER LIGHT BULB






(a) Turn the front side marker light bulb and the headlight cord in the direction indicated by the arrow and disconnect them as a unit.
(b) Remove the front side marker light bulb from the headlight cord.
5. REMOVE CLEARANCE LIGHT BULB






(a) Turn the clearance light bulb and the headlight cord in the direction indicated by the arrow and disconnect them as a unit.
(b) Remove the clearance light bulb from the headlight cord.
6. REMOVE HEADLIGHT CORD






(a) Disengage the claw and clamp, and remove the headlight cord.
7. REMOVE HEADLIGHT COVER SEAL






(a) Remove the headlight cover seal.
NOTE: Do not reuse the removed headlight cover seal. Be sure to install a new headlight cover seal.
