Headlight Assembly (w/ Projector Headlight)

LIGHTING: HEADLIGHT ASSEMBLY (w/ Projector Headlight): REPAIR

REPAIR
HINT:
- If the installation area of the headlight assembly is damaged, use the supply bracket for low-cost repair.
- Ensure that the headlight assembly is not damaged.
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

1. INSTALL UPPER HEADLIGHT PROTECTOR RETAINER

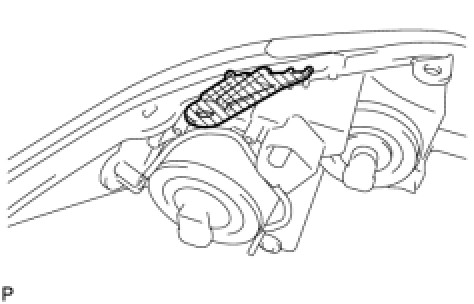

(a) Cut off the part shaded in the illustration and smooth with sandpaper.
NOTE: After cutting off the part, place the upper headlight protector retainer against the bosses and gradually file away the old bracket if it interferes with the installation of the supply bracket.

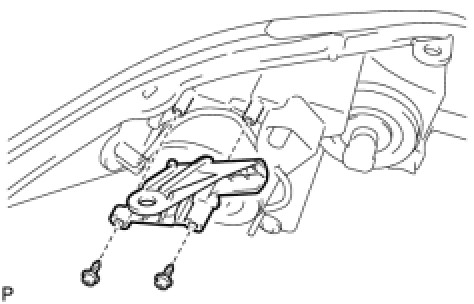

(b) Install the upper headlight protector retainer with the 2 screws.
