2008
>>
tC L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Diagrams
>>
Connector Views
Connector Views

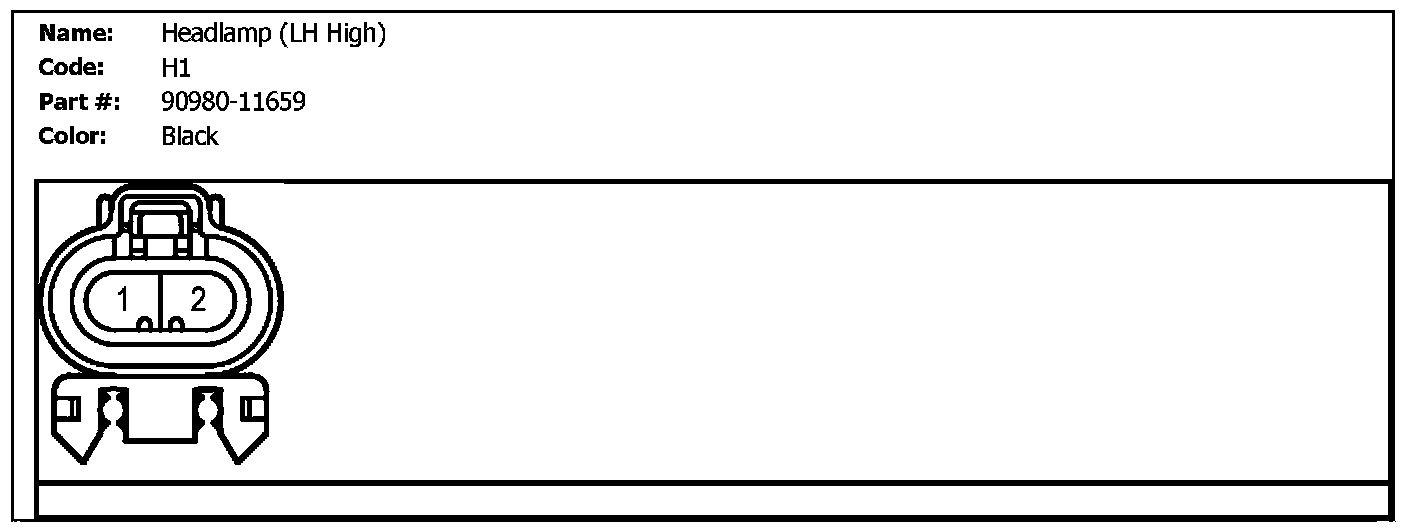

H1 (Headlamp (LH High)):

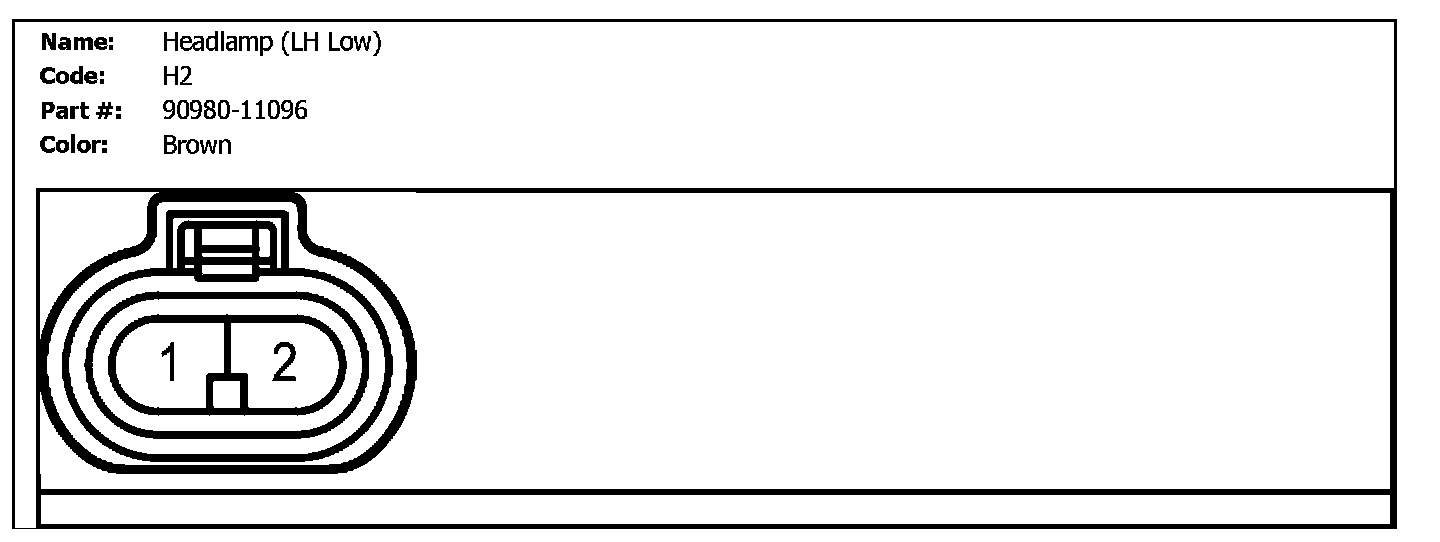

H2 (Headlamp (LH Low)):

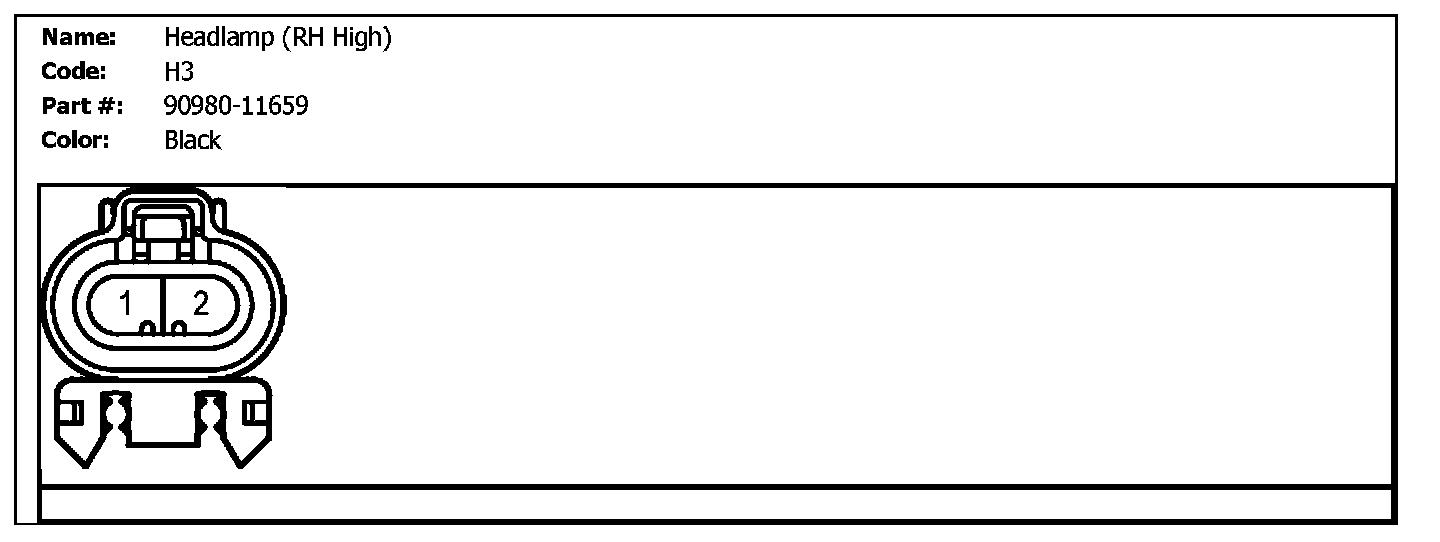

H3 (Headlamp (RH High)):

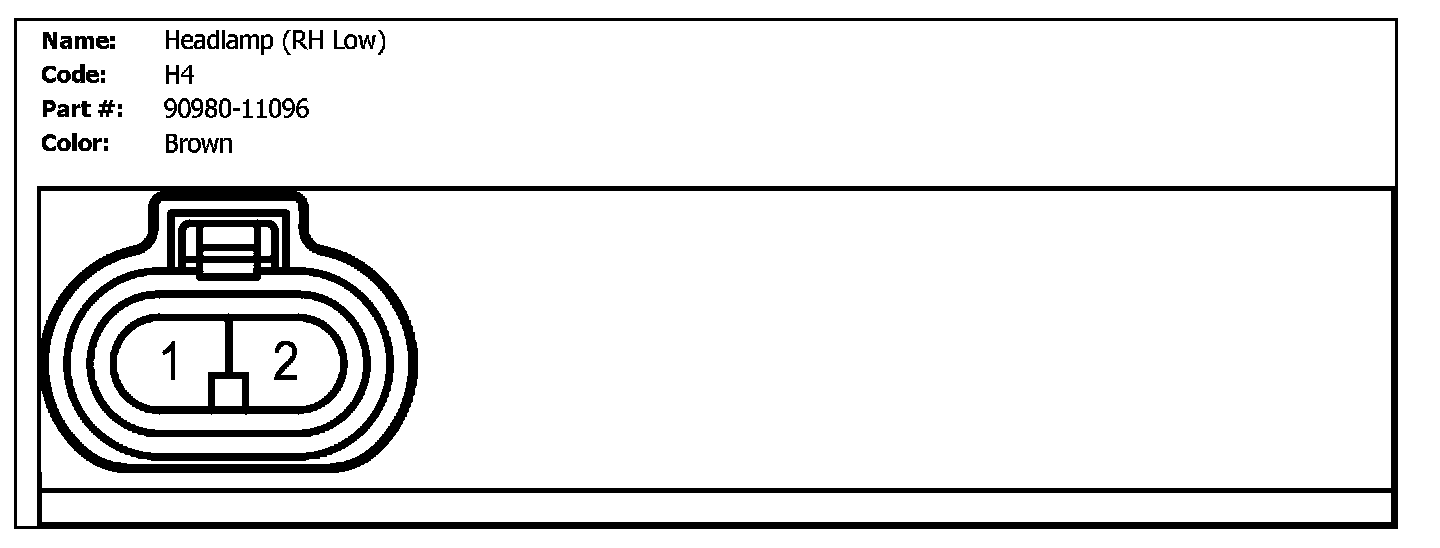

H4 (Headlamp (RH Low)):

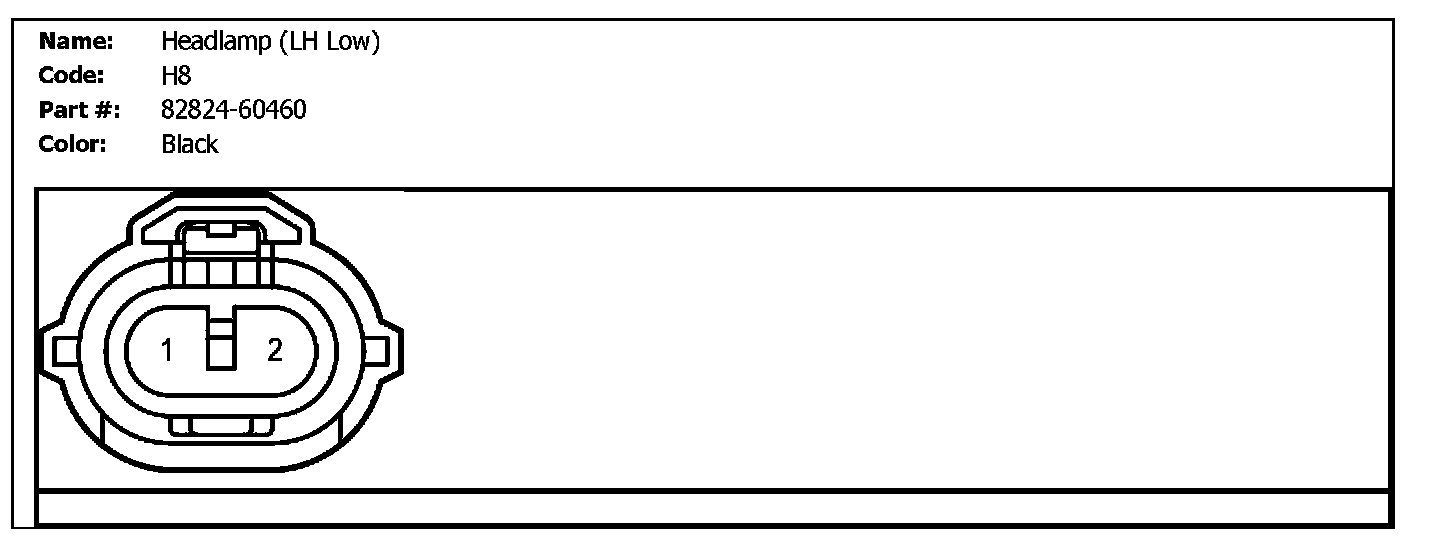

H8 (Headlamp (LH Low)):

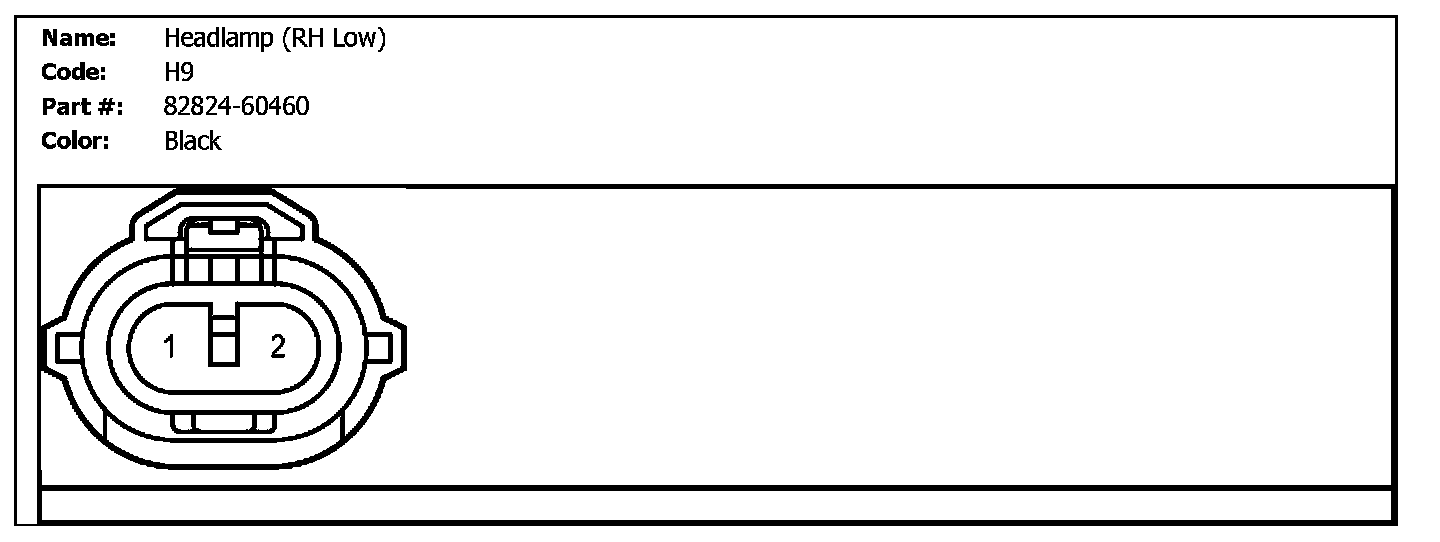

H9 (Headlamp (RH Low)):
