Installation

TIRE AND WHEEL: TIRE PRESSURE WARNING ECU: INSTALLATION

INSTALLATION

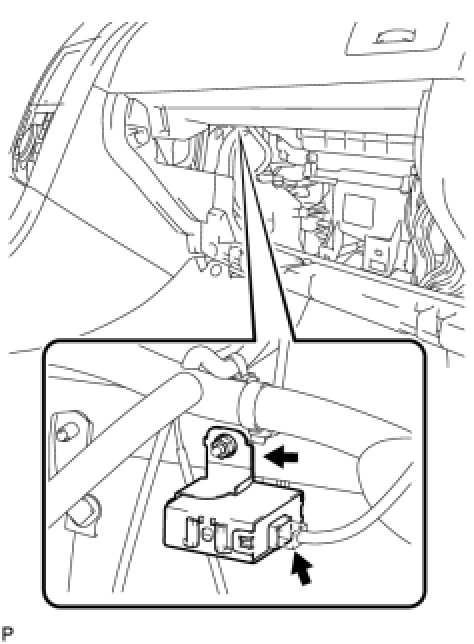

1. INSTALL TIRE PRESSURE WARNING ECU






(a) Connect the connector to the tire pressure warning ECU.
(b) Install the tire pressure warning ECU with the nut.
Torque: 4.5 Nm (46 kgf-cm, 40 in-lbf)
2. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY Installation

3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
HINT: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

4. REGISTER TRANSMITTER ID
HINT:
Registration.

5. INSPECT TIRE PRESSURE WARNING SYSTEM
HINT:
Test Mode Procedure.

6. INITIALIZE SYSTEM
NOTICE:
- Be sure to register the transmitter IDs of all tires including the full-size spare tire in the ECU before initialization.
- Be sure to inflate all tires including the full-size spare tire to the proper inflation pressure before initialization.
HINT:
Initialization.
