Driver Side Seat Belt Warning Light Does Not Operate

METER: METER / GAUGE SYSTEM: Driver Side Seat Belt Warning Light does not Operate

Driver Side Seat Belt Warning Light does not Operate

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. INSPECT FRONT SEAT INNER BELT ASSEMBLY (DRIVER SIDE)





(a) Remove the front seat inner belt.

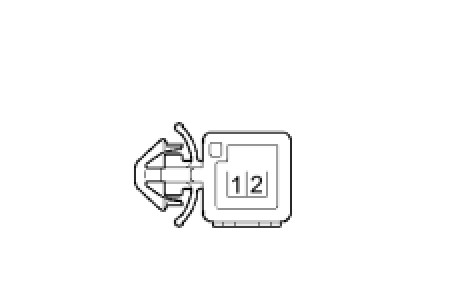

(b) Measure the resistance of the belt.

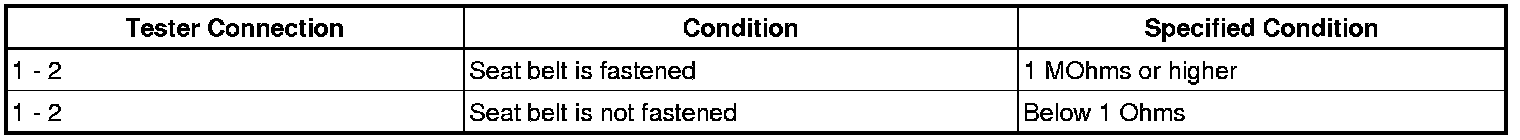

Standard resistance:






NG -- REPLACE FRONT SEAT INNER BELT ASSEMBLY (DRIVER SIDE)
OK -- Continue to next step.
2. CHECK WIRE HARNESS (FRONT SEAT INNER BELT - COMBINATION METER AND BODY GROUND)





(a) Disconnect the F7 belt connector.
(b) Disconnect the C6 meter connector.

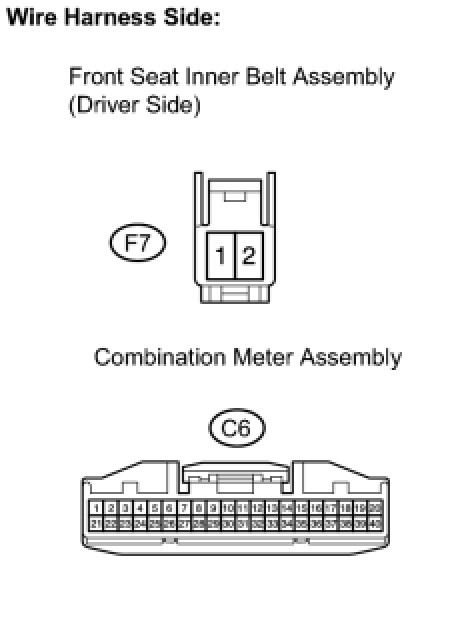

(c) Measure the resistance of the wire harness side connectors.

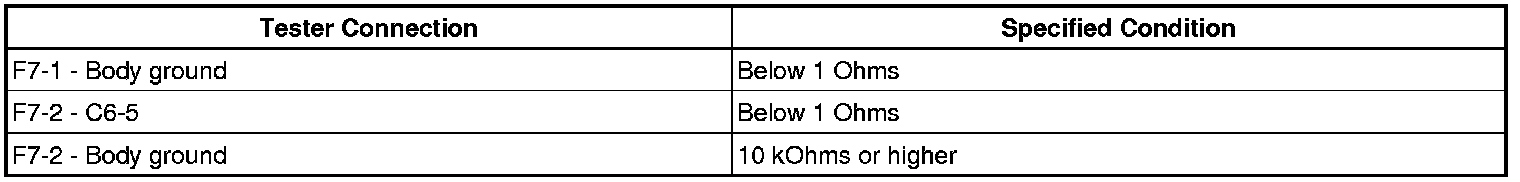

Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- REPAIR OR REPLACE COMBINATION METER ASSEMBLY
