Meter / Gauge System

METER: METER / GAUGE SYSTEM: TERMINALS OF ECU

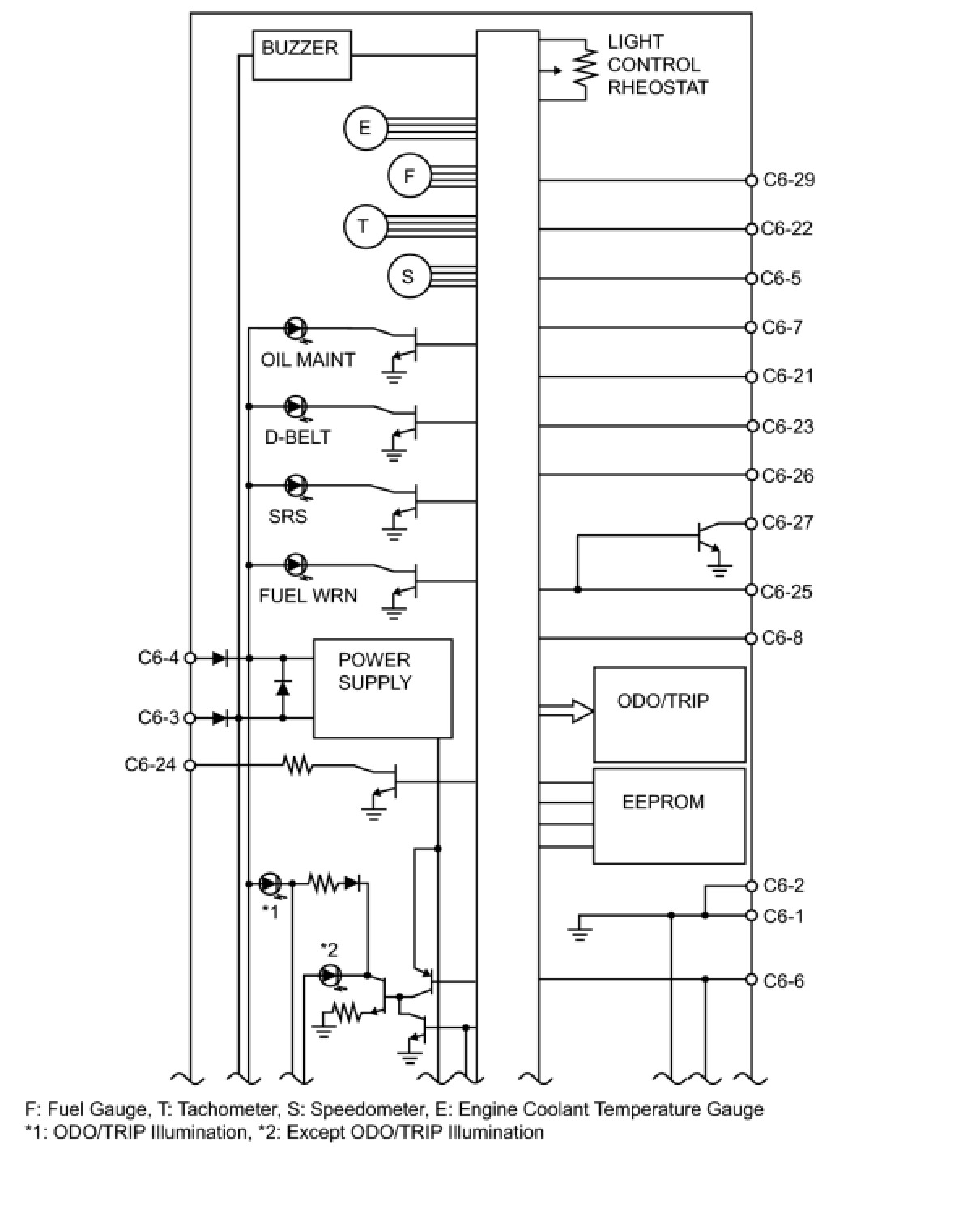

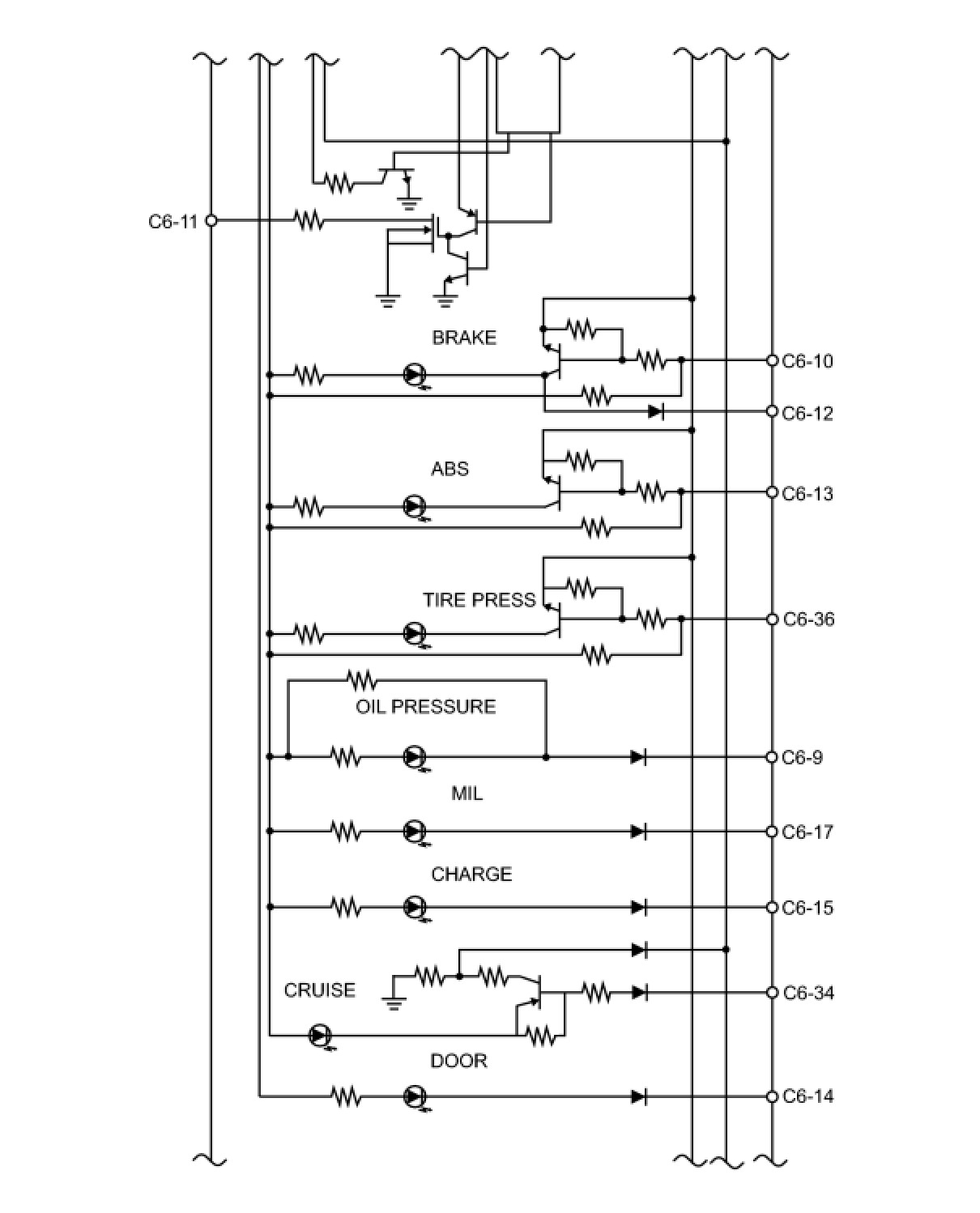

TERMINALS OF ECU

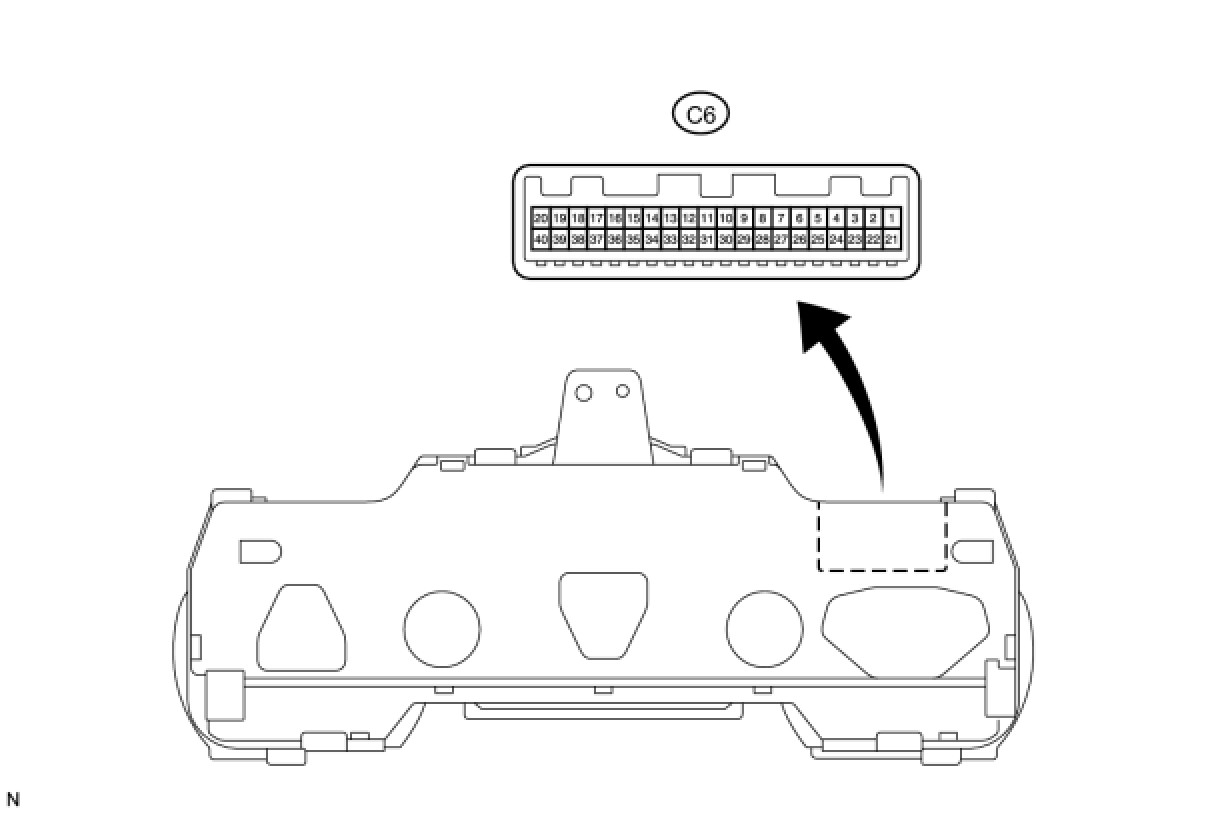

1. CHECK COMBINATION METER ASSEMBLY

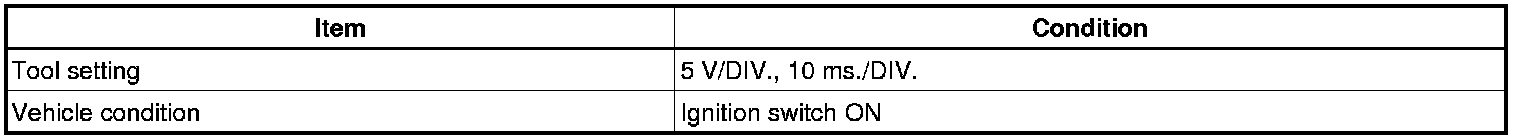

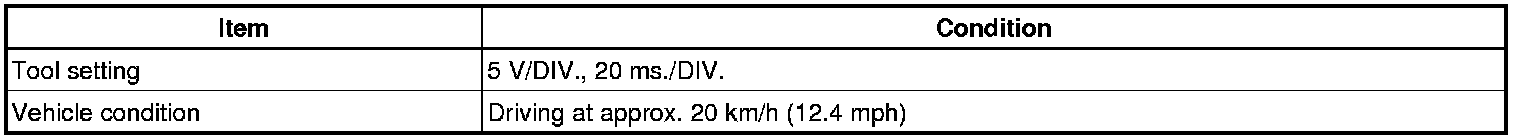

(a) Using an oscilloscope, check the signal waveform of the meter.

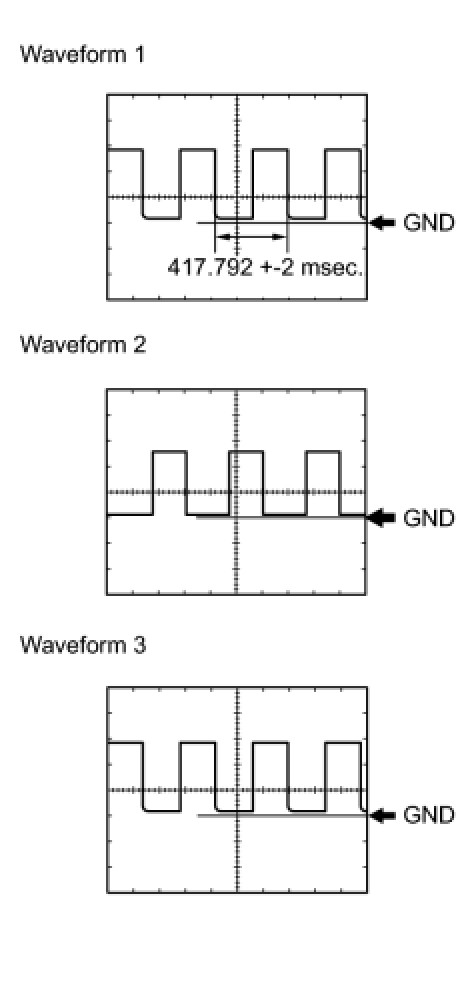

Waveform 1 (Reference)





Waveform 2 (Reference)





Waveform 3 (Reference)





HINT: As vehicle speed increases, the cycle of the signal waveform narrows.

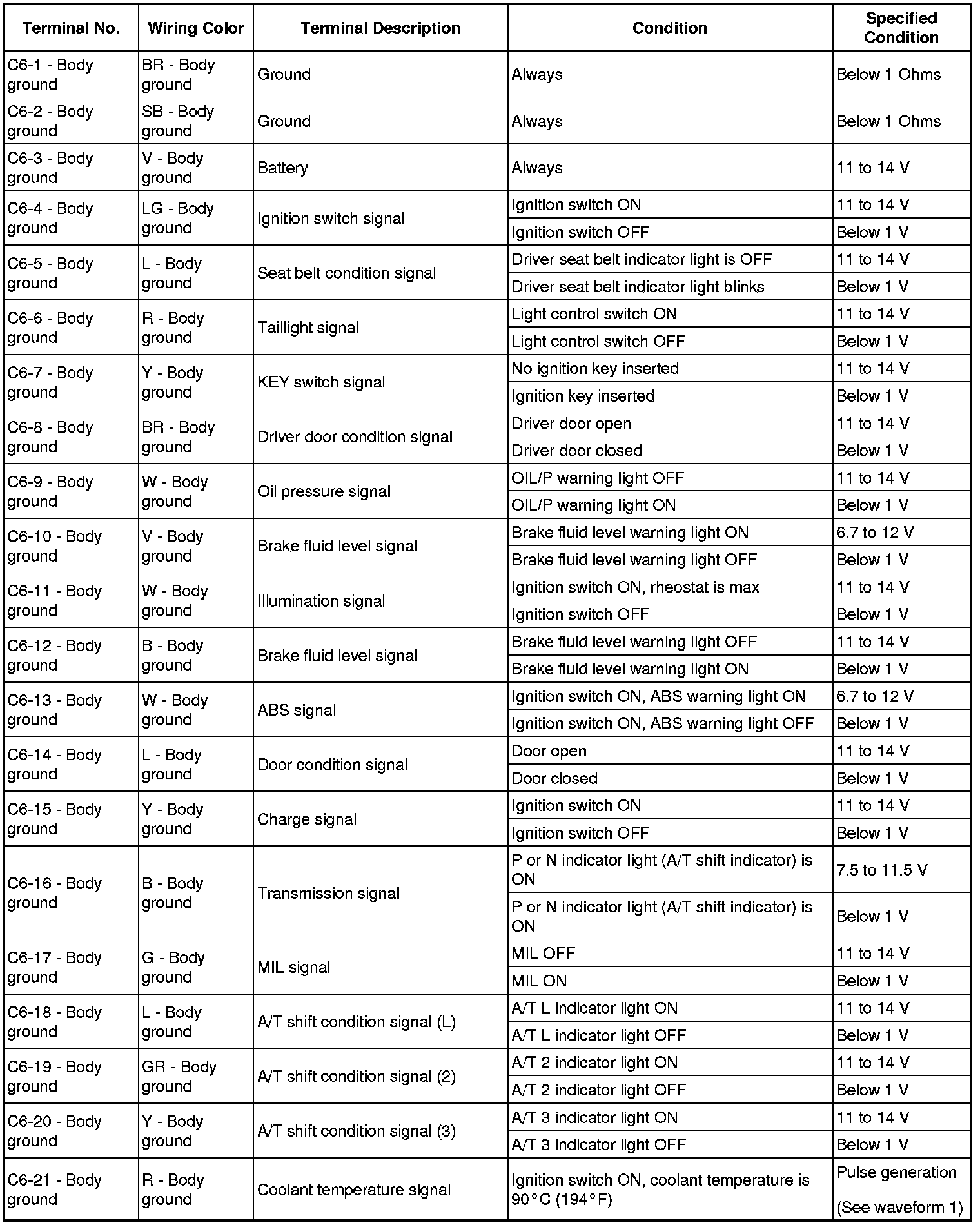

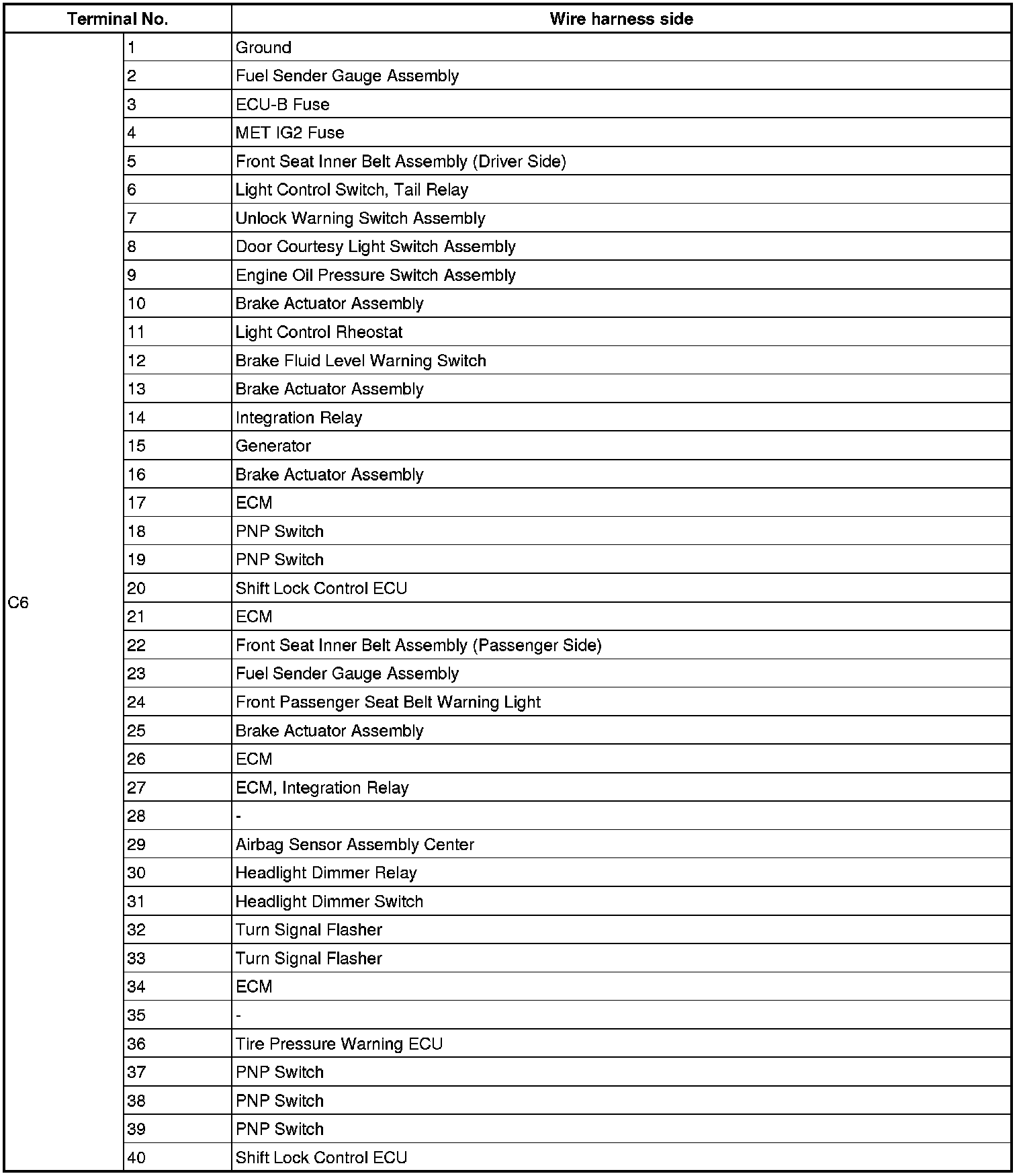

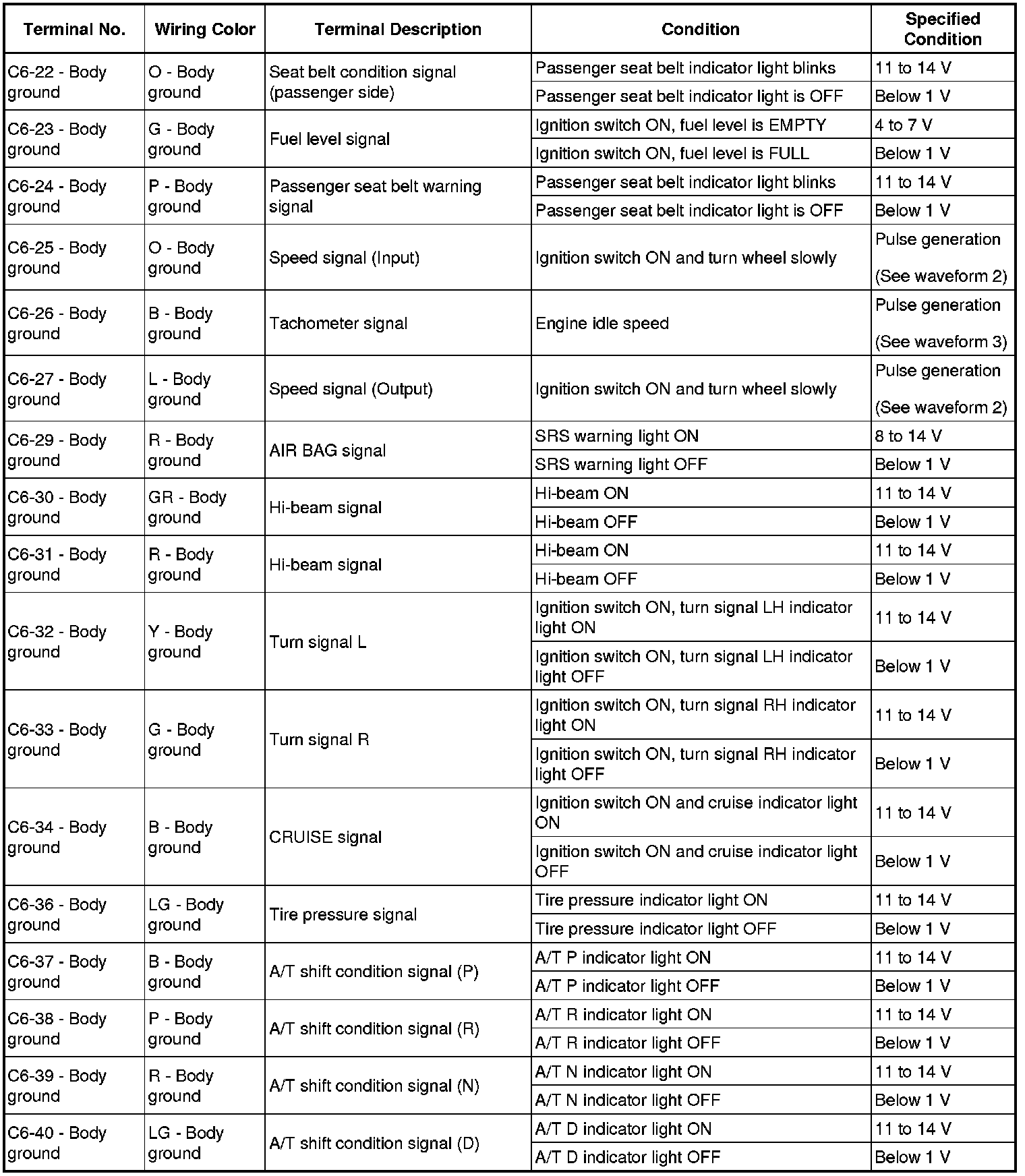

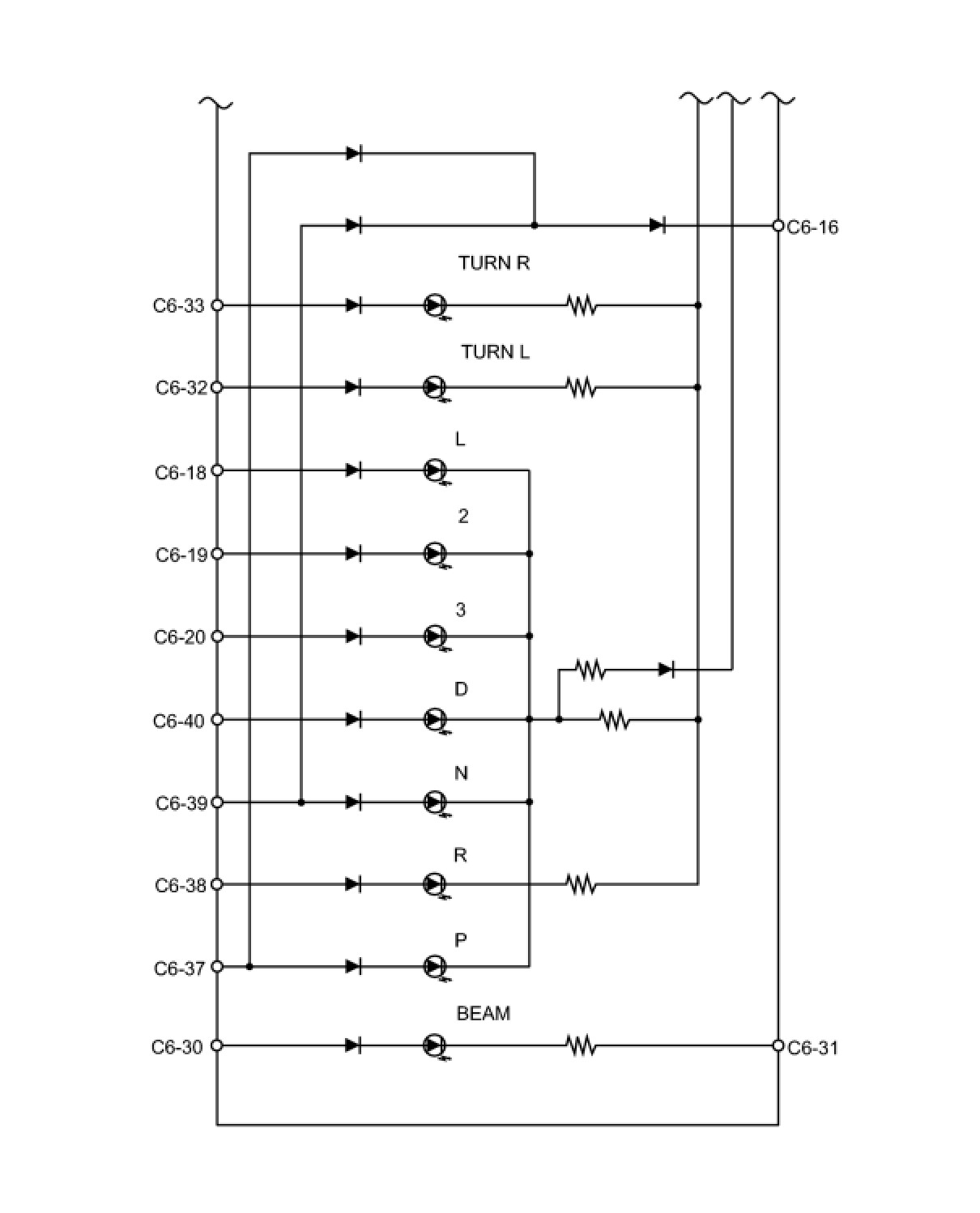

Table of Terminal Connection
