Key Reminder Warning System

DOOR LOCK: KEY REMINDER WARNING SYSTEM: TERMINALS OF ECU

TERMINALS OF ECU

1. CHECK COMBINATION METER ASSEMBLY

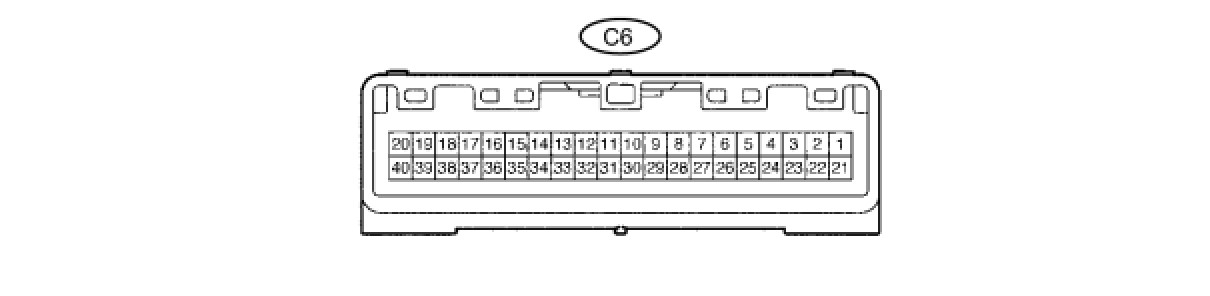

(a) Disconnect the C6 meter connector.

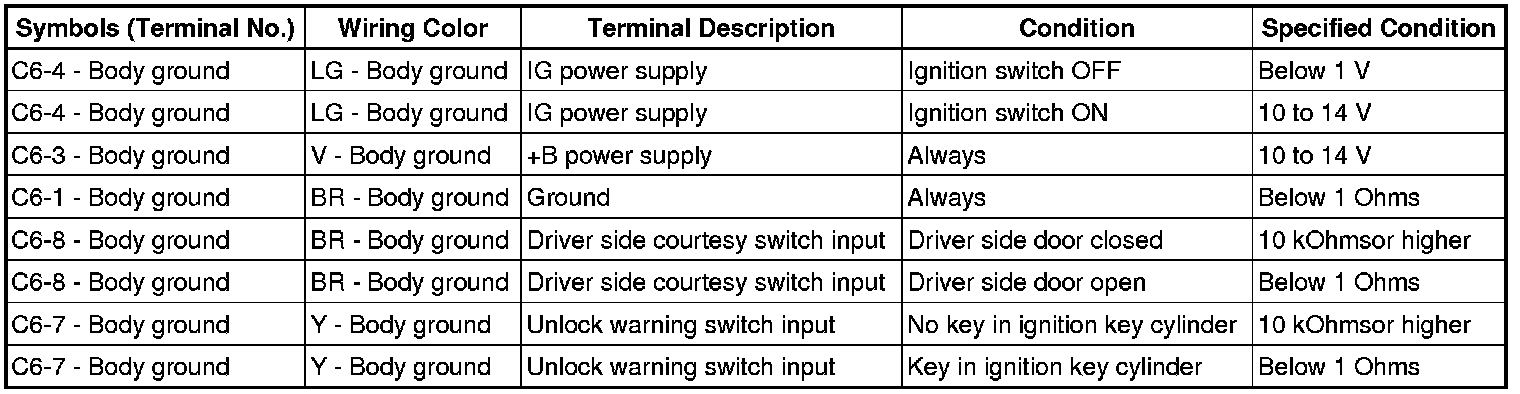

(b) Measure the voltage and resistance of the wire harness side connector.





- If the result is not as specified, there may be a malfunction on the wire harness side.
