DOOR LOCK: KEY REMINDER WARNING SYSTEM: HOW TO PROCEED WITH TROUBLESHOOTING

HOW TO PROCEED WITH TROUBLESHOOTING
HINT: Use these procedure to troubleshoot the key reminder warning system.

1. VEHICLE BROUGHT TO WORKSHOP
NEXT -- Continue to next step.
2. INSPECT BATTERY VOLTAGE
Standard voltage:
11 to 14 V
If the voltage is below 11 V, recharge or replace the battery before proceeding.
NEXT -- Continue to next step.
3. PROBLEM SYMPTOMS TABLE

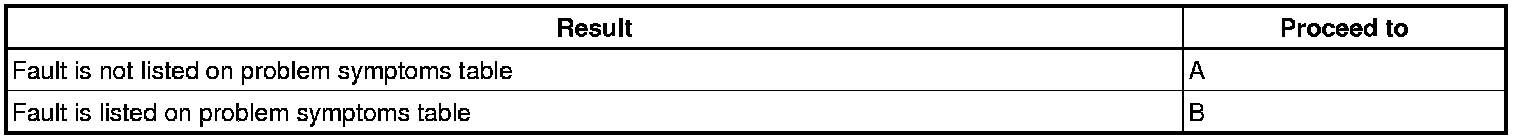

Result:





B -- Go to step 4
A -- Continue to next step.
4. OVERALL ANALYSIS AND TROUBLESHOOTING
(a) Terminals of ECU Key Reminder Warning System.
(b) On-vehicle inspection Key Reminder Warning System.
(c) Inspection
(1) Front door courtesy light switch Key Reminder Buzzer Does Not Sound.
(2) Unlock warning switch Key Reminder Buzzer Does Not Sound.
NEXT -- Continue to next step.
5. REPAIR OR REPLACE
NEXT -- Continue to next step.
6. CONFIRMATION TEST
NEXT -- END
