Compressor Clutch Relay: Testing and Inspection

AIR CONDITIONING: MAGNETIC CLUTCH RELAY: ON-VEHICLE INSPECTION

ON-VEHICLE INSPECTION

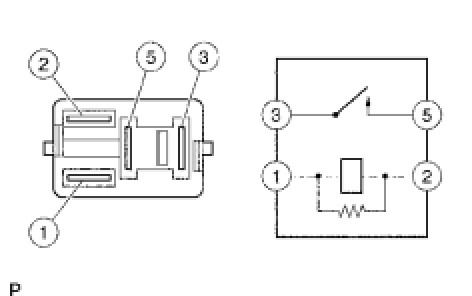

1. INSPECT MAGNET CLUTCH RELAY (Marking: MG/C)






(a) Remove the magnet clutch relay from the No. 2 engine room relay block.
(b) Measure the resistance according to the value(s) in the table below.

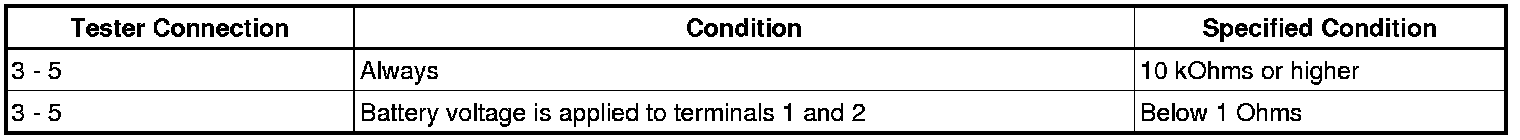

Standard resistance:





If the resistance is not as specified, replace the magnet clutch relay.
