Removal

AIR CONDITIONING: CONDENSER: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM Service and Repair

3. DISCONNECT NO. 1 COOLER REFRIGERANT DISCHARGE HOSE






(a) Remove the bolt and disconnect the cooler refrigerant discharge hose from the cooler condenser.
(b) Remove the O-ring from the cooler refrigerant discharge hose.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

4. DISCONNECT COOLER REFRIGERANT LIQUID PIPE






(a) Remove the 2 bolts and disconnect the cooler refrigerant liquid pipe from the cooler condenser.
(b) Remove the O-ring from the cooler refrigerant liquid pipe.
NOTE: Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

5. REMOVE RADIATOR SUPPORT UPPER BRACKET






(a) Remove the 2 bolts and 2 brackets.
6. REMOVE HOOD LOCK ASSEMBLY






(a) Remove the 3 bolts and hood lock.
7. REMOVE LOW PITCHED HORN ASSEMBLY Removal

8. REMOVE HIGH PITCHED HORN ASSEMBLY Removal

9. REMOVE RADIATOR SUPPORT UPPER






(a) Remove the 5 bolts, 2 nuts and radiator support upper.

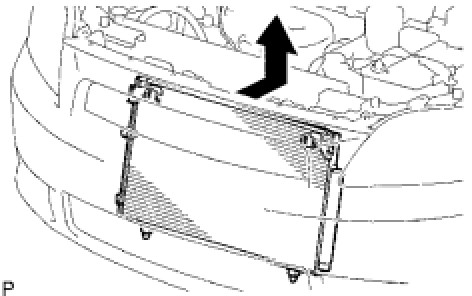

10. REMOVE COOLER CONDENSER ASSEMBLY






(a) Remove the cooler condenser.
