Installation

AIR CONDITIONING: CONDENSER: INSTALLATION

INSTALLATION

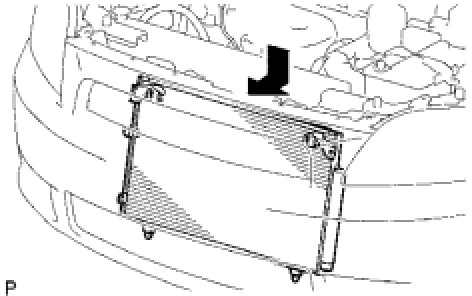

1. INSTALL COOLER CONDENSER ASSEMBLY






(a) Install the cooler condenser.
HINT: If the condenser is replaced with a new one, add compressor oil to the new condenser.

Capacity:
40 cc (1.4 fl. oz.)
Compressor oil:
ND-8 or equivalent
2. INSTALL RADIATOR SUPPORT UPPER






(a) Install the radiator support upper with the 5 bolts and 2 nuts.
Torque: 9.8 Nm (100 kgf-cm, 7 ft-lbf)
3. INSTALL HIGH PITCHED HORN ASSEMBLY Installation

4. INSTALL LOW PITCHED HORN ASSEMBLY Installation

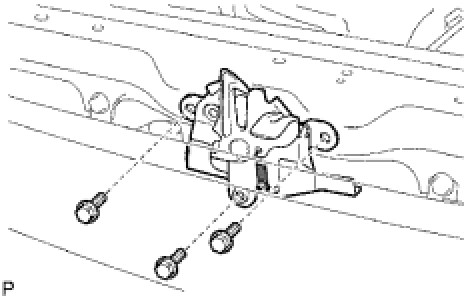

5. INSTALL HOOD LOCK ASSEMBLY






(a) Install the hood lock with the 3 bolts.

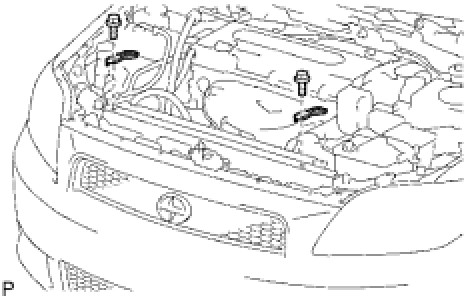

6. INSTALL RADIATOR SUPPORT UPPER BRACKET






(a) Install the 2 brackets with the 2 bolts.
Torque: 19 Nm (194 kgf-cm, 14 ft-lbf)

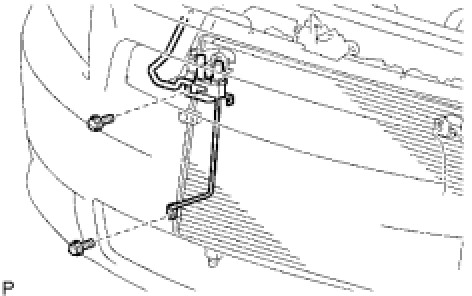

7. INSTALL COOLER REFRIGERANT LIQUID PIPE






(a) Remove the attached vinyl tape from the pipe and the connecting part of the cooler condenser.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the pipe joint.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring on the cooler refrigerant liquid pipe.
(d) Install the cooler refrigerant liquid pipe on the cooler condenser with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)

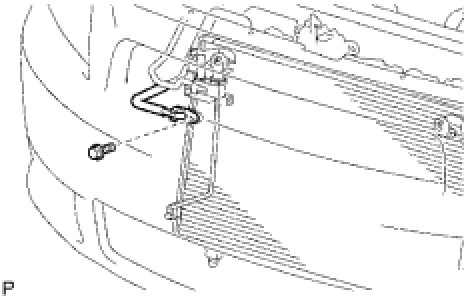

8. INSTALL NO. 1 COOLER REFRIGERANT DISCHARGE HOSE






(a) Remove the attached vinyl tape from the hose and the connecting part of the cooler condenser.
(b) Sufficiently apply compressor oil to a new O-ring and the fitting surface of the hose joint.
Compressor oil:
ND-OIL 8 or equivalent
(c) Install the O-ring on the cooler refrigerant discharge hose.
(d) Install the cooler refrigerant discharge hose on the cooler condenser with the bolt.
Torque: 5.4 Nm (55 kgf-cm, 47 in-lbf)
9. ADJUST HOOD SUB-ASSEMBLY Adjustments

10. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
11. PERFORM INITIALIZATION
(a) Perform initialization Testing and Inspection.
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.

12. CHARGE REFRIGERANT Service and Repair

13. WARM UP ENGINE Service and Repair

14. INSPECT FOR REFRIGERANT LEAK Service and Repair
