AIR CONDITIONING: BLOWER UNIT: DISASSEMBLY

DISASSEMBLY

1. REMOVE AIR FILTER CASE

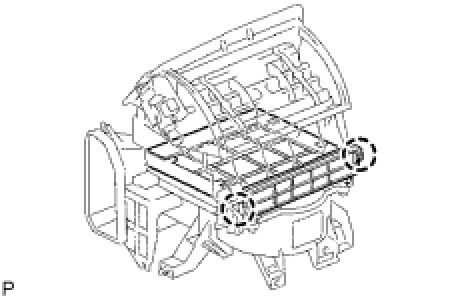

(a) Detach the 2 claws and remove the air filter case.
2. REMOVE AIR INLET SERVO MOTOR

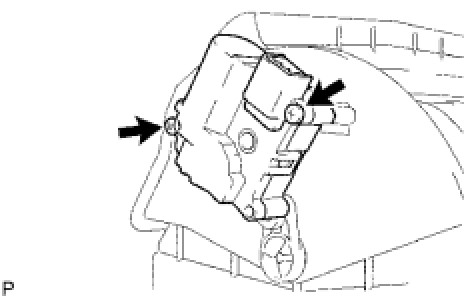

(a) Remove the 2 screws and air inlet servo motor.
3. REMOVE BLOWER MOTOR CONTROL

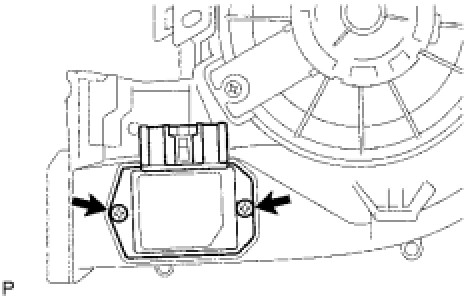

(a) Remove the 2 screws and blower motor control.
4. REMOVE BLOWER WITH FAN MOTOR SUB-ASSEMBLY

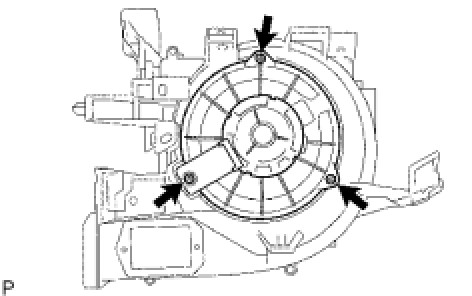

(a) Remove the 3 screws and blower w/ fan motor.
