Air Outlet Control Servo Motor

AIR CONDITIONING: AIR OUTLET CONTROL SERVO MOTOR: INSPECTION

INSPECTION

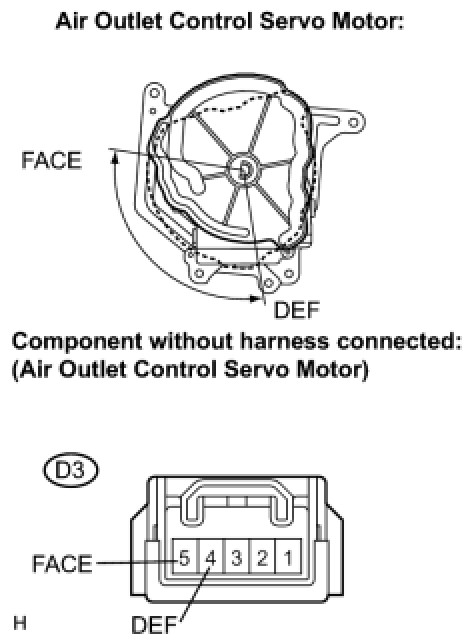

1. INSPECT AIR OUTLET CONTROL SERVO MOTOR
(a) Inspect the servo motor operation.





(1) Connect the positive (+) lead from the battery to terminal D3-5 (FACE) and negative (-) lead to terminal D3-4 (DEF), and then check that the lever turns to the "FACE" position smoothly.
(2) Connect the positive (+) lead from the battery to terminal D3-4 (DEF) and negative (-) lead to terminal D3-5 (FACE), and then check that the lever turns to the "DEF" position smoothly.
If the operation is not as specified, replace the air outlet control servo motor.
