Reassembly

2AZ-FE EXHAUST: EXHAUST PIPE: REASSEMBLY

REASSEMBLY





1. INSTALL TAILPIPE BAFFLE SUB-ASSEMBLY

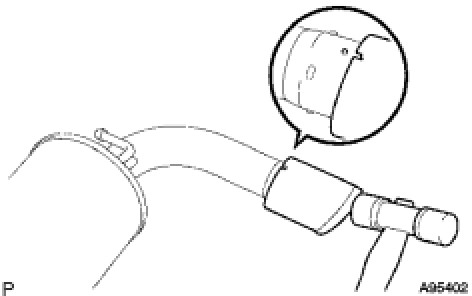

(a) Align the baffle with the protruding part of the tailpipe as shown in the illustration.
(b) Using a plastic-faced hammer, uniformly tap the baffle onto the tailpipe.
