2AZ-FE ENGINE MECHANICAL: TIMING CHAIN: REPLACEMENT

REPLACEMENT

1. REMOVE TIMING CHAIN COVER OIL SEAL

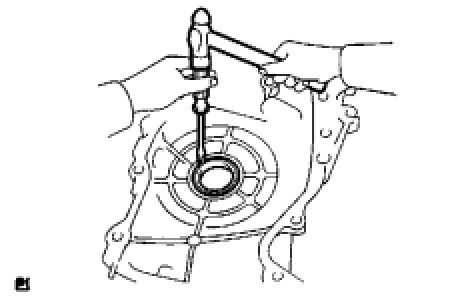

(a) Using a screwdriver and hammer, tap out the oil seal.
2. INSTALL TIMING CHAIN COVER OIL SEAL
(a) Place the oil seal retainer on wooden blocks.

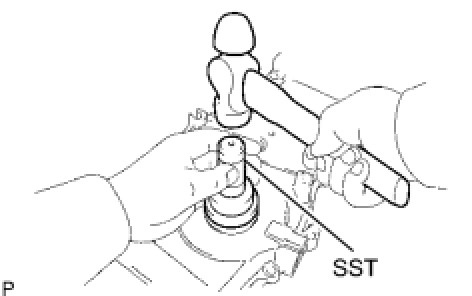

(b) Using SST and a hammer, tap in the oil seal until its surface is flush with the timing gear case edge.
SST: 09223-22010

NOTICE:
- Keep the lip free from foreign matter.
- Do not tap the oil seal at an angle.
HINT: Apply a light coat of MP grease to the lip of a new oil seal.
