Installation

2AZ-FE COOLING: THERMOSTAT: INSTALLATION

INSTALLATION

1. INSTALL THERMOSTAT
(a) Install a new gasket onto the thermostat.

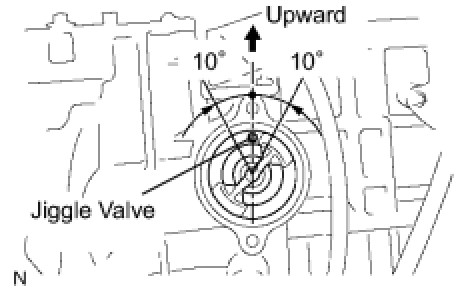

(b) Install the thermostat with the jiggle valve upward.
HINT: The jiggle valve may be set to within 10° on either side of the prescribed position.

2. INSTALL WATER INLET
(a) Install the water inlet with the 2 nuts.
Torque: 9.0 Nm (92 kgf-cm, 80 in-lbf)
3. ADD ENGINE COOLANT Testing and Inspection

4. CHECK FOR ENGINE COOLANT LEAKAGE Testing and Inspection
