Scan Tool Testing and Procedures

CRUISE CONTROL: CRUISE CONTROL SYSTEM: DATA LIST / ACTIVE TEST

DATA LIST / ACTIVE TEST

1. DATA LIST
(a) While the intelligent tester is connected to the DLC3 with the ignition switch in the ON position, the cruise control DATA LIST can be displayed. Follow the prompts on the tester screen to access the DATA LIST.

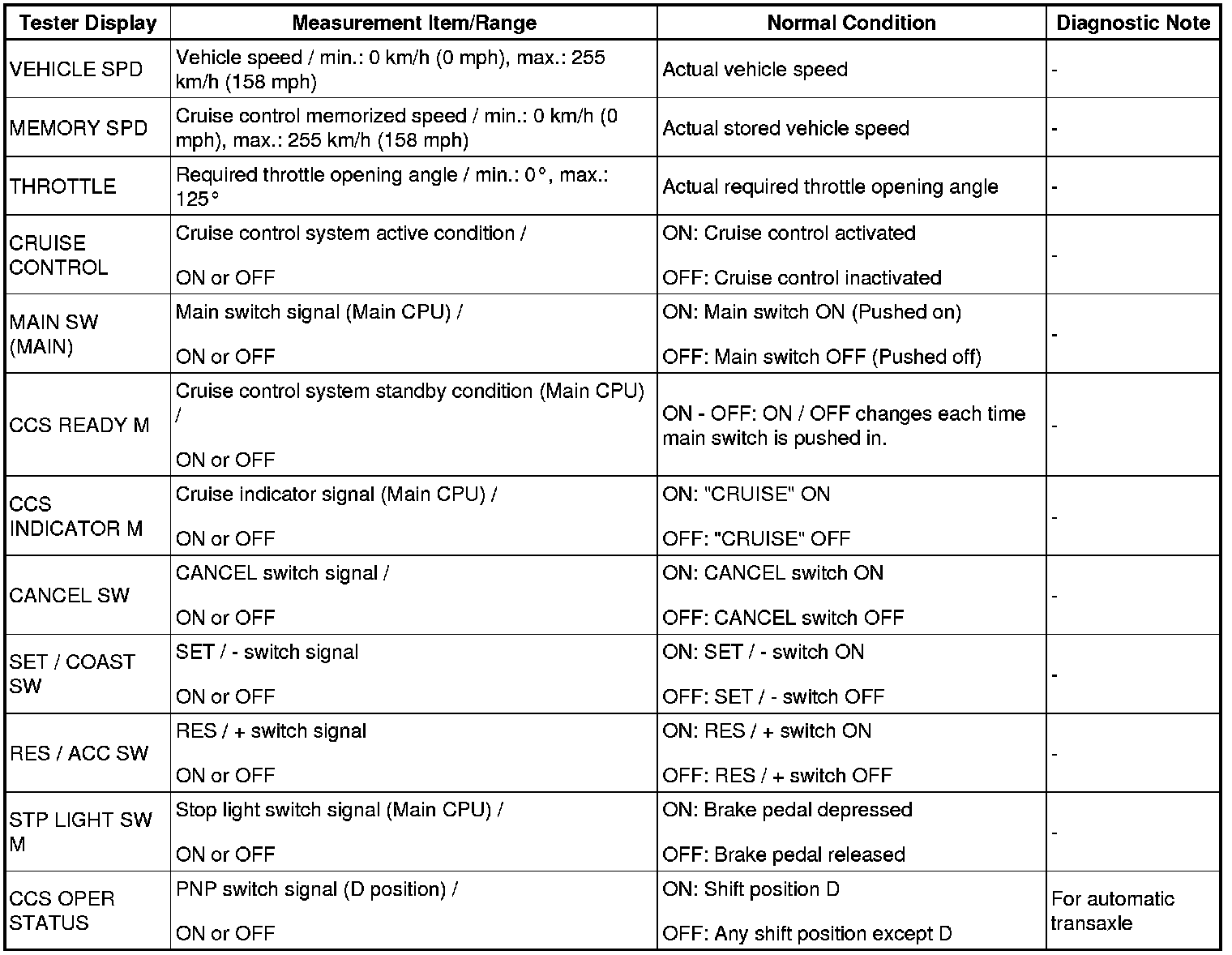

ECM (Cruise Control):
