Cruise Main Indicator Light Circuit

CRUISE CONTROL: CRUISE CONTROL SYSTEM: Cruise Main Indicator Light Circuit

Cruise Main Indicator Light Circuit

DESCRIPTION

When the cruise control main switch is turned off, the cruise control does not operate.

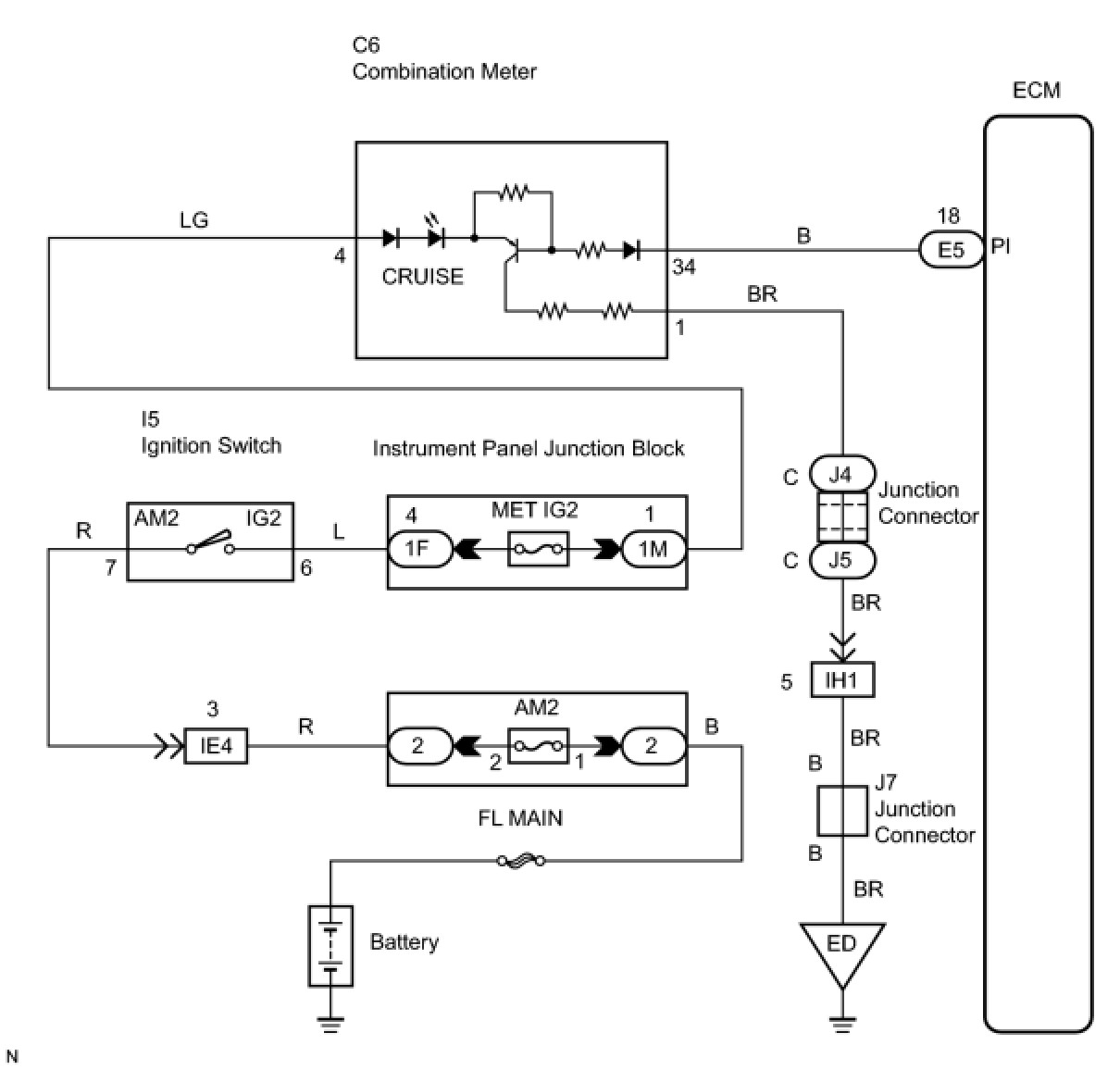

WIRING DIAGRAM





INSPECTION PROCEDURE

PROCEDURE

1. CHOOSE DIAGNOSIS METHOD

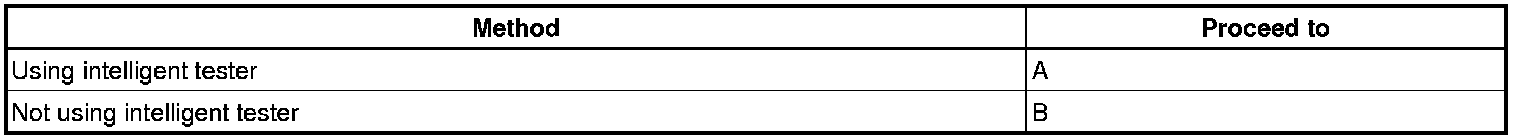

(a) Choose the diagnosis method.






B -- CHECK WIRE HARNESS (ECM - BATTERY)
A -- Continue to next step.
2. READ VALUE ON INTELLIGENT TESTER
(a) Connect the intelligent tester to the DLC3.
(b) Turn the ignition switch to the ON position and turn the intelligent tester main switch on.

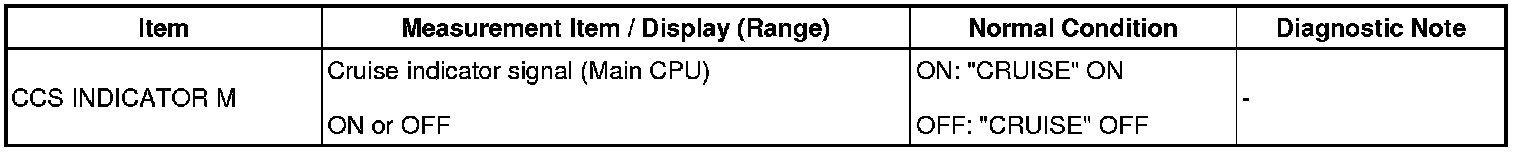

(c) Select the item below in the "DATA LIST", and read the display on the intelligent tester.
ECM (Cruise Control):






OK:
When the cruise control main switch is operated, the display changes as shown above.
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.
3. CHECK WIRE HARNESS (ECM - BATTERY)

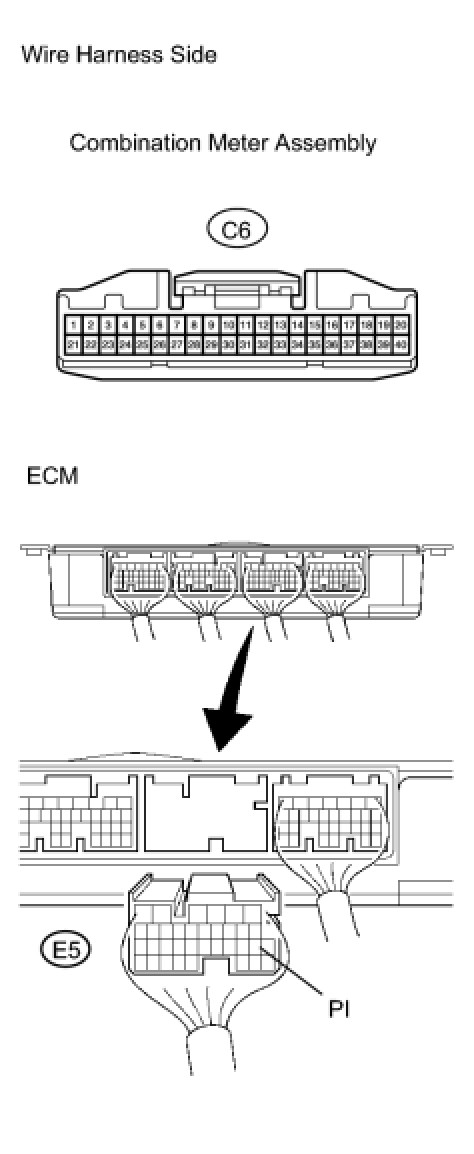

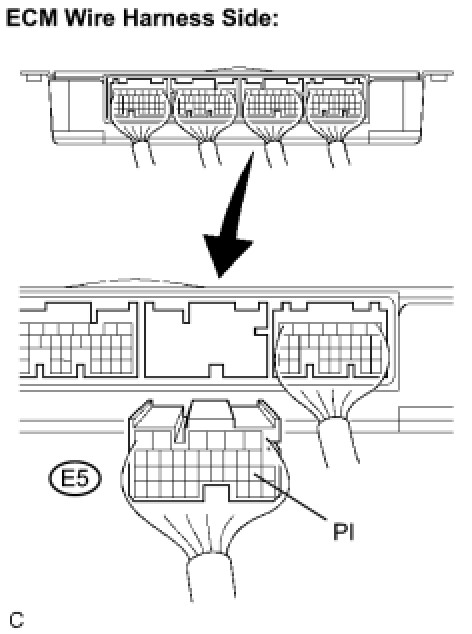

(a) Disconnect the E5 connector from the ECM.
(b) Turn the ignition switch to the ON position.

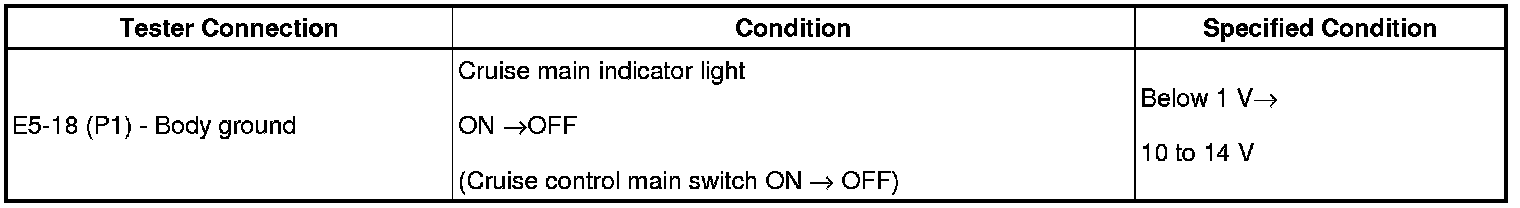

(c) Measure the voltage according to the value(s) in the table below.
Standard voltage:






OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
NG -- Continue to next step.
4. INSPECT COMBINATION METER ASSEMBLY

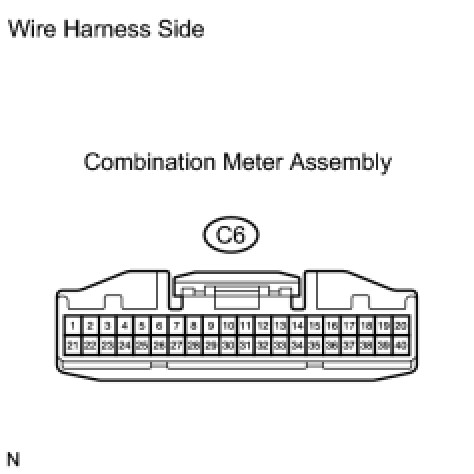

(a) Disconnect the C6 combination meter connector.

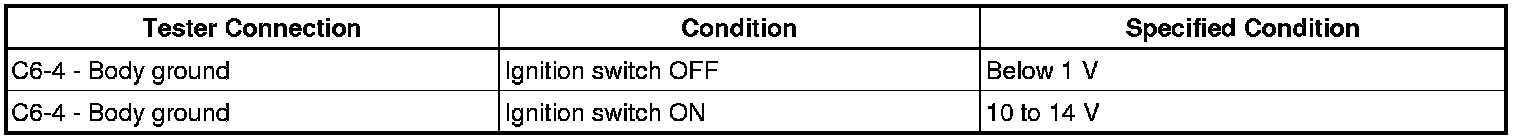

(b) Measure the voltage according to the value(s) in the table below.
Standard voltage:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR (COMBINATION METER-BATTERY)
OK -- Continue to next step.
5. CHECK WIRE HARNESS (COMBINATION METER - ECM AND BODY GROUND)

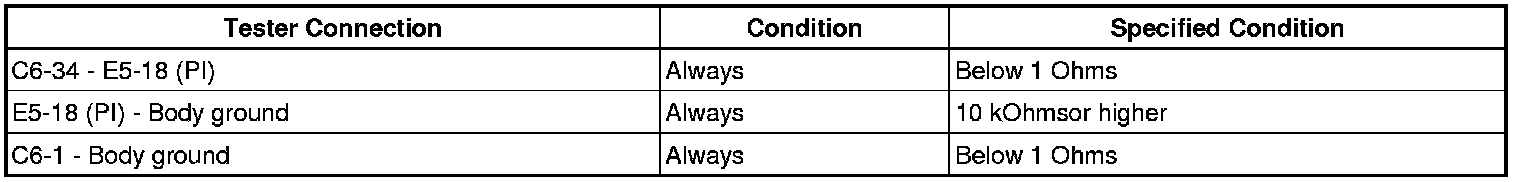

(a) Measure the resistance according to the value(s) in the table below.
Standard resistance:






NG -- REPAIR OR REPLACE HARNESS AND CONNECTOR
OK -- PROCEED TO NEXT CIRCUIT INSPECTION SHOWN IN PROBLEM SYMPTOMS TABLE
