PARKING BRAKE: PARKING BRAKE CABLE: INSTALLATION
INSTALLATION
HINT: For the No. 2 parking brake cable, employ the same procedures as for the No.3 parking brake cable.
1. INSTALL NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the parking brake cable to the parking brake cable equalizer.

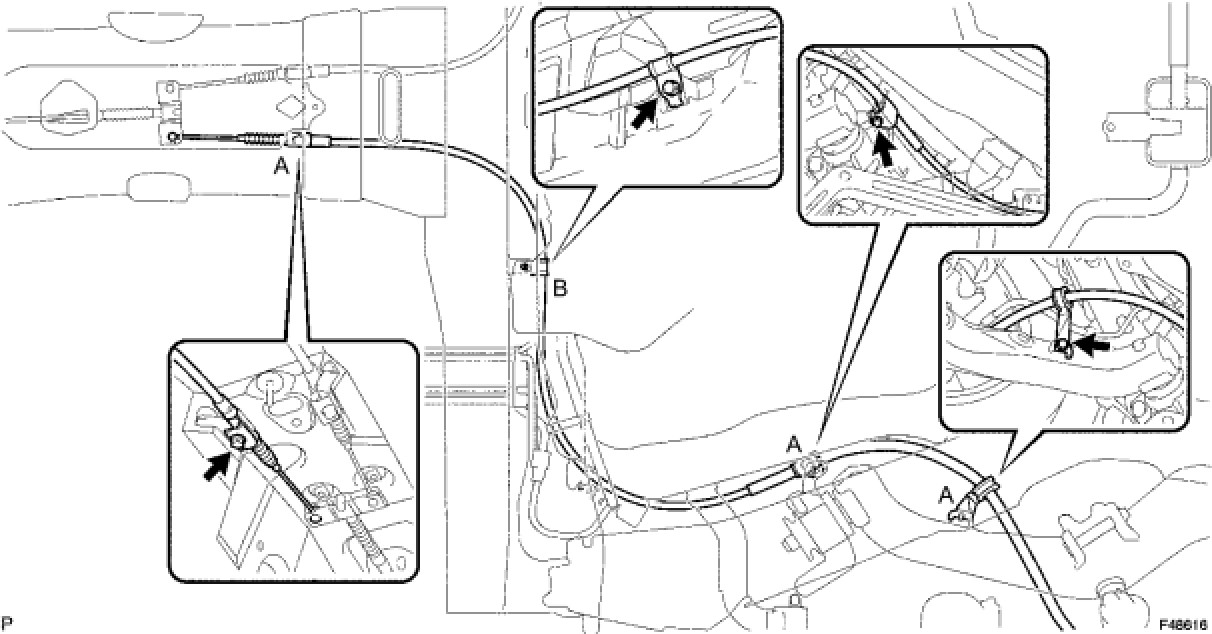

(b) Install the parking brake cable with the 4 bolts.
Torque: 6.0 Nm (61 kgf-cm, 53 in-lbf) for bolt A
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf) for bolt B
2. INSTALL NO. 1 FUEL TANK PROTECTOR
(a) Install the fuel tank protector with the 5 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
3. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY
(a) Connect the parking brake cable to the backing plate with the bolt.
Torque: 8.0 Nm (82 kgf-cm, 71 in-lbf)
4. APPLY HIGH TEMPERATURE GREASE Reassembly
5. INSTALL PARKING BRAKE SHOE LEVER LH Reassembly
6. INSTALL PARKING BRAKE SHOE ASSEMBLY LH Reassembly
7. INSTALL PARKING BRAKE SHOE ADJUSTING SCREW SET Reassembly
8. INSTALL PARKING BRAKE SHOE STRUT LH Reassembly
9. INSTALL REAR DISC Installation
10. INSTALL REAR DISC BRAKE CYLINDER MOUNTING LH WITH REAR DISC BRAKE CYLINDER ASSEMBLY LH
(a) Install the disc brake cylinder mounting with brake cylinder Installation.
11. ADJUST PARKING BRAKE SHOE CLEARANCE Installation
12. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
13. INSTALL NO. 1 PARKING BRAKE CABLE ASSEMBLY
(a) Install the parking brake cable with the 2 bolts.
Torque: 12.5 Nm (128 kgf-cm, 9 ft-lbf)
(b) Install the floor carpet.
(c) Connect the parking brake cable to the parking brake equalizer and install the parking brake cable.
14. INSTALL PARKING BRAKE CABLE HEAT INSULATOR
(a) Install he heat insulator with the 2 nuts.
Torque: 5.4 Nm (55 kgf-cm, 48 in-lbf)
15. INSTALL CENTER EXHAUST PIPE ASSEMBLY Installation
16. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY Installation
17. INSTALL FRONT SEAT ASSEMBLY RH
(a) Install the front seat Installation.
18. INSTALL COWL SIDE TRIM SUB-ASSEMBLY RH Installation
19. INSTALL FRONT DOOR SCUFF PLATE RH Installation
20. INSTALL REAR CONSOLE BOX ASSEMBLY Installation
21. INSTALL REAR UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
22. INSTALL FRONT UPPER CONSOLE PANEL SUB-ASSEMBLY Installation
23. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle) Installation
24. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.
25. CHECK ABS SENSOR SIGNAL CHECK
(a) Check the sensor signal check Diagnosis System.
26. SETTLING PARKING BRAKE SHOE AND DISC Installation
27. CHECK PARKING BRAKE LEVER TRAVEL Adjustments
28. ADJUST PARKING BRAKE LEVER TRAVEL Adjustments
29. INSPECT FOR EXHAUST GAS LEAK
