Installation

BRAKE CONTROL: SKID CONTROL SENSOR: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.

1. INSTALL SKID CONTROL SENSOR





(a) Wipe off sealant attached to the skid control sensor's fitting surface with white gasoline.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

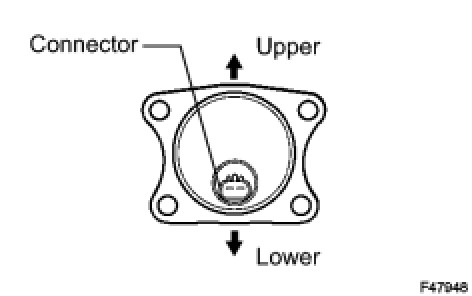

(b) Install a new skid control sensor to the rear axle hub and bearing assembly. The skid control sensor connector should be placed in the lowest position.
HINT: The rear axle hub and bearing assembly should be placed with the narrow side facing the lower side.





(c) Using SST and a press, press the skid control sensor so that it becomes flat with the rear axle hub and bearing assembly.
SST: 09214-76011

NOTE:
- Do not use a hammer on the skid control sensor.
- Check that there is no foreign matter such as iron chips on the sensor's detection portion.
- Slowly press the skid control sensor in straight.

2. INSTALL REAR AXLE HUB AND BEARING Installation

3. INSTALL REAR DISC Installation

4. INSTALL REAR DISC BRAKE CYLINDER MOUNTING WITH REAR DISC BRAKE CYLINDER ASSEMBLY Installation

5. CONNECT SKID CONTROL SENSOR WIRE Installation

6. INSTALL REAR WHEEL
Torque: 103 Nm (1,050 kgf-cm, 76 ft-lbf)
7. CHECK AND ADJUST REAR WHEEL ALIGNMENT
(a) Check and adjust the rear wheel alignment Rear Wheel Alignment.
8. CABLE TO NEGATIVE BATTERY TERMINAL BATTERY
NOTE: When disconnecting the cable, some systems need to be initialized after the cable is reconnected Testing and Inspection.

9. CHECK ABS SPEED SENSOR SIGNAL
(a) Check the ABS speed sensor signal Diagnosis System.
