Removal

SLIDING ROOF: SLIDING ROOF SWITCH ASSEMBLY: REMOVAL

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

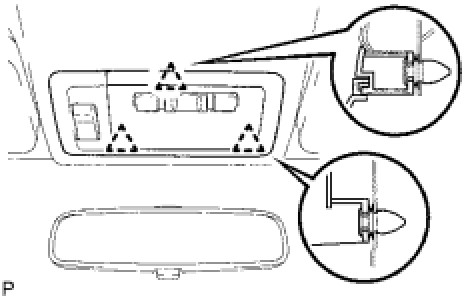

2. REMOVE MAP LIGHT ASSEMBLY
(a) Using a clip remover, detach the 3 clips and remove the light.
(b) Disconnect the map light connector.
