Removal

DOOR LOCK: TRANSMITTER BATTERY: REMOVAL

REMOVAL

1. REMOVE TRANSMITTER HOUSING COVER
NOTE: Take extra care when handling these precision electronic components.

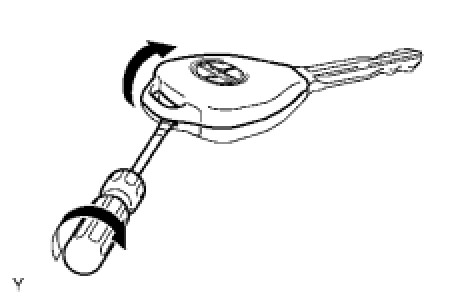

(a) Using a screwdriver, pry apart the transmitter cover.
NOTE: Do not forcibly pry apart the cover.
HINT: Tape the screwdriver tip before use.

2. REMOVE DOOR CONTROL TRANSMITTER MODULE

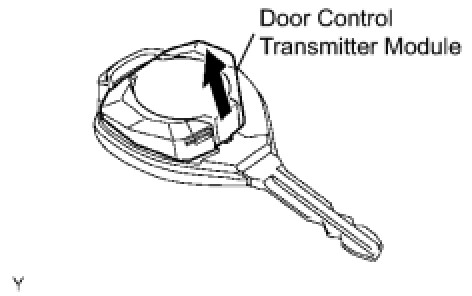

(a) Remove the door control transmitter module from the case.

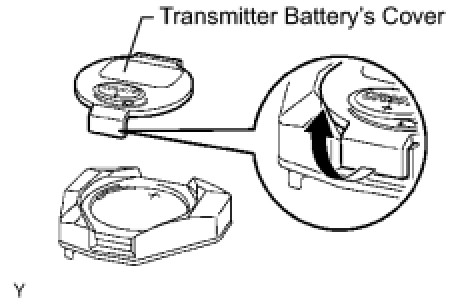

(b) Disengage the hook of the transmitter battery's cover and remove the cover.
3. REMOVE BATTERY

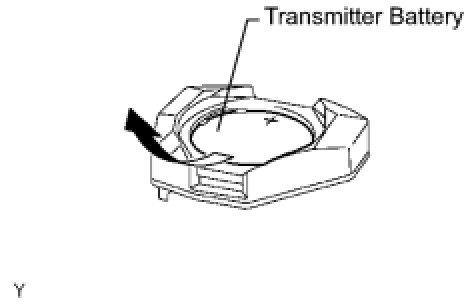

(a) Remove the battery (lithium battery).

NOTE:
- Do not push the terminals with your finger.
- Do not forcibly pry up the battery (lithium battery). The terminals may become damaged.
- Do not touch the battery with wet hands. Water may cause rust.
- Do not touch or move any components inside the transmitter, as it may cease to work.
