Installation

DOOR LOCK: TRANSMITTER BATTERY: INSTALLATION

INSTALLATION

1. INSTALL TRANSMITTER BATTERY

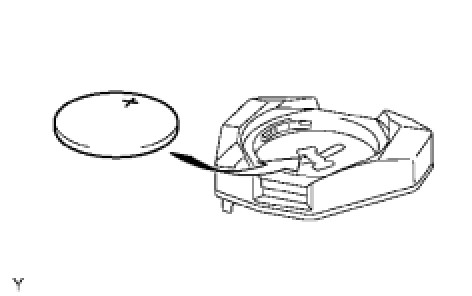

(a) Install a new battery (lithium battery) with the positive (+) side up, as shown in the illustration.

NOTE:
- Be sure that the positive (+) side and the negative (-) side of the transmitter battery are matched up correctly.
- Be careful not to bend the transmitter battery electrode during insertion.
- Keep the transmitter cover interior free of dust and oil.

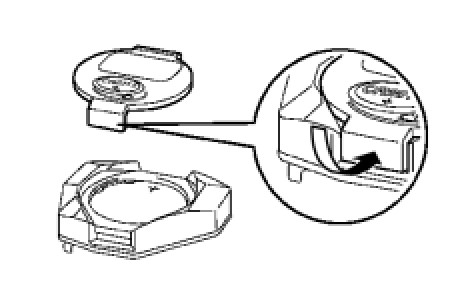

(b) Attach the hook of the transmitter battery's cover and install the cover.
2. INSTALL DOOR CONTROL TRANSMITTER MODULE

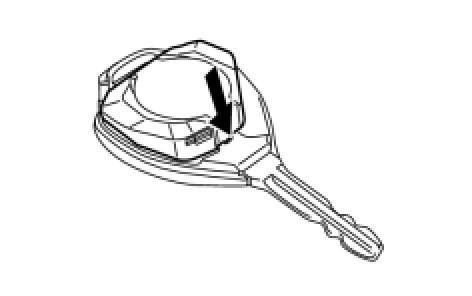

(a) Install the door control transmitter module to the case.
3. INSTALL TRANSMITTER HOUSING COVER

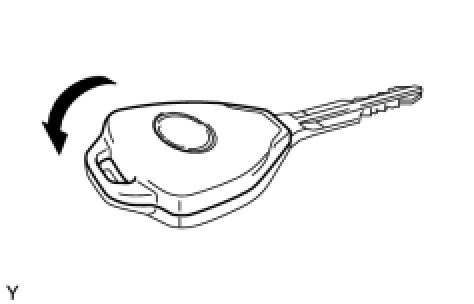

(a) Install the transmitter housing cover.
(b) Check that the transmitter's LED illuminates 3 times when the switch is pressed 3 times.
OK:
Transmitter's LED illuminates 3 times when switch is pressed 3 times.
