Disassembly

INSTRUMENT PANEL: REAR CONSOLE BOX: DISASSEMBLY

DISASSEMBLY

1. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY (w/ Sliding Roof)






(a) Remove the 2 screws.

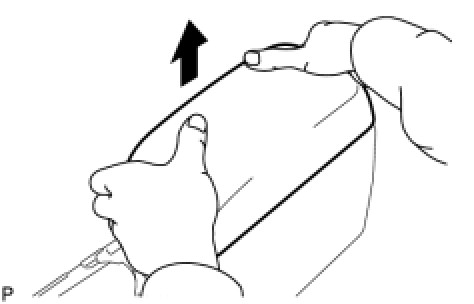

(b) Remove the console compartment door sub-assembly as shown in the illustration.
2. REMOVE CONSOLE COMPARTMENT DOOR SUB-ASSEMBLY (w/ Roof Window Glass)






(a) Remove the 2 screws.






(b) Remove the console compartment door sub-assembly as shown in the illustration.

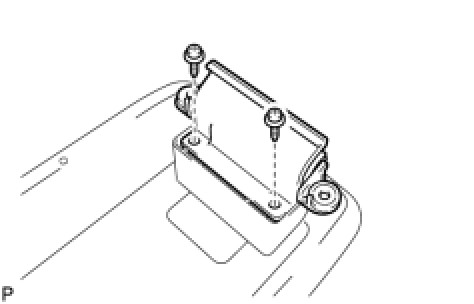

3. REMOVE CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY (w/ Sliding Roof)






(a) Remove the 2 screws and the console compartment door hinge sub-assembly.

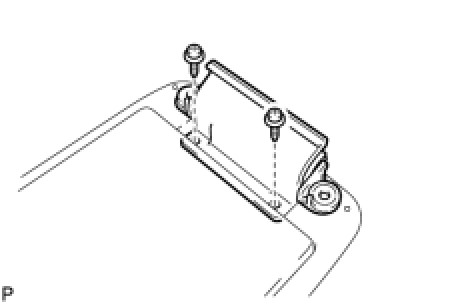

4. REMOVE CONSOLE COMPARTMENT DOOR HINGE SUB-ASSEMBLY (w/ Roof Window Glass)






(a) Remove the 2 screws and the console compartment door hinge sub-assembly.
5. REMOVE BOX BOTTOM MAT (w/ Sliding Roof)






(a) Remove the box bottom mat.
6. REMOVE OUTER CONSOLE COMPARTMENT DOOR (w/ Sliding Roof)






(a) Remove the 2 screws and outer console compartment door.
7. REMOVE NO. 1 CONSOLE COMPARTMENT DOOR STOPPER (w/ Sliding Roof)






(a) Disengage the claw and remove the No. 1 console compartment door stopper.
8. REMOVE NO. 2 CONSOLE COMPARTMENT DOOR STOPPER (w/ Sliding Roof)






(a) Disengage the claw and remove the No. 2 console compartment door stopper.
9. REMOVE INNER CONSOLE COMPARTMENT DOOR (w/ Sliding Roof)






(a) Remove the 4 screws and inner console compartment door.
10. REMOVE CONSOLE COMPARTMENT DOOR LOCK PIN (w/ Sliding Roof)
11. REMOVE CONSOLE COMPARTMENT DOOR LOCK BASE (w/ Sliding Roof)
12. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Sliding Roof)






(a) Remove the 2 screws and remove the console compartment door lock sub-assembly.
13. REMOVE CONSOLE COMPARTMENT DOOR LOCK SUB-ASSEMBLY (w/ Roof Window Glass)






(a) Remove the 2 screws and remove the console compartment door lock sub-assembly.
14. REMOVE CONSOLE COMPARTMENT DOOR CUSHION (w/ Roof Window Glass)






(a) Remove the 2 console compartment door cushions.
15. REMOVE CONSOLE BOX WIRE






(a) Disconnect each connector and remove the console box wire.
16. REMOVE NO. 2 STEREO JACK ADAPTER ASSEMBLY Removal

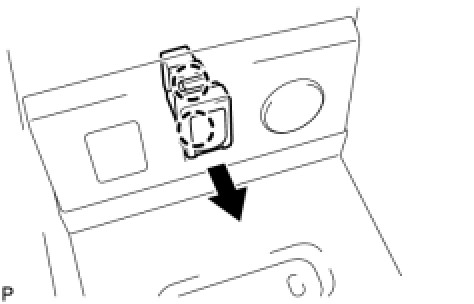

17. REMOVE NO. 1 STEREO JACK ADAPTER ASSEMBLY






(a) Remove the 2 claws and No. 1 stereo jack adapter assembly.
18. REMOVE POWER POINT SOCKET ASSEMBLY (w/ Sliding Roof) Removal

19. REMOVE POWER OUTLET SOCKET COVER (w/ Sliding Roof)
(a) Disengage the 2 claws and remove the power outlet socket cover.
