Installation

ENGINE HOOD / DOOR: BACK DOOR SUPPORT: INSTALLATION

INSTALLATION
HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed below are for the LH side.

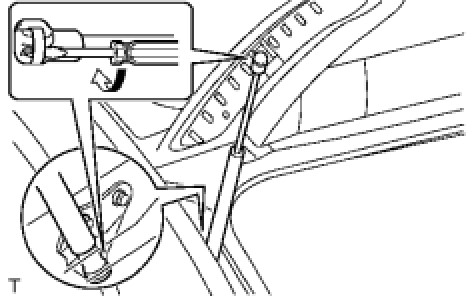

1. INSTALL BACK DOOR STAY ASSEMBLY LH
(a) Install the stay with the 2 stop rings.
