ENGINE HOOD / DOOR: BACK DOOR: REASSEMBLY

REASSEMBLY
HINT: A bolt without a torque specification is shown in the standard bolt chart Standard Bolt - Specified Torque For Standard Bolts.





1. INSTALL BACK DOOR LOCK ASSEMBLY
(a) Install the lock with the 3 bolts.
(b) Connect the connector and clamp.
Torque: 8.0 Nm (82 kgf-cm, 70 in-lbf)






2. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET LH
(a) Install the bracket with the 2 bolts.
Torque: 7.5 Nm (77 kgf-cm, 66 in-lbf)
3. INSTALL BACK DOOR UPPER DAMPER STAY BRACKET RH
(a) Install the bracket with the 2 bolts.
Torque: 7.5 Nm (77 kgf-cm, 66 in-lbf)
4. INSTALL BACK DOOR STAY ASSEMBLY LH Installation

5. INSTALL BACK DOOR STAY ASSEMBLY RH Installation







6. INSTALL BACK DOOR LOWER STOPPER CUSHION
(a) Install the cushion with the 2 bolts.
Torque: 4.0 Nm (41 kgf-cm, 35 in-lbf)






7. INSTALL BACK DOOR STOPPER LOWER
(a) Install the stopper with the bolt.
Torque: 19.5 Nm (199 kgf-cm, 14.5 ft-lbf)
8. INSTALL LICENSE PLATE LIGHT ASSEMBLY Installation

9. INSTALL BACK DOOR GARNISH SUB-ASSEMBLY OUTSIDE

10. INSTALL CENTER STOP LIGHT ASSEMBLY Installation







11. INSTALL BACK DOOR TRIM BOARD ASSEMBLY
(a) Install the No. 2 service hole cover.
(b) Install the No. 1 service hole cover.

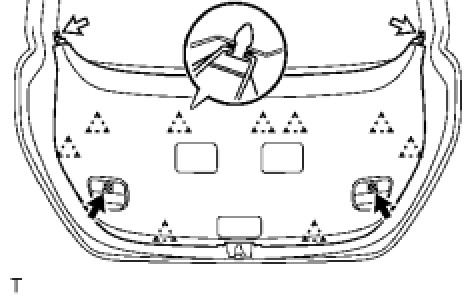

(c) Attach the 9 clips to install the trim board.
(d) Install the 2 clips indicated by the 2 white arrows in the illustration.
(e) Install the 2 screws indicated by the 2 black arrows in the illustration.

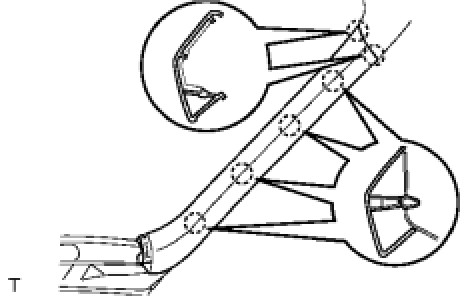

12. INSTALL BACK DOOR SIDE GARNISH LH
(a) Attach the 6 claws to install the garnish.
13. INSTALL BACK DOOR SIDE GARNISH RH
(a) Attach the 6 claws to install the garnish.

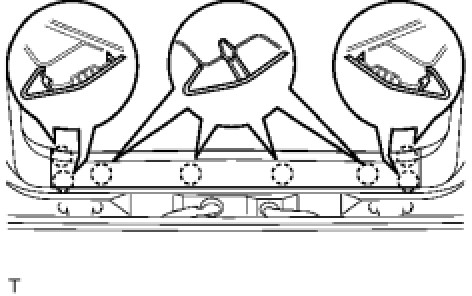

14. INSTALL BACK DOOR GARNISH CENTER
(a) Attach the 8 claws to install the garnish.
