Removal

AUDIO / VISUAL: LUGGAGE SPEAKER: REMOVAL

REMOVAL

1. REMOVE DECK BOARD SUB-ASSEMBLY
2. REMOVE BACK DOOR SCUFF PLATE Removal

3. REMOVE NO. 1 DECK BOARD Removal

4. REMOVE BOX SPEAKER ASSEMBLY






(a) Disconnect the connector.

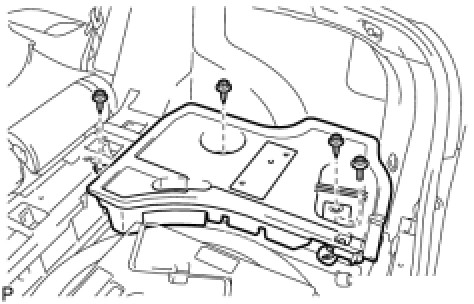

(b) Remove the 3 screws and the bolt.
(c) Remove the box speaker assembly.
