ABS (Antilock Brake System)

BRAKE CONTROL: ANTI-LOCK BRAKE SYSTEM: DIAGNOSTIC TROUBLE CODE CHART

DIAGNOSTIC TROUBLE CODE CHART
NOTE: When removing parts, turn the ignition switch OFF.
HINT:
- Using SST 09843-18040, connect terminals TC and CG of the DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU and ground points for poor contact.
- If a trouble code is displayed during the DTC check, check the circuit listed for that code. For details of each code, refer to the applicable Diagnostic Trouble Code Test."
- When two or more DTCs are recorded and the problem is not identified, perform circuit inspection of the other DTCs.

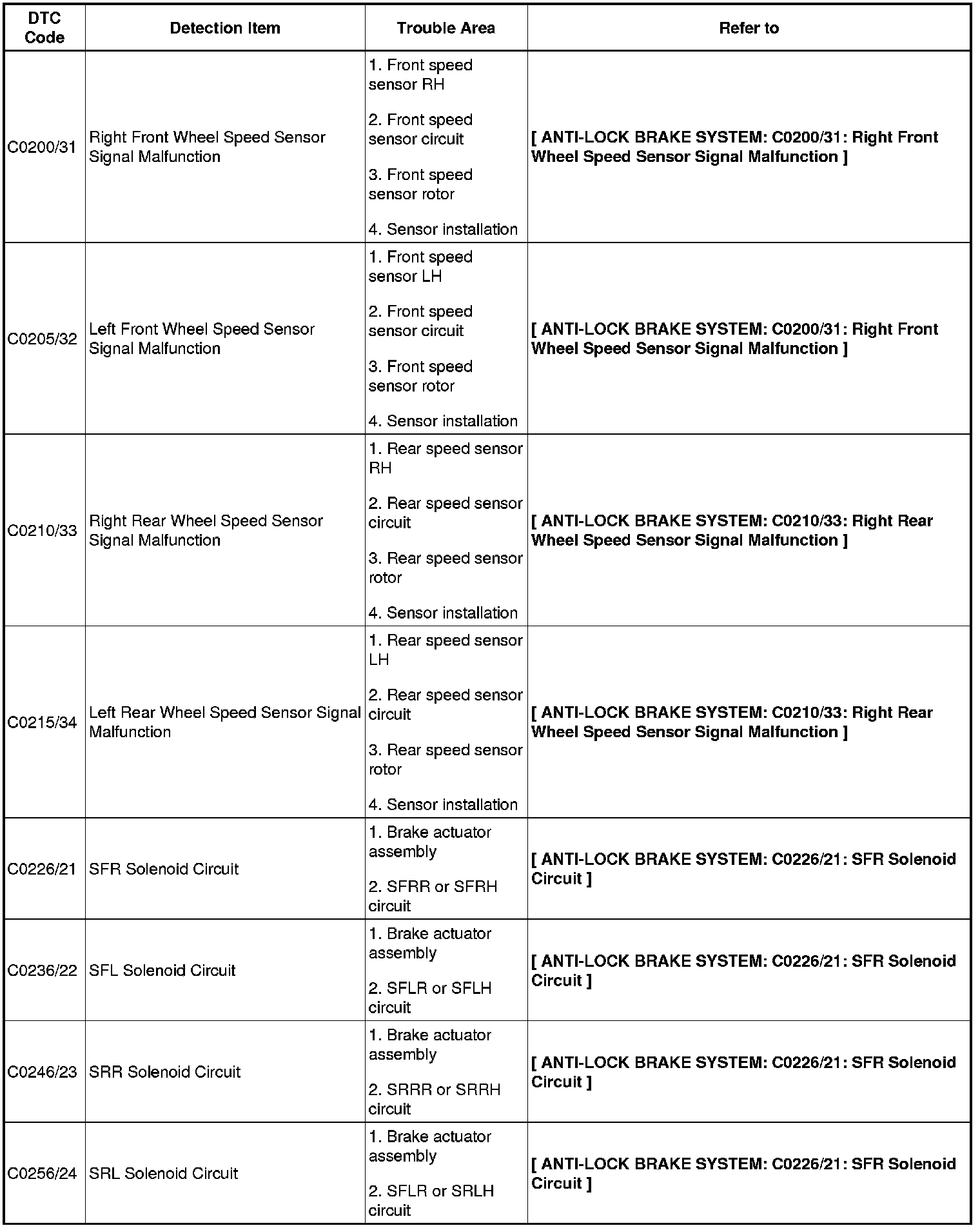

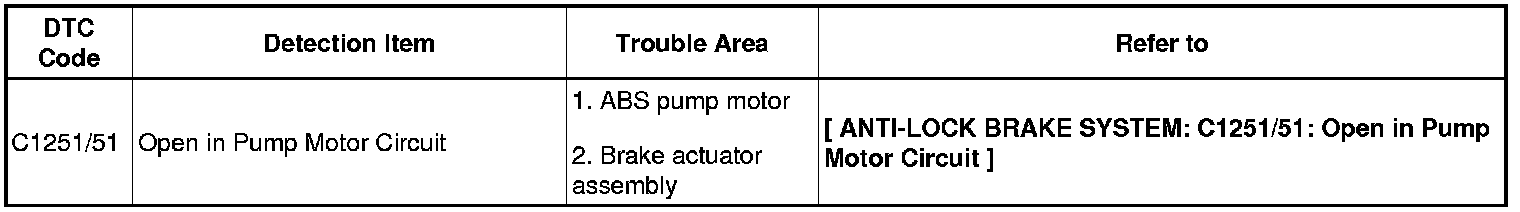

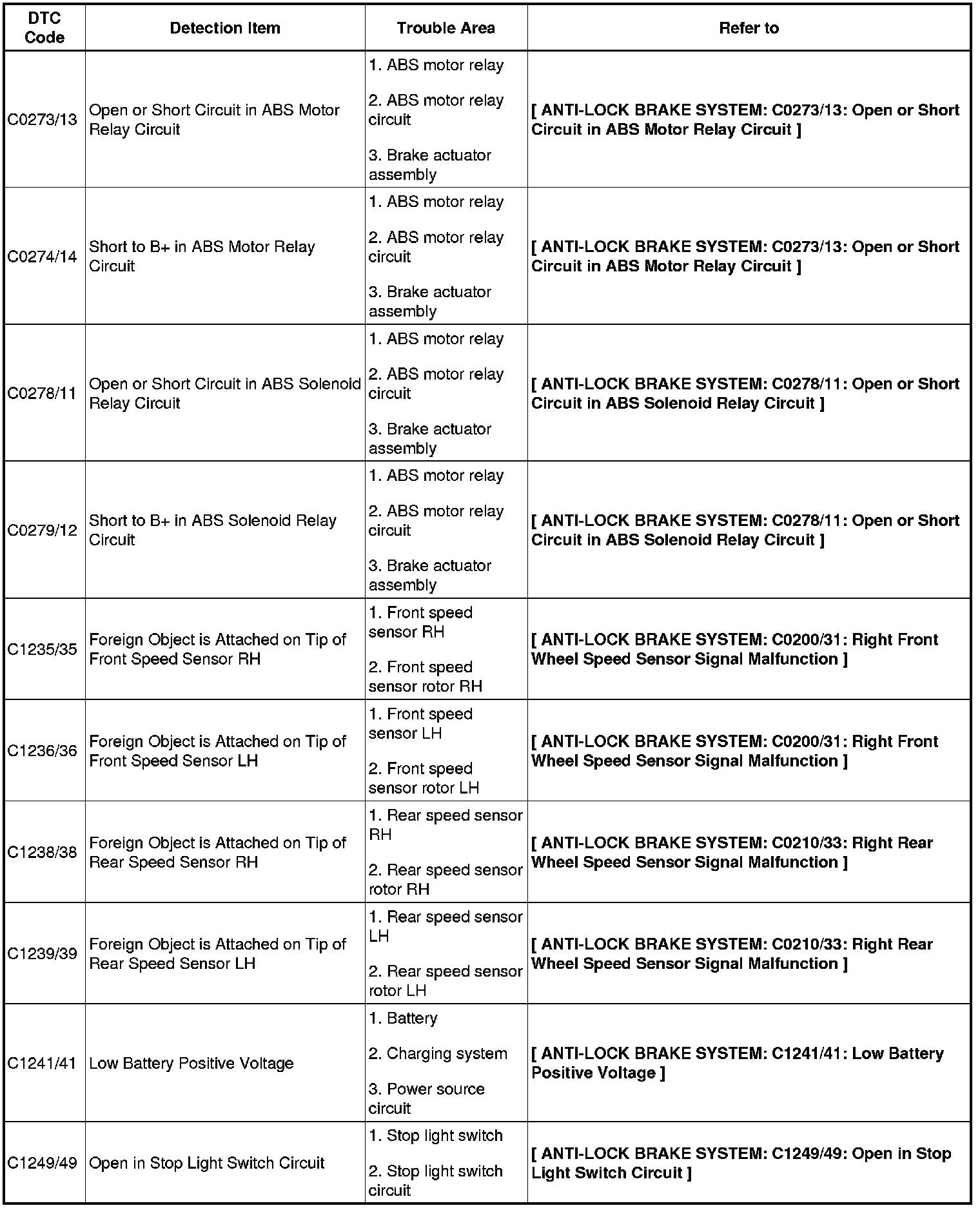

DTC chart of ABS:

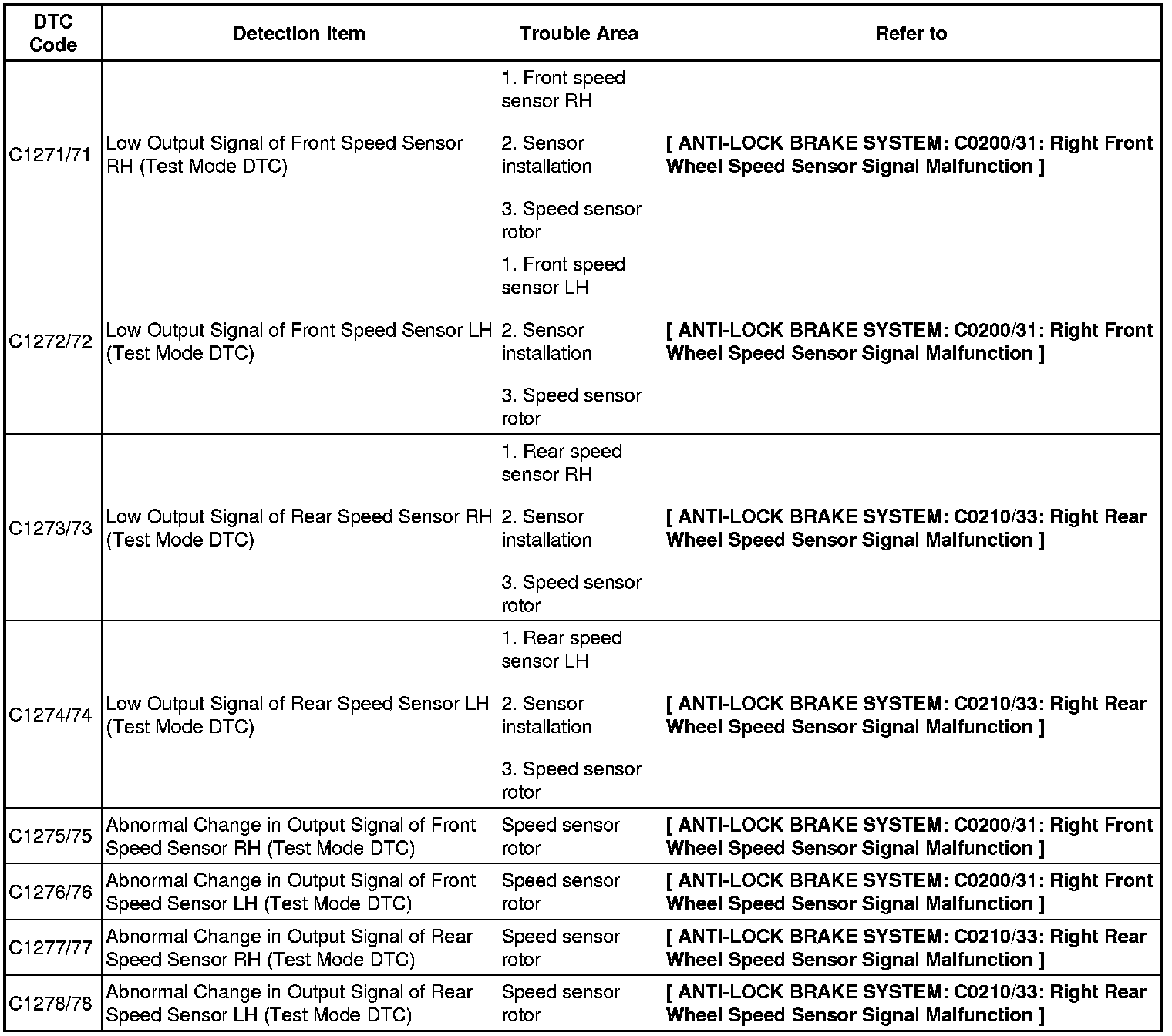

Test Mode DTC of ABS:
