Wiper Blade: Service and Repair

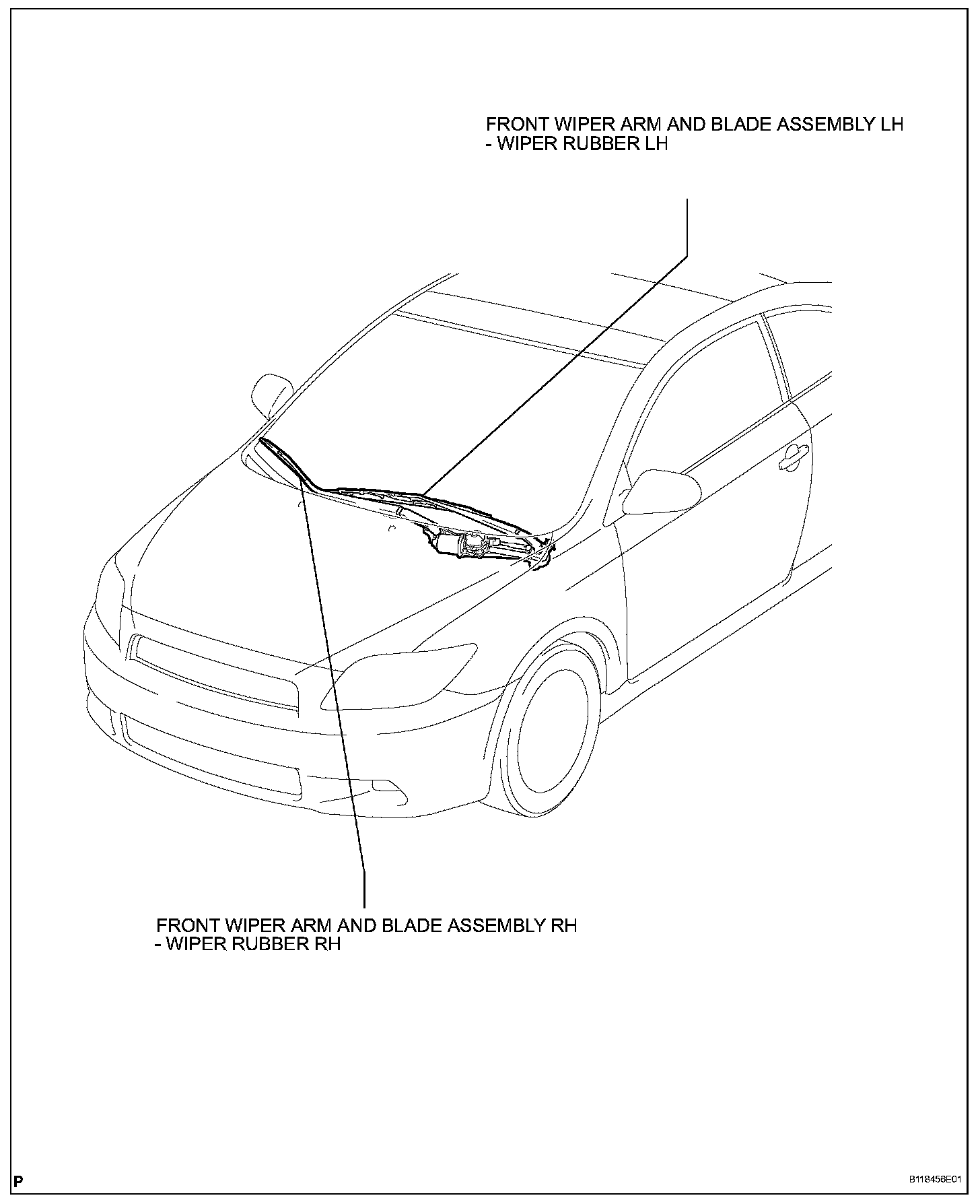

Front Wiper Rubber:

REMOVAL

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.

1. REMOVE FRONT WIPER BLADE LH
a. Remove the front wiper blade LH from the front wiper arm LH.

NOTE: Do not bend the front wiper arm with the front wiper blade LH removed, as the arm tip could damage the windshield surface.

2. REMOVE WIPER RUBBER LH
a. Remove the wiper rubber LH from the front wiper blade LH.
b. Remove the 2 wiper rubber backing plates from the wiper rubber LH.

INSTALLATION

HINT:
- Use the same procedures for the RH side and LH side.
- The procedures listed are for the LH side.




1. INSTALL WIPER RUBBER LH

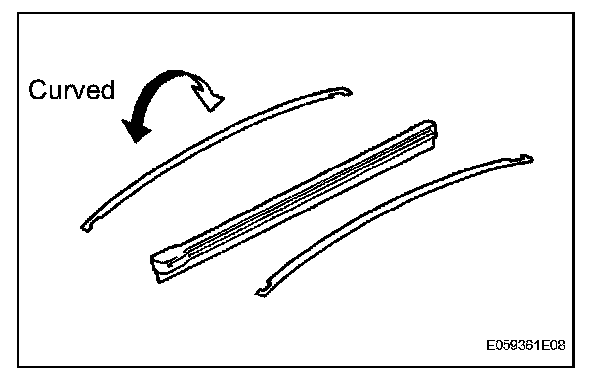

a. Install the 2 wiper rubber backing plates to the wiper rubber LH.

NOTE: Be sure to install the wiper rubber backing plates in the correct direction.




b. Install the wiper rubber LH so that the head part (longer side) of the wiper rubber faces the arm axle side.

2. INSTALL FRONT WIPER BLADE LH
a. Install the front wiper blade LH to the front wiper arm LH.
