Wiper and Washer Systems: Testing and Inspection

PROBLEM SYMPTOMS TABLE

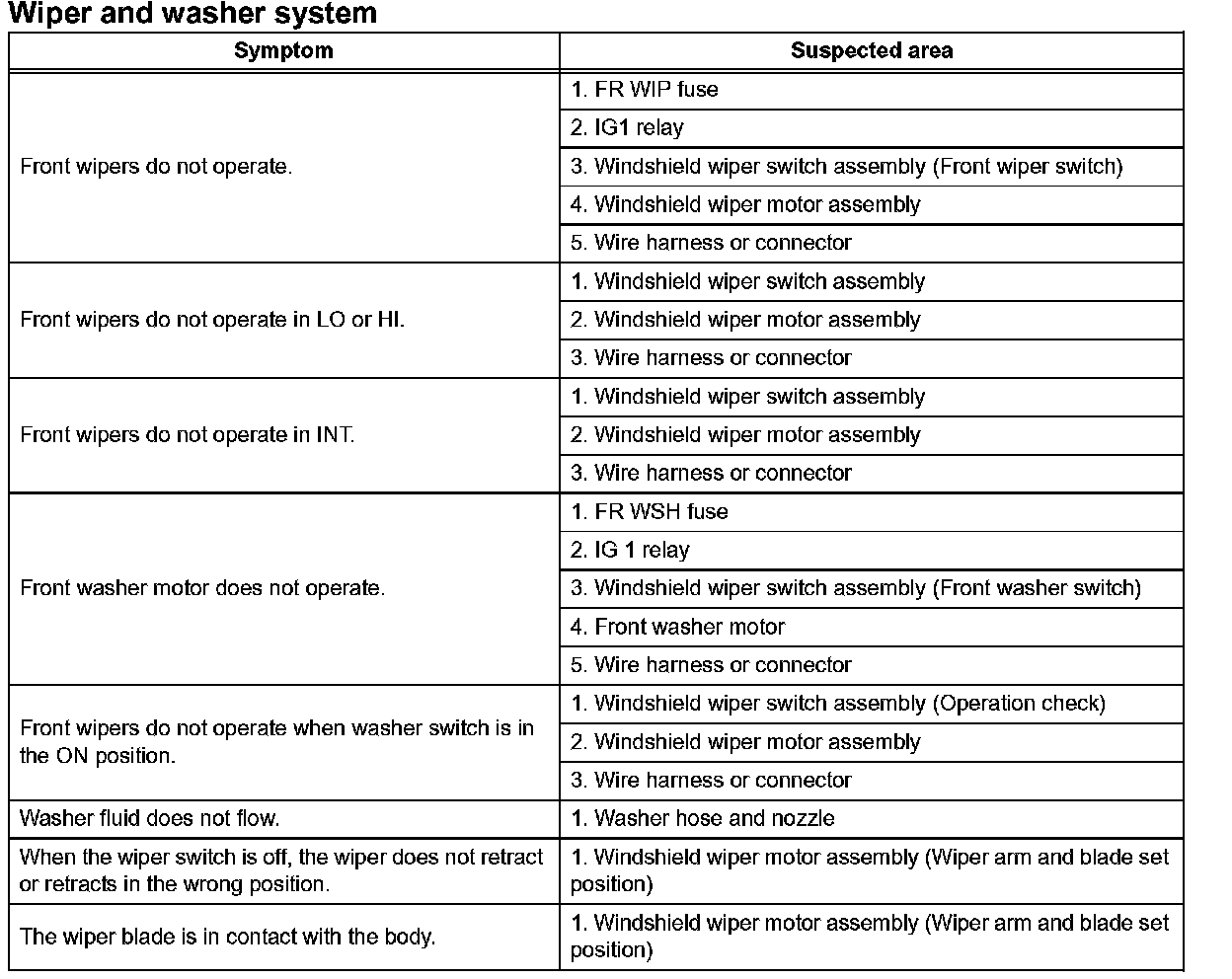

Problem Symptoms Table - Wiper And Washer System:

HINT: Use the table, with suspected areas listed in numerical order, to determine the cause of the problem. Inspect and repair or replace parts as necessary according to the steps.
