Power Window Master Switch Circuit

Power Window Master Switch Circuit

DESCRIPTION
This circuit transmits signals from the power window regulator master switch assembly to the power window regulator switch.

WIRING DIAGRAM

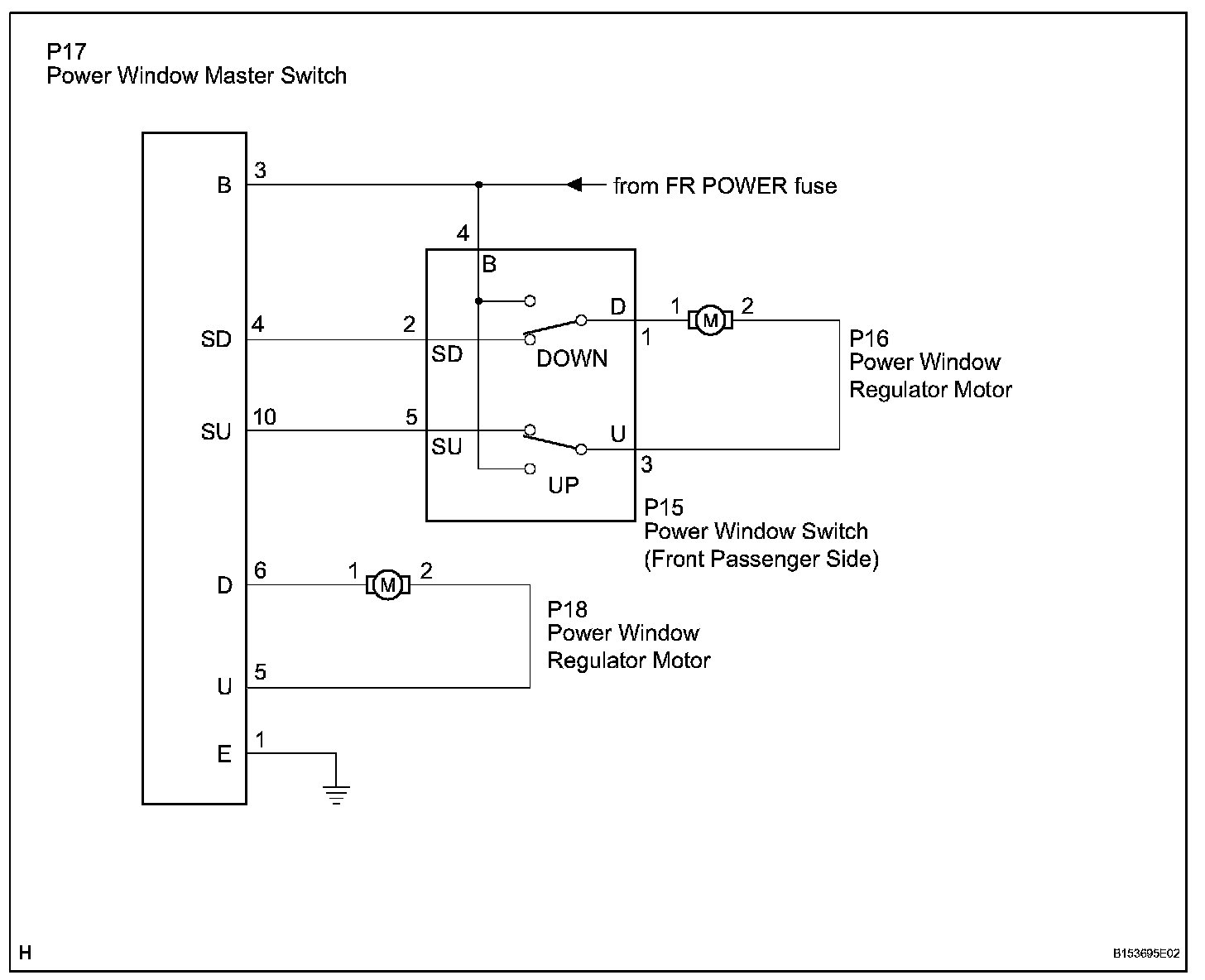

Wiring Diagram:






INSPECTION PROCEDURE

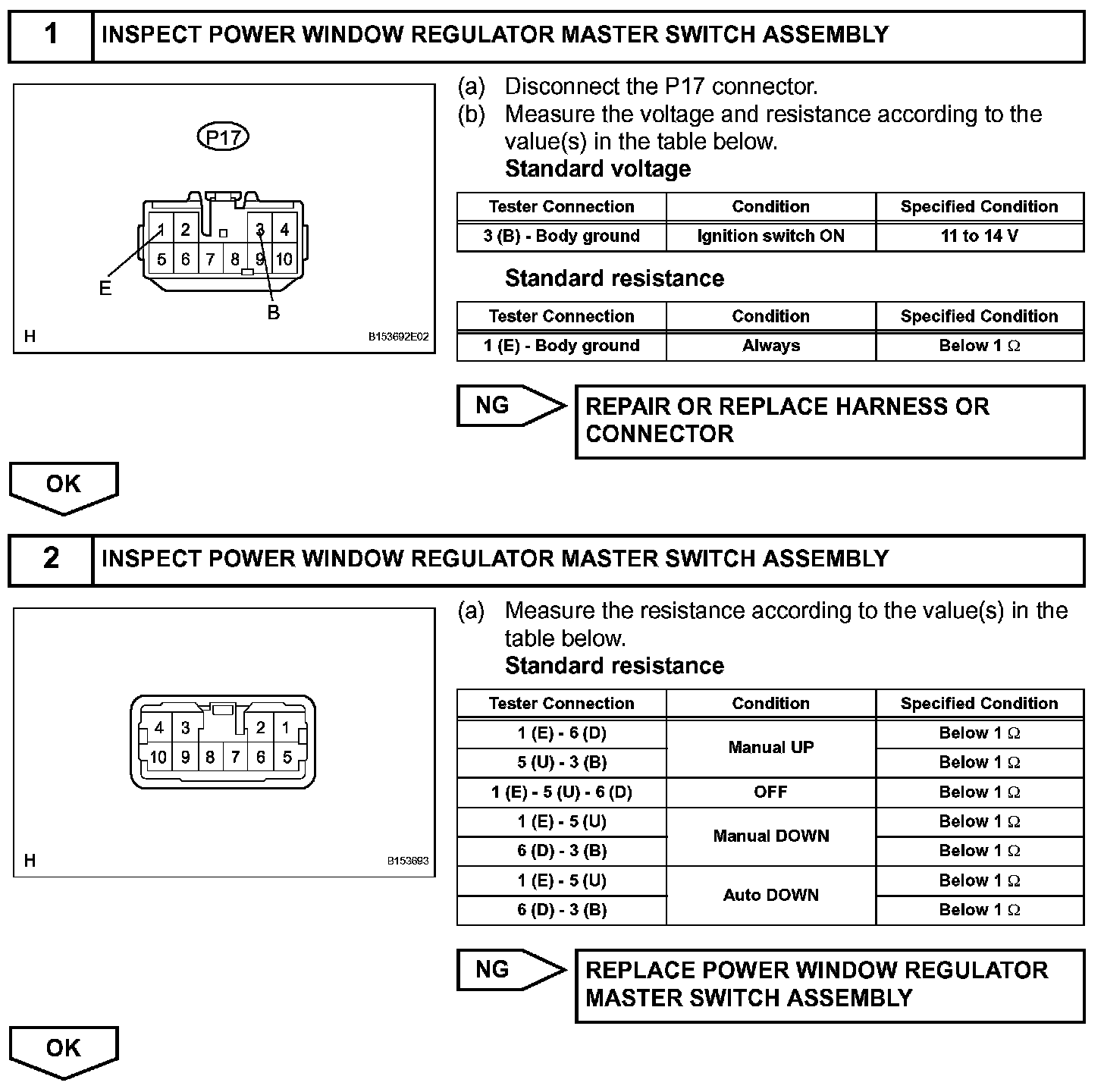

Step 1 - 2:

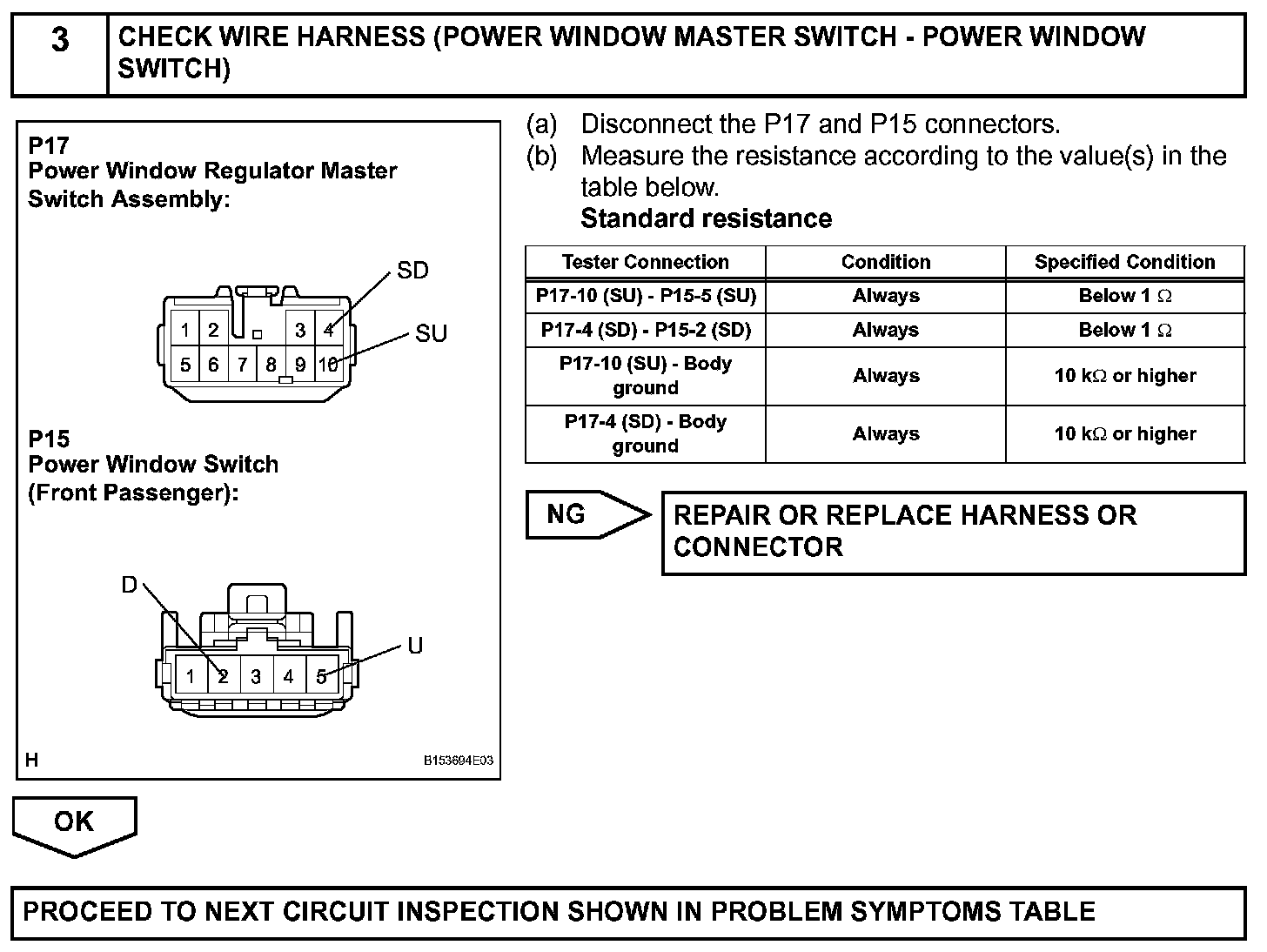

Step 3:
