Front Passenger Side Power Window Switch Power Source Circuit

Front Passenger Side Power Window Switch Power Source Circuit

DESCRIPTION
This circuit supplies power to operate the power window regulator switch assembly (Front RH).

WIRING DIAGRAM

Wiring Diagram:






INSPECTION PROCEDURE

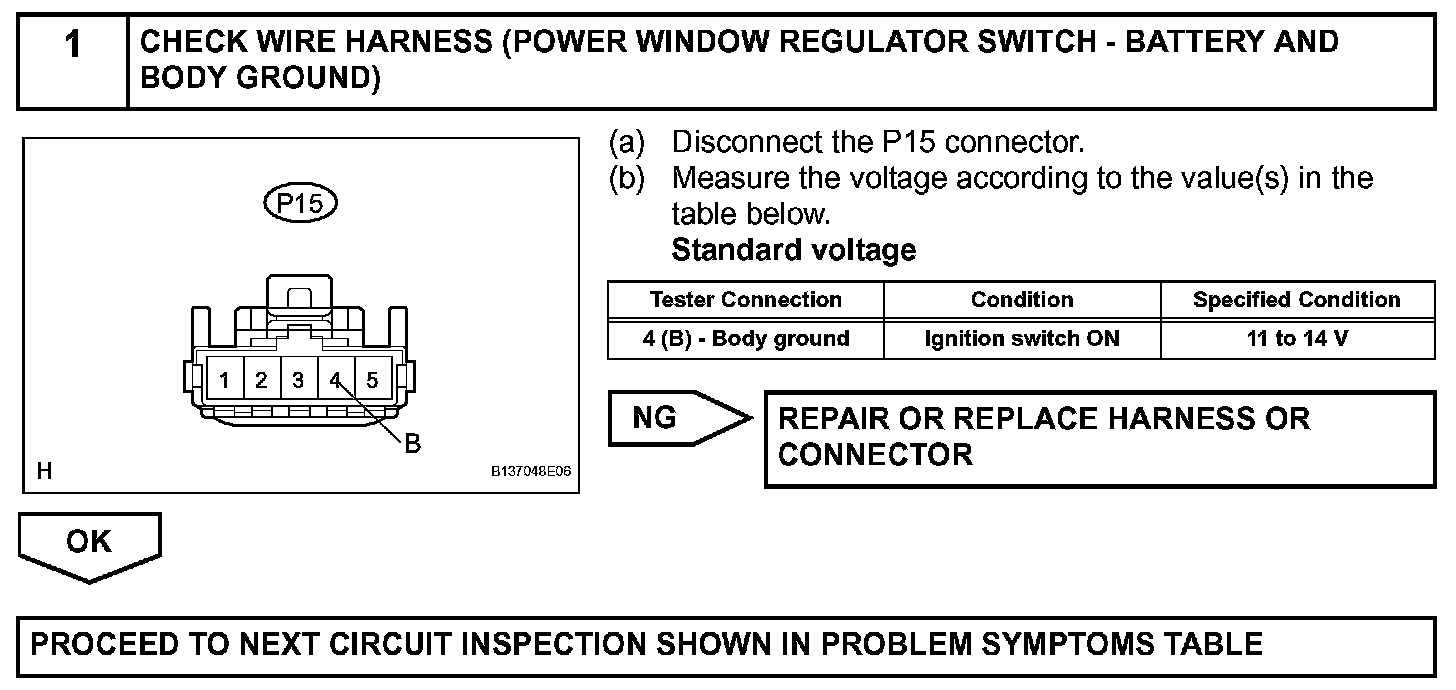

Step 1:
