Front Passenger Side Power Window Motor Circuit

Front Passenger Side Power Window Motor Circuit

DESCRIPTION
This circuit transmits signals from the power window regulator switch assembly (Front RH) to the power window regulator motor (Front RH).

WIRING DIAGRAM

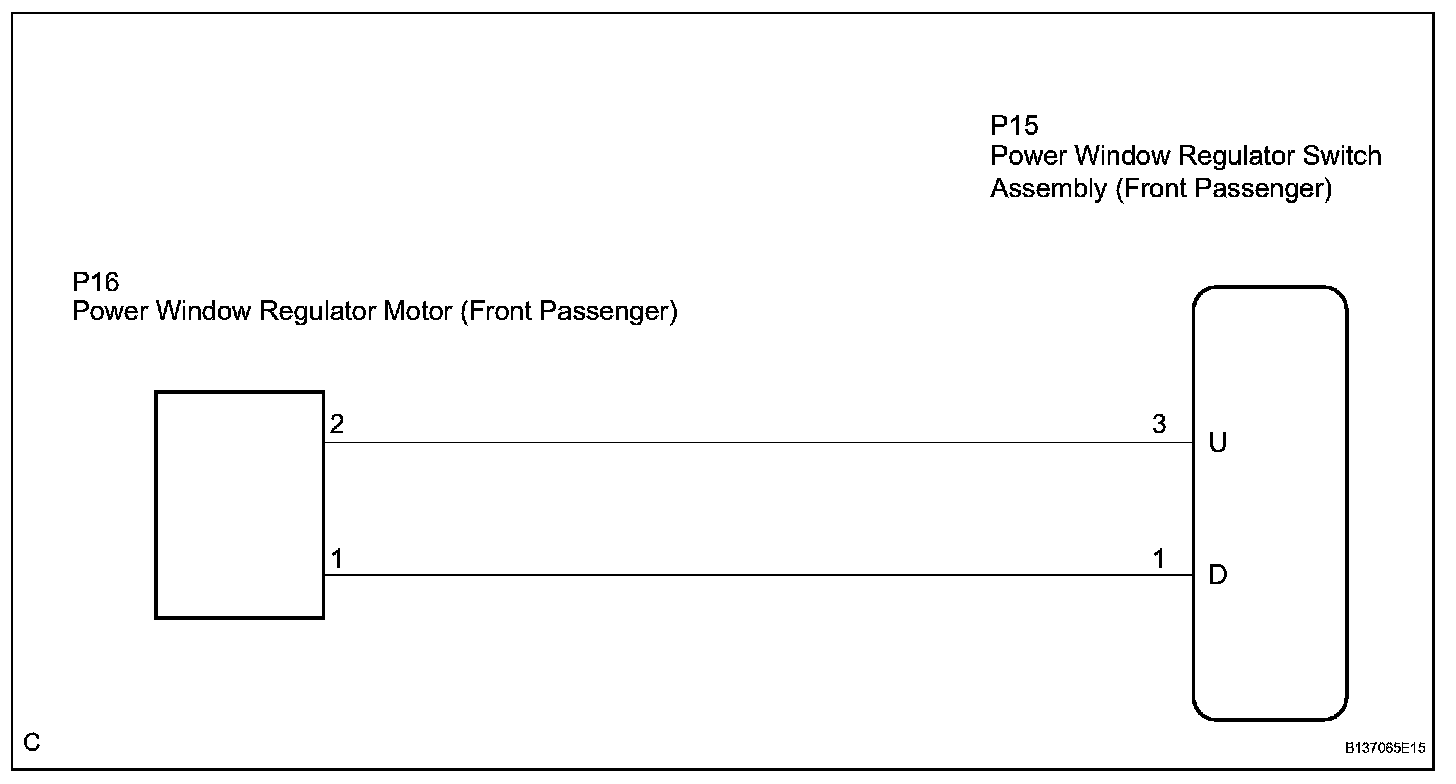

Wiring Diagram:






INSPECTION PROCEDURE

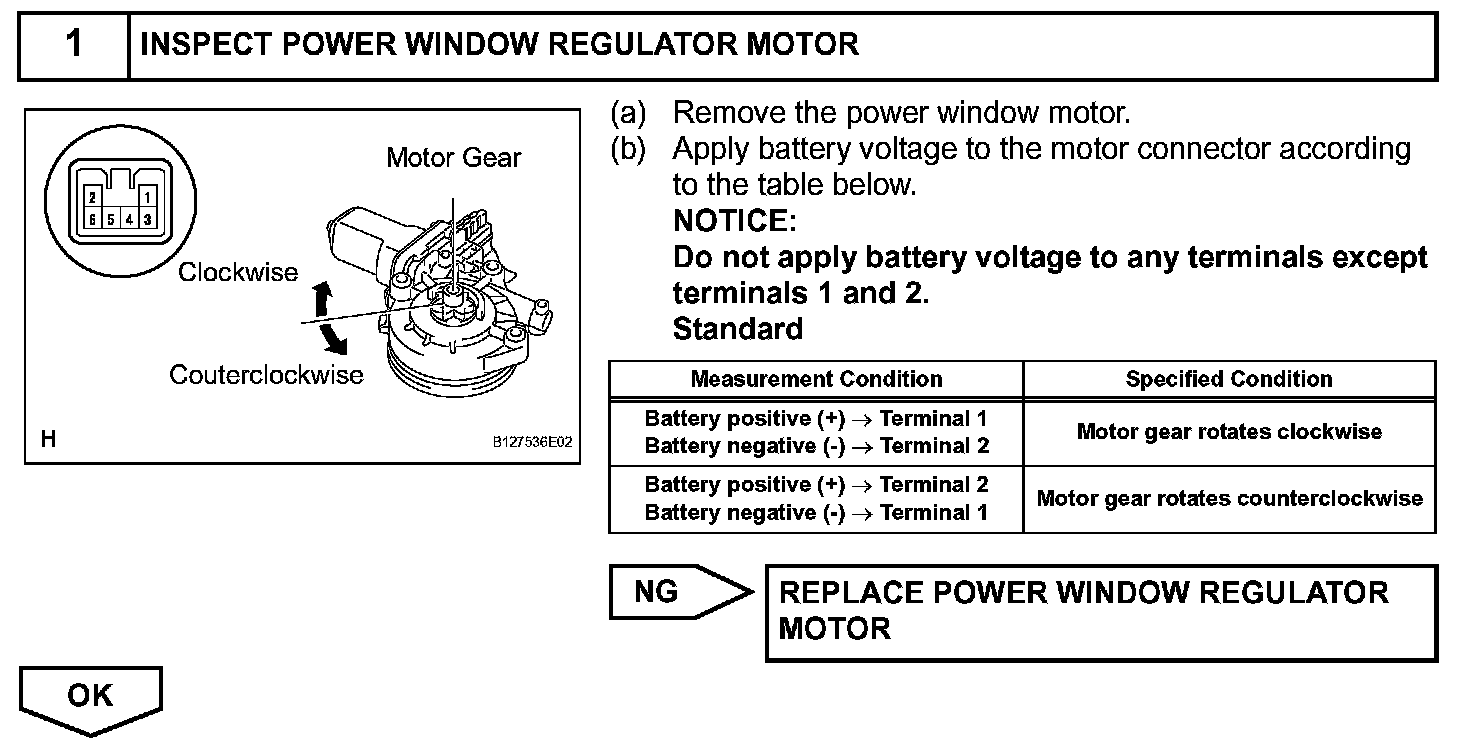

Step 1:




Step 2:
