Driver Side Power Window Motor Circuit

Driver Side Power Window Motor Circuit

DESCRIPTION
This circuit transmits signals from the power window regulator master switch assembly to the power window regulator motor (Front LH).

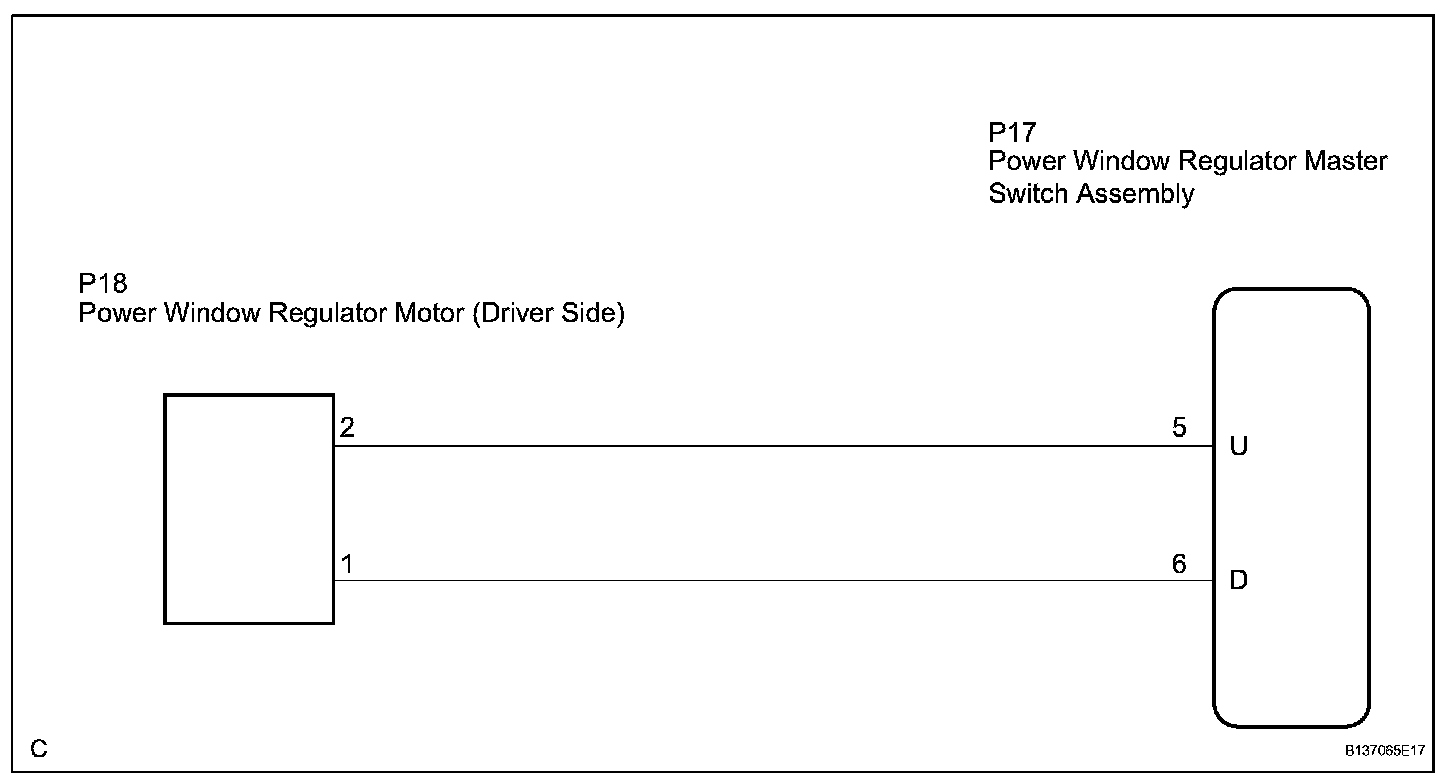

WIRING DIAGRAM

Wiring Diagram:






INSPECTION PROCEDURE

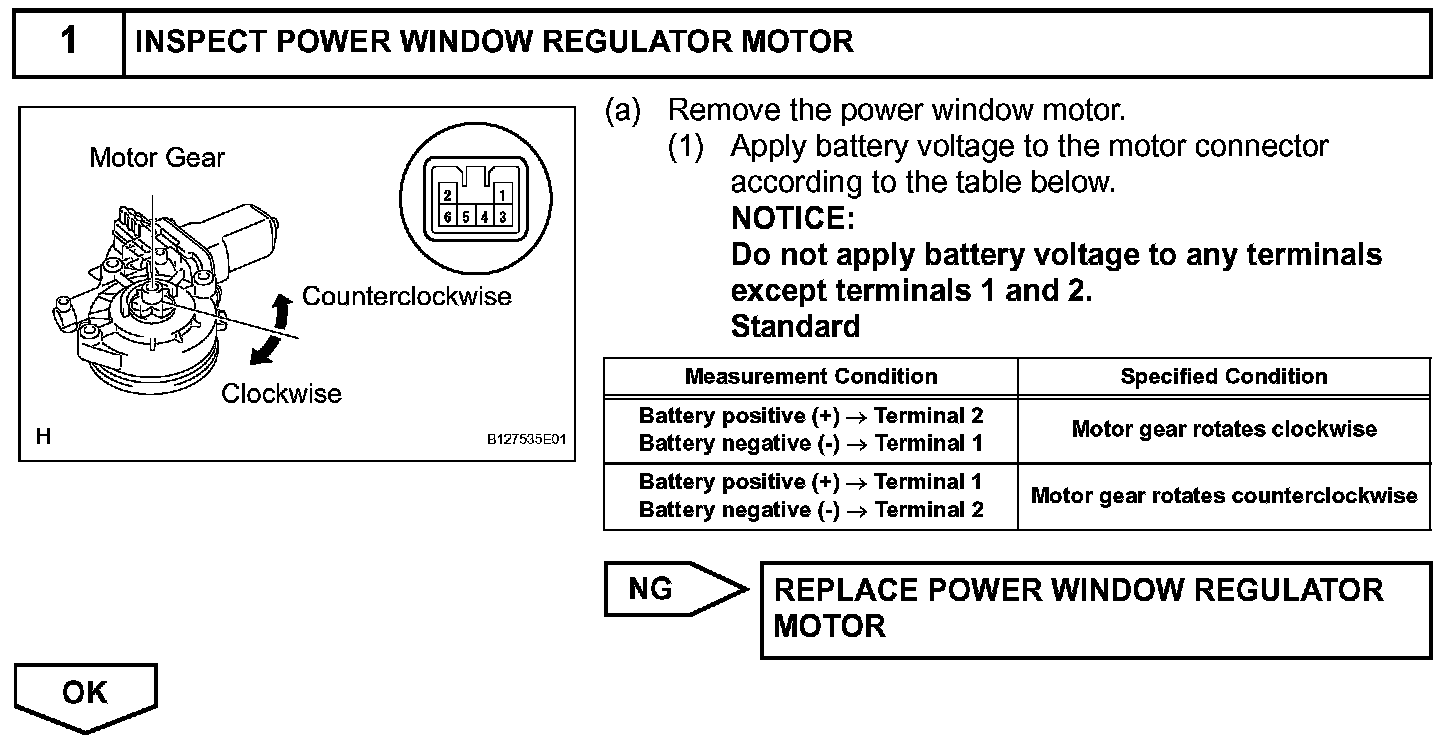

Step 1:

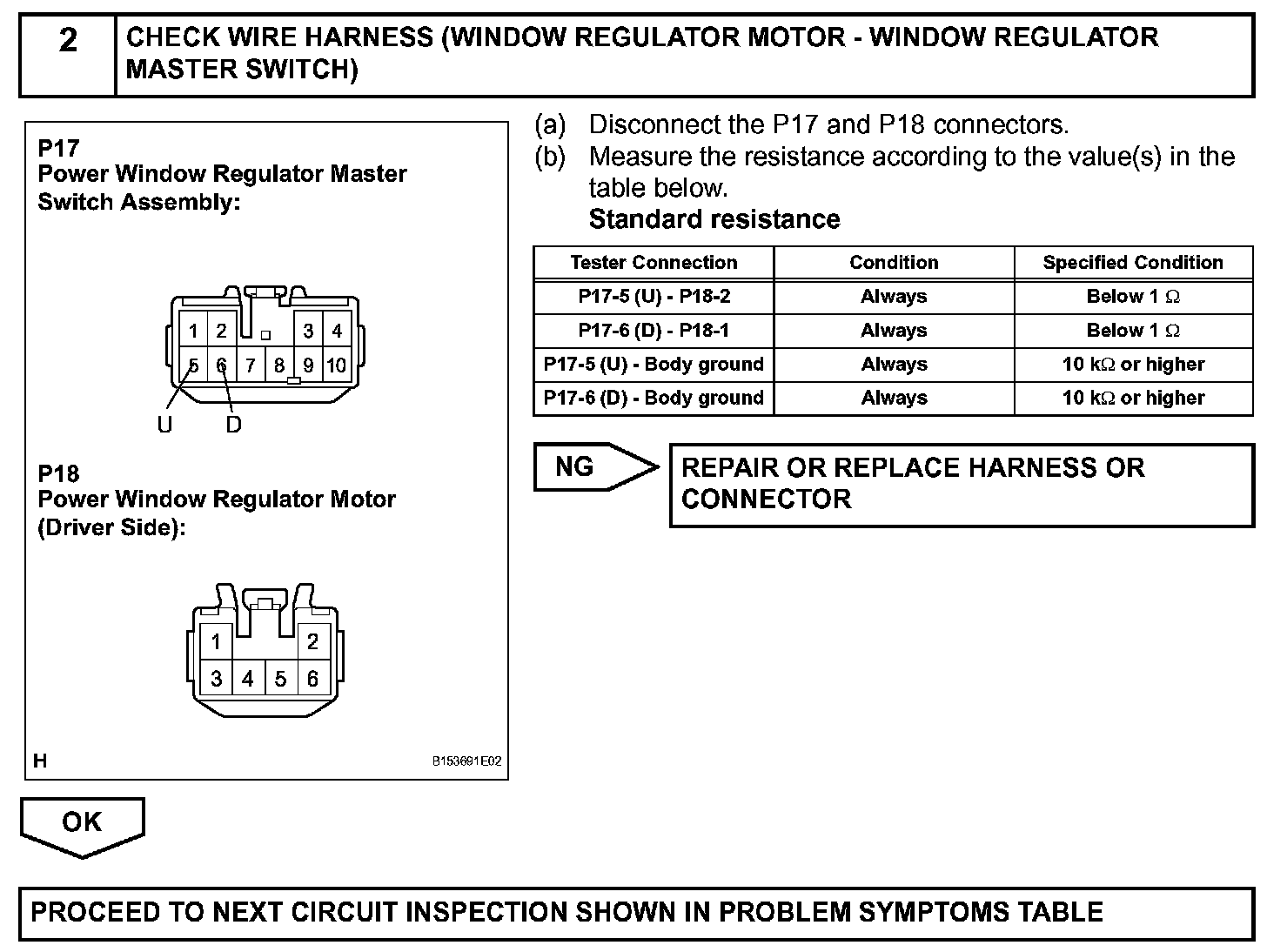

Step 2:
