Remote Up / Down Function Does Not Operate

Remote Up / Down Function does not Operate

DESCRIPTION
Operating the passenger side power window switch on the power window regulator master switch inputs a remote signal to the power window regulator switch. Then, the power window regulator switch drives the passenger side window motor.

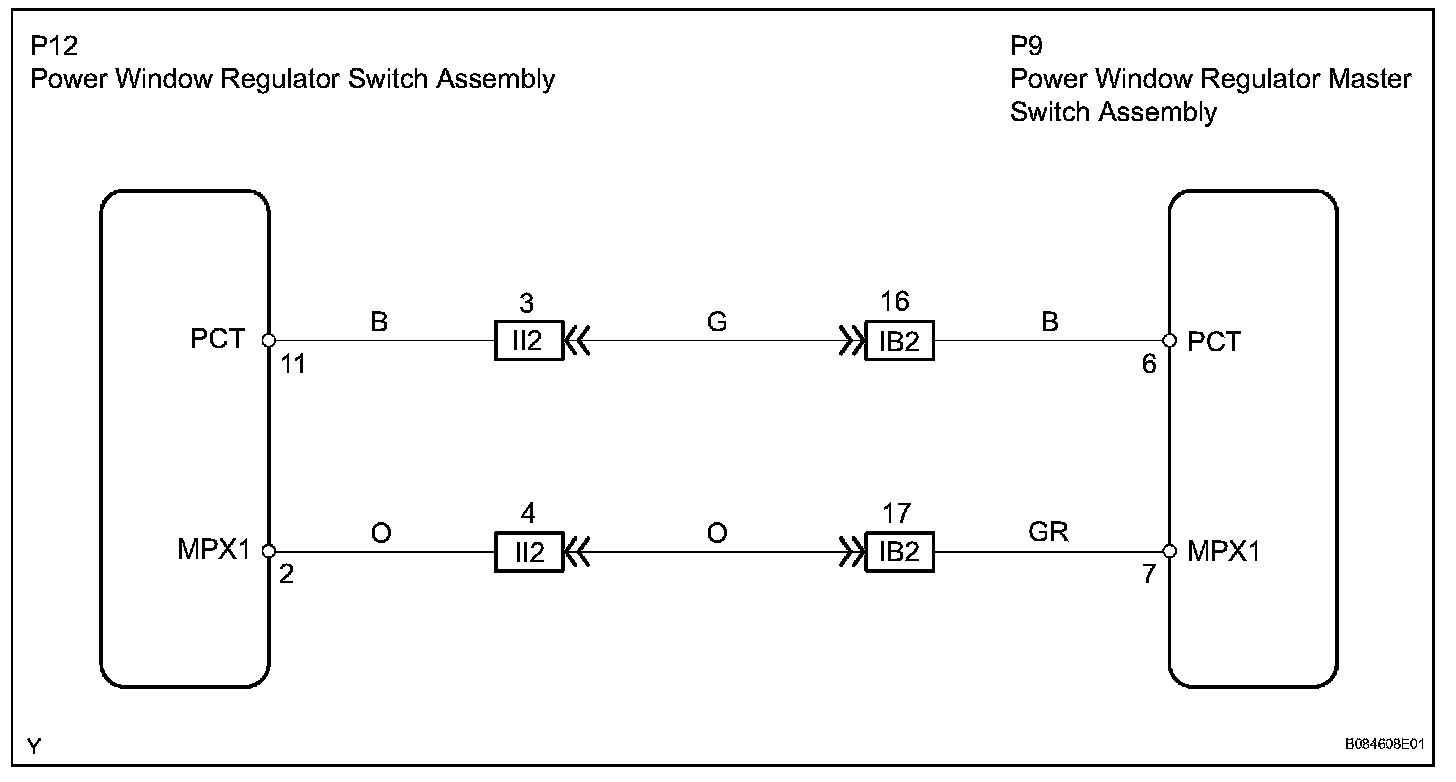

WIRING DIAGRAM

Wiring Diagram:

INSPECTION PROCEDURE

Step 1 - 2:

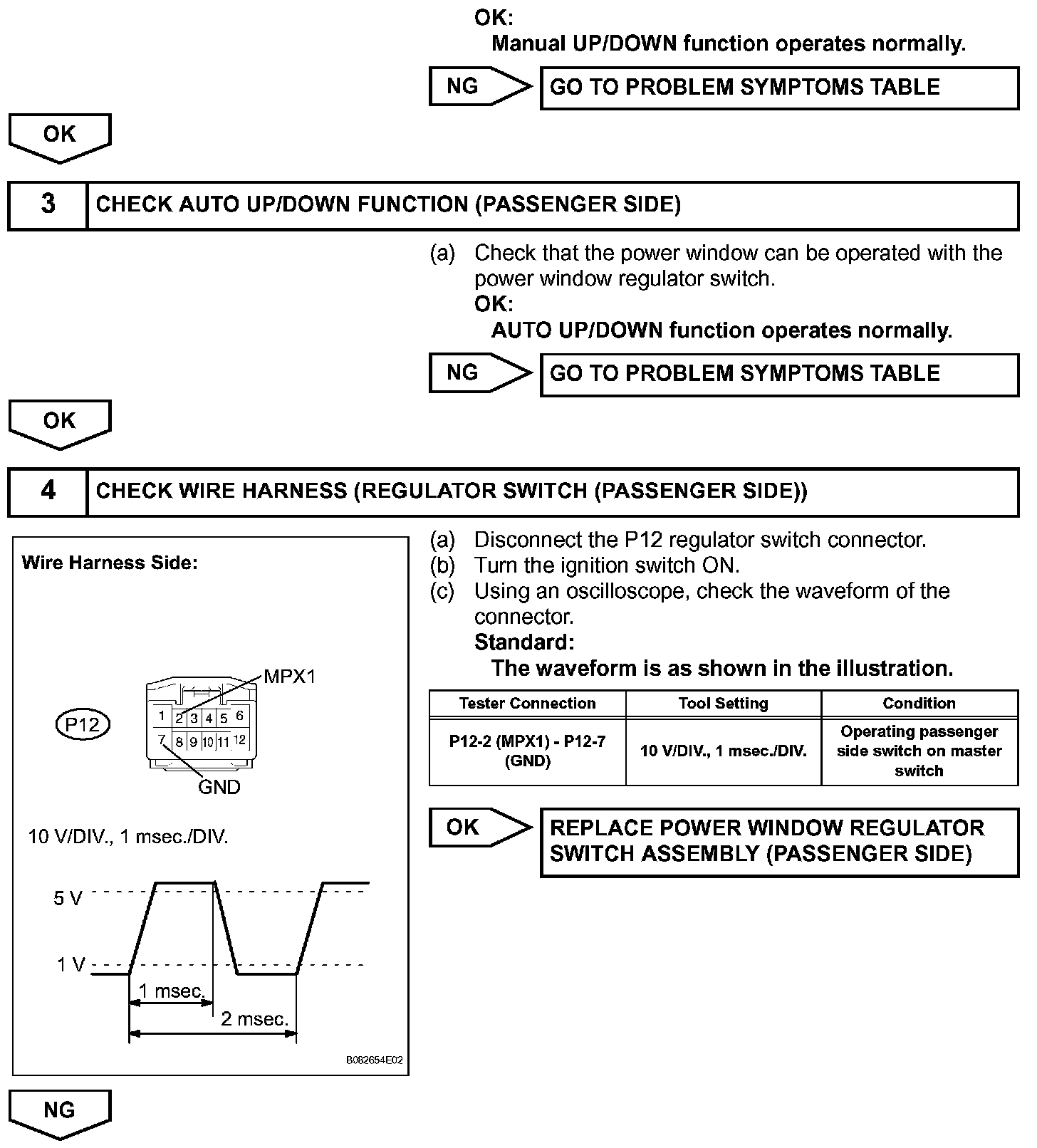

Step 2(Continued) - 4:

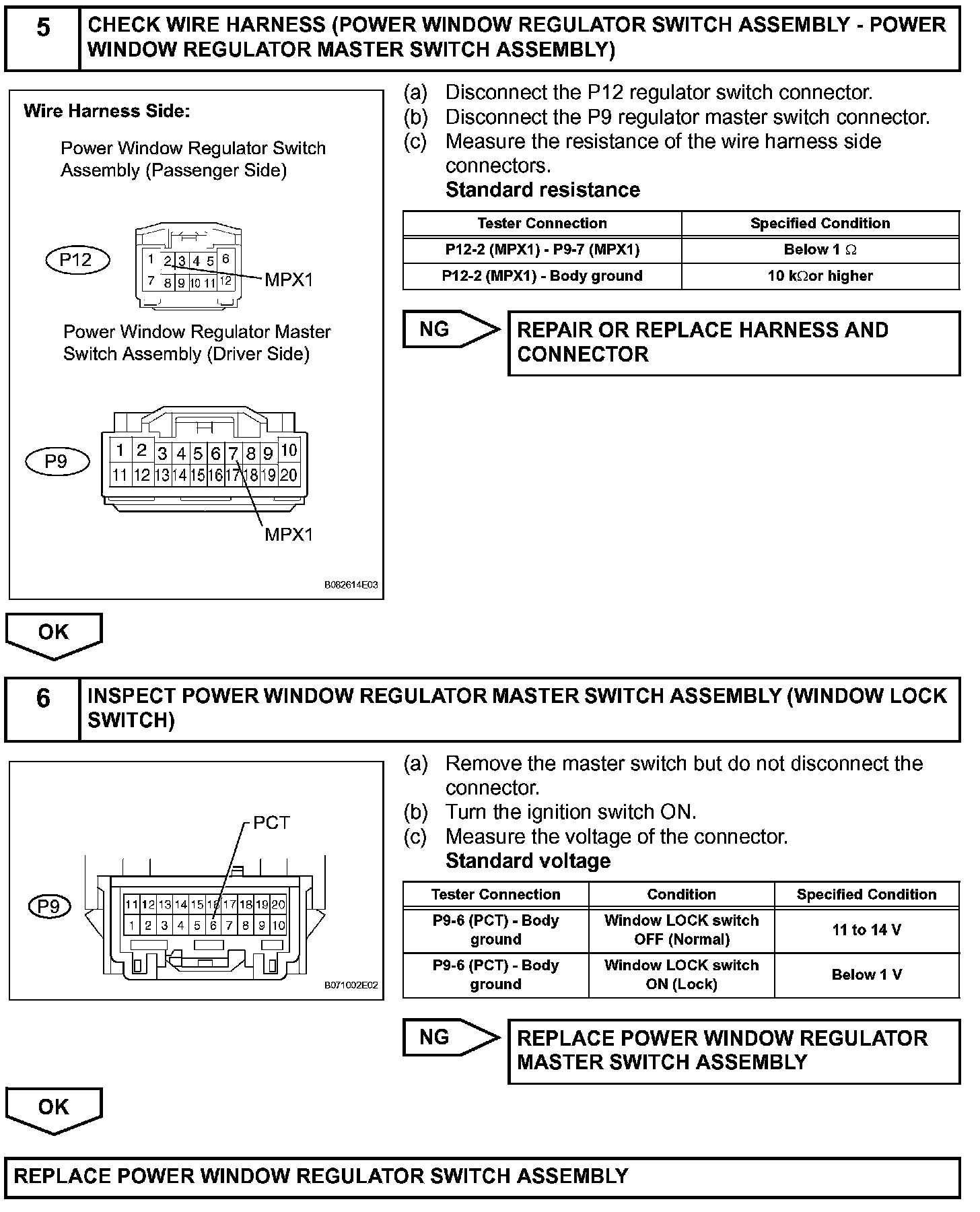

Step 5 - 6:
