Front Passenger Side Power Window Auto Up / Down Function Does Not Operate With Front Passenger Side Power Window Switch
Front Passenger Side Power Window Auto Up / Down Function does not Operate with Front Passenger Side Power Window SwitchDESCRIPTION
The power window regulator switch controls the passenger side power window and activates the passenger side power window motor.
If the AUTO UP/DOWN function does not operate, the cause may be one or more of the following:
- The recorded power window fully closed position, which is stored in the power window regulator switch, was erased as a result of the battery terminal cable or the power window switch connector being disconnected.
- The pulse sensor in the power window regulator motor has a malfunction.
- The wiring between the power regulator window switch and the corresponding power window regulator motor is open or short circuited.
- The power window regulator switch has a malfunction.
WIRING DIAGRAM

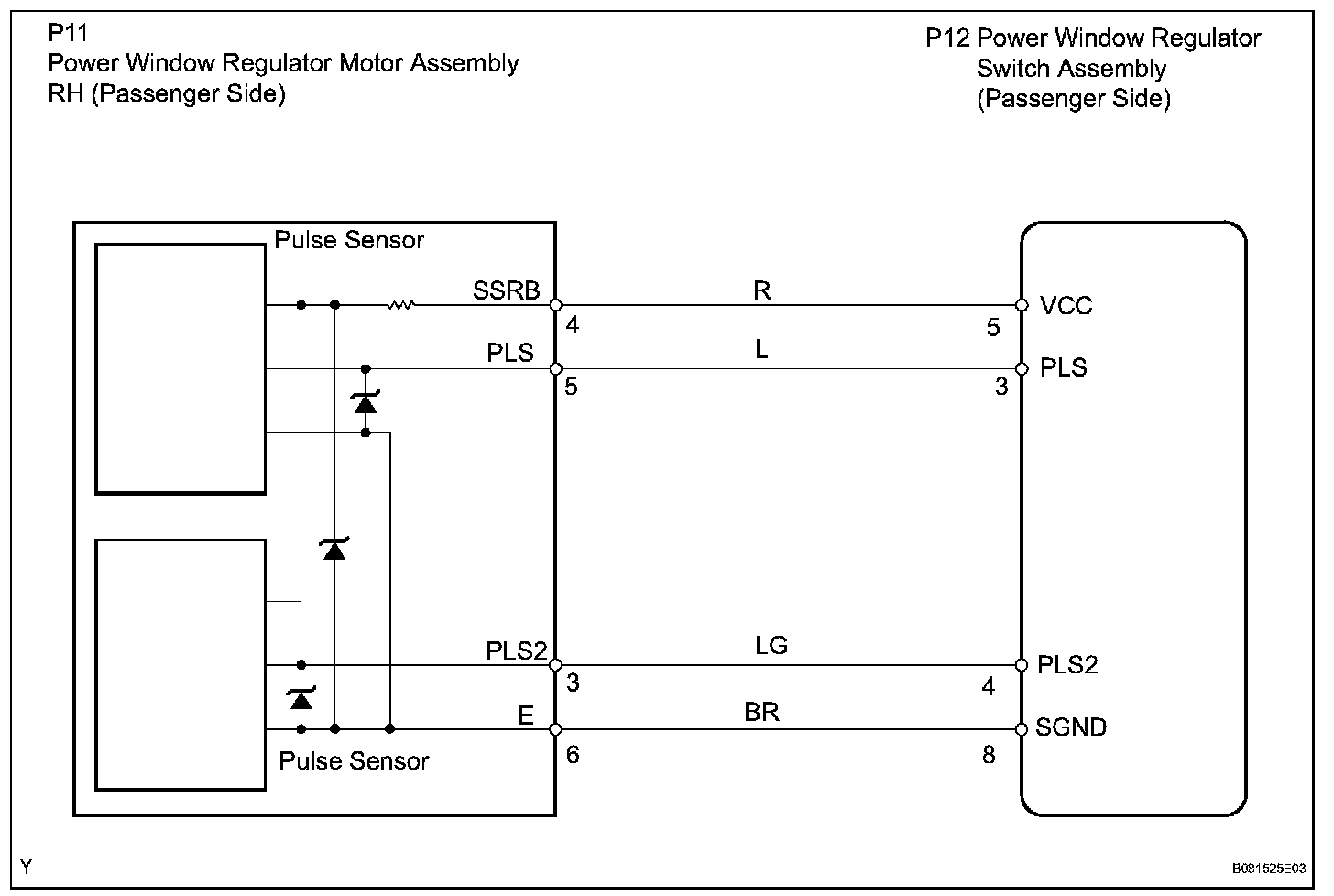

Wiring Diagram:
INSPECTION PROCEDURE

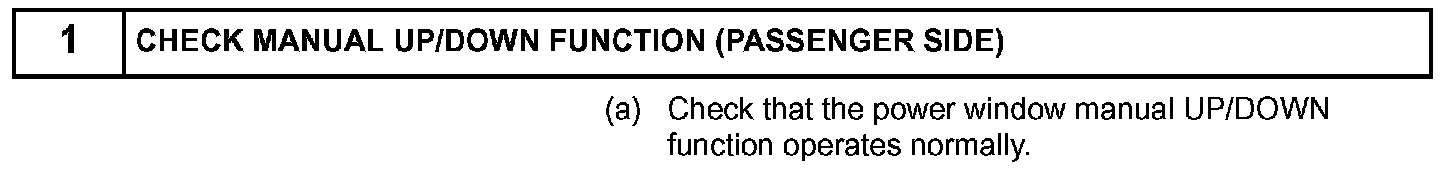

Step 1:

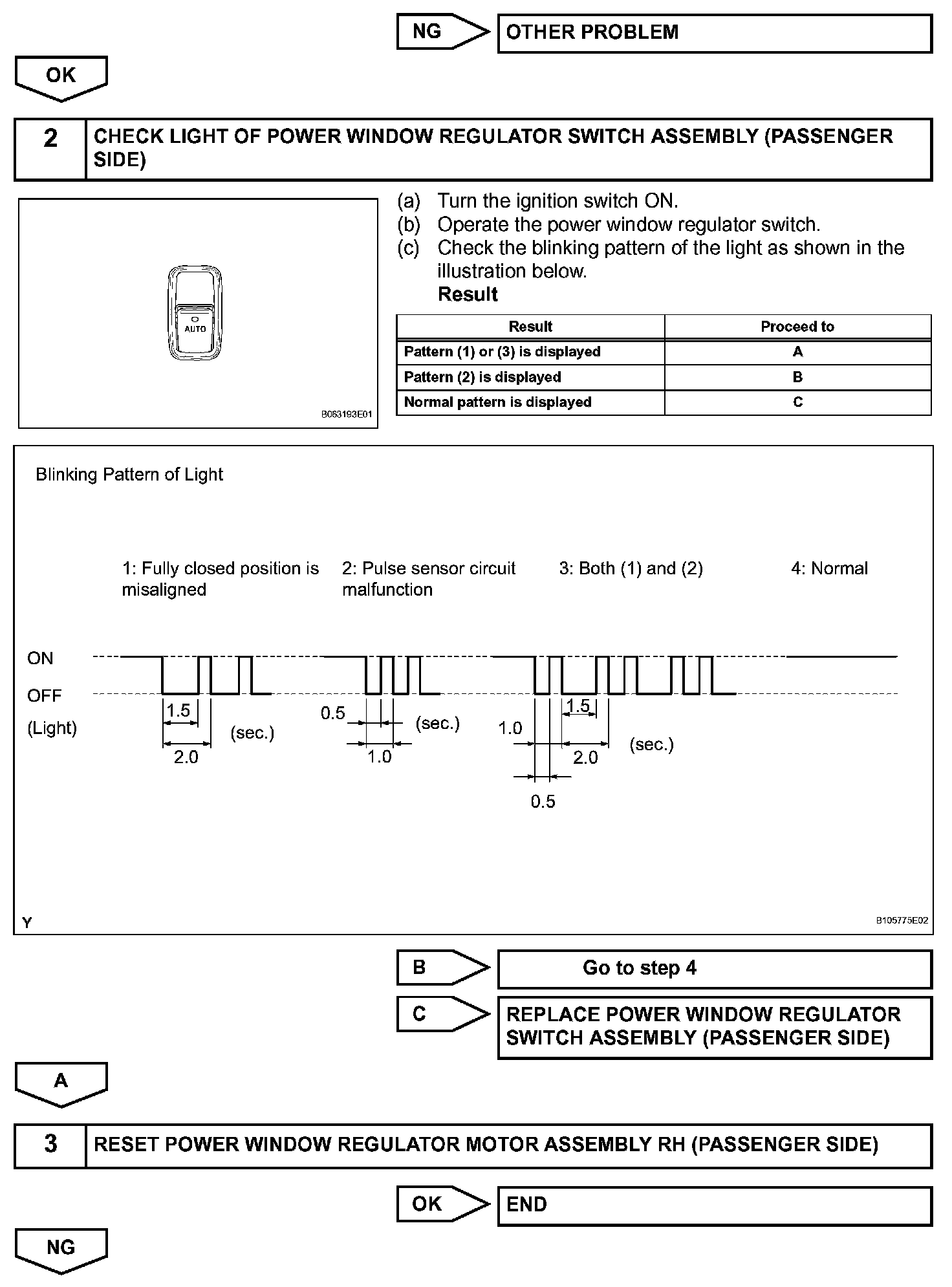

Step 1(Continued) - 3:

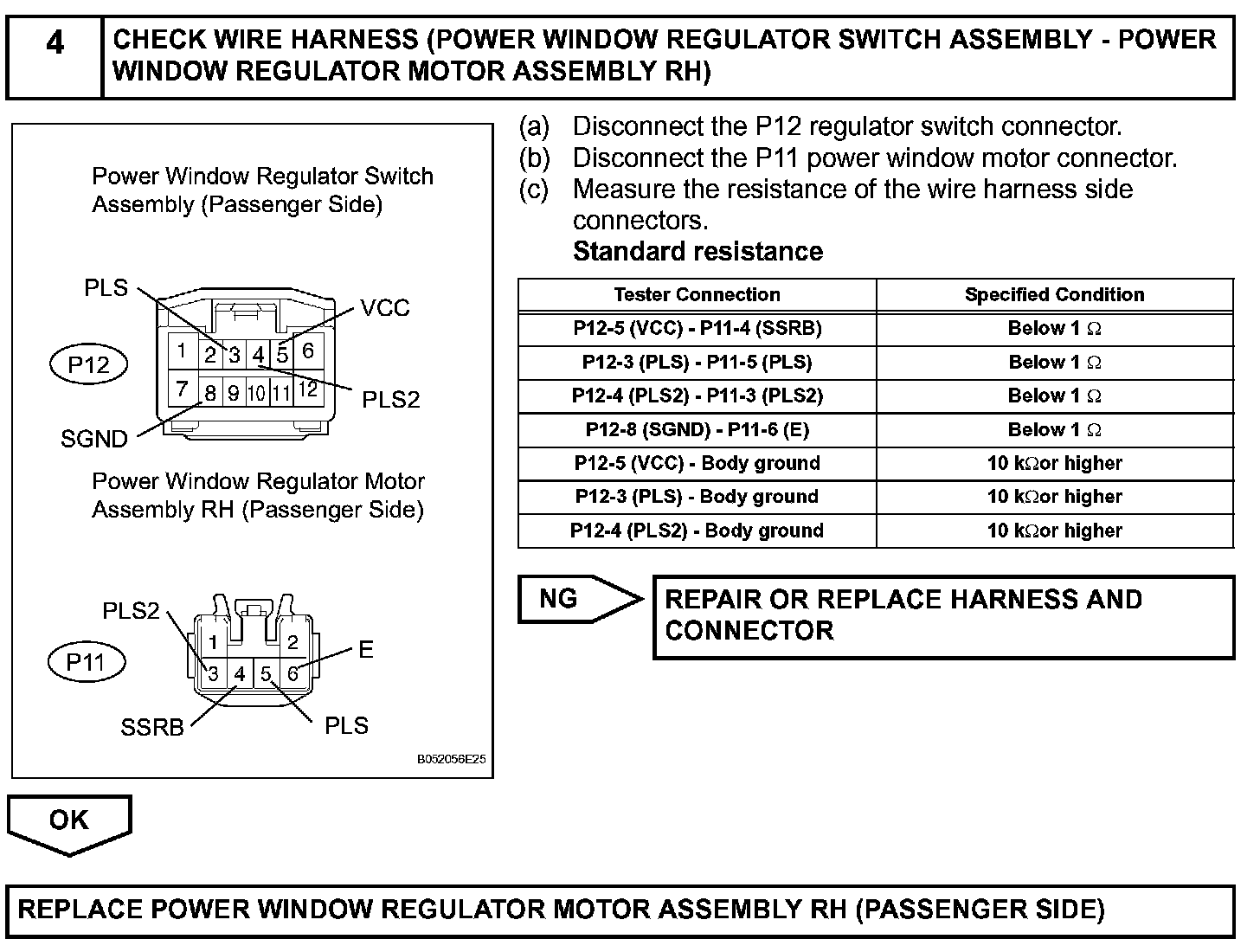

Step 4:
