Power Window Control System (w/ Jam Protection Function)
Power Window Control System (w/ Jam Protection Function)

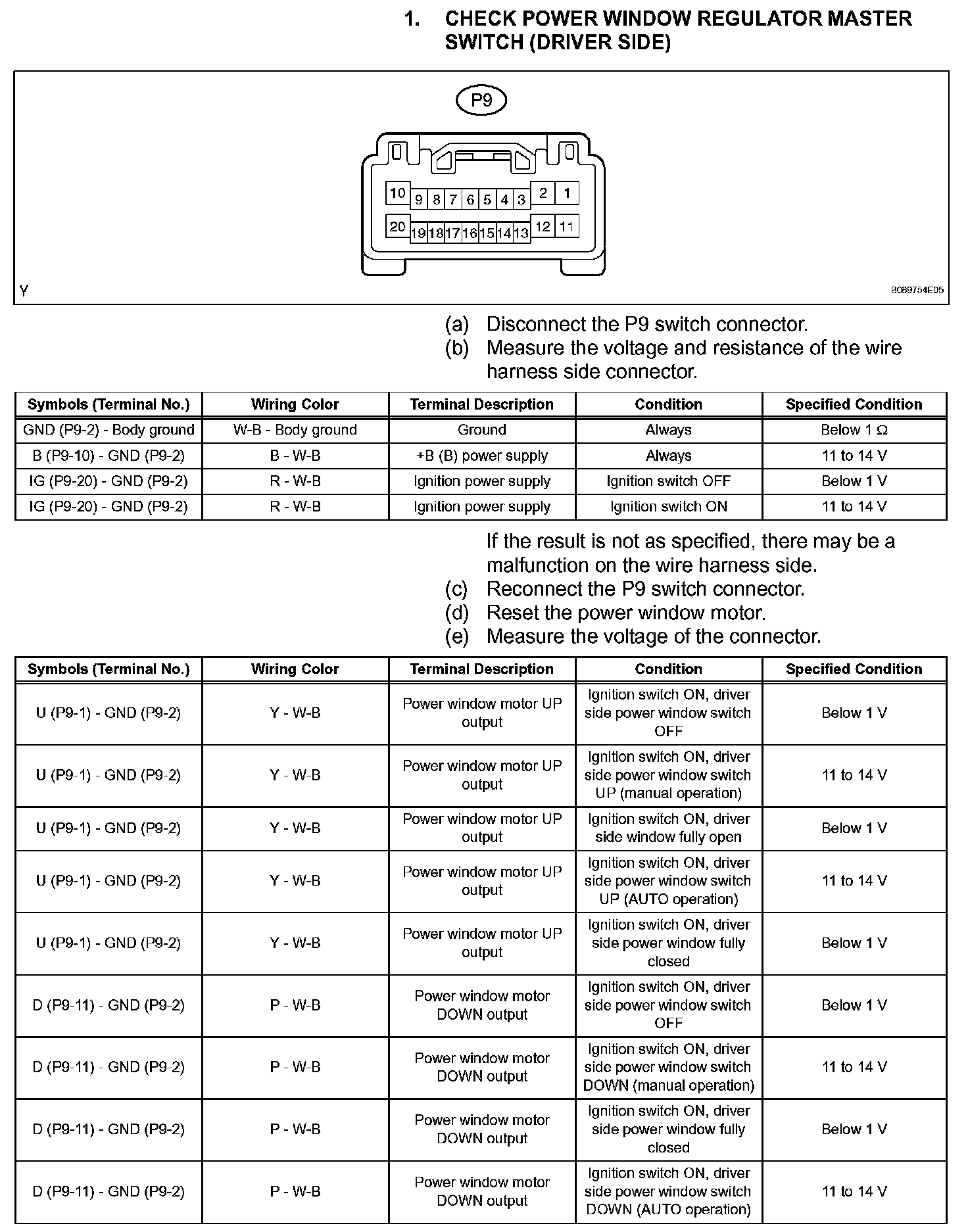

Terminals Of Control Module/Pinouts (Part 1):

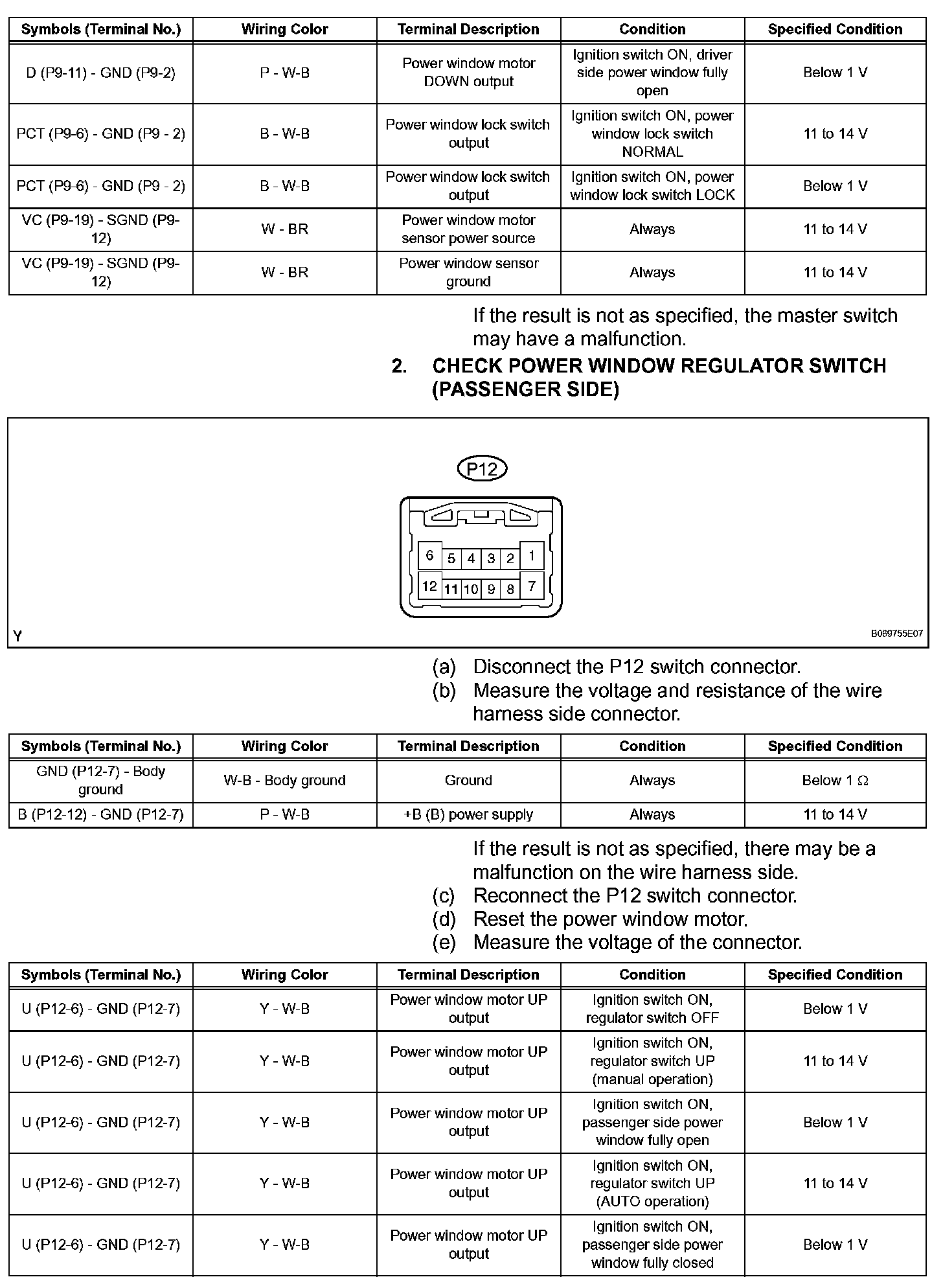

Terminals Of Control Module/Pinouts (Part 2):

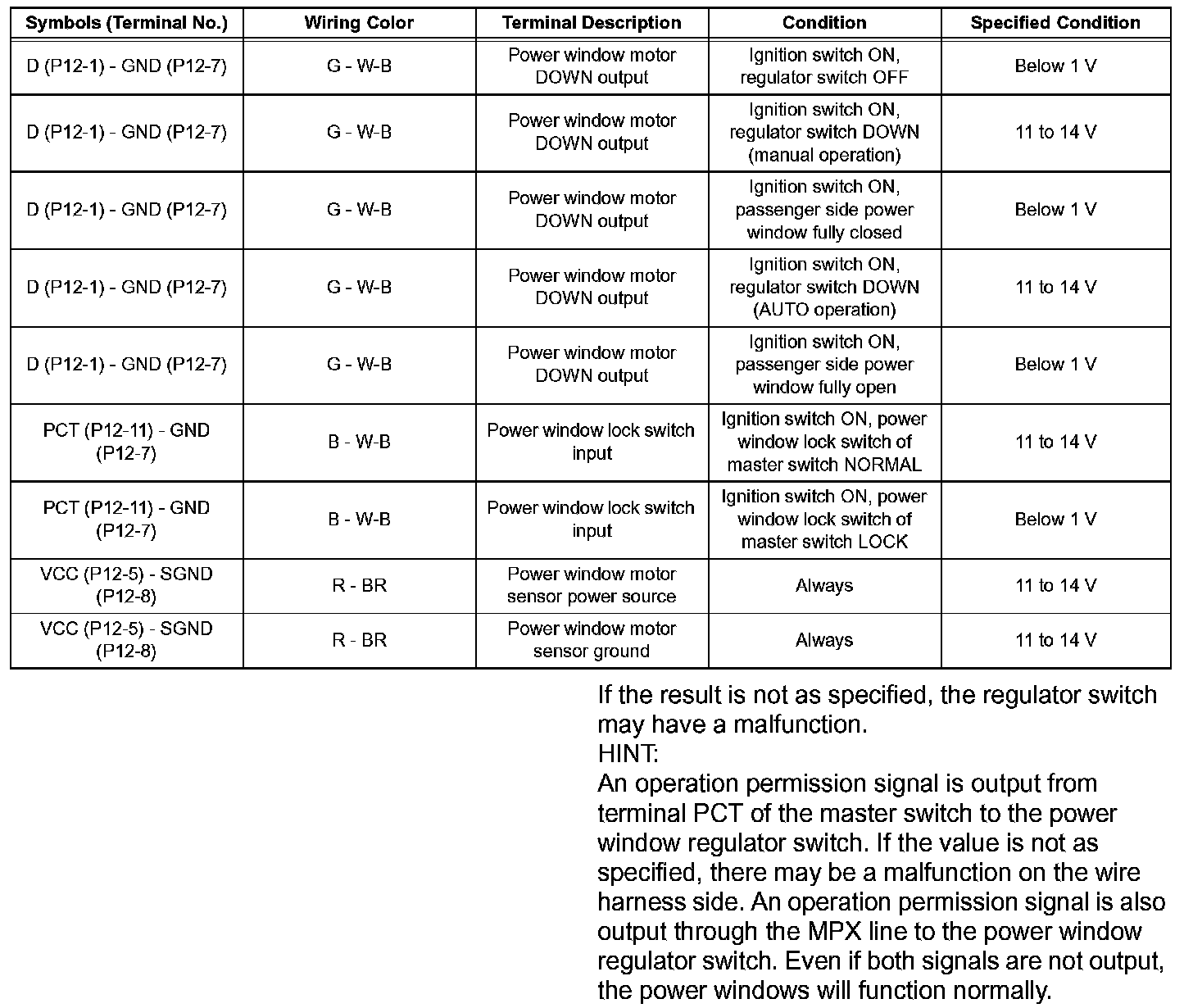

Terminals Of Control Module/Pinouts (Part 3):
