Drive Axles, Bearings and Joints: Tools and Equipment

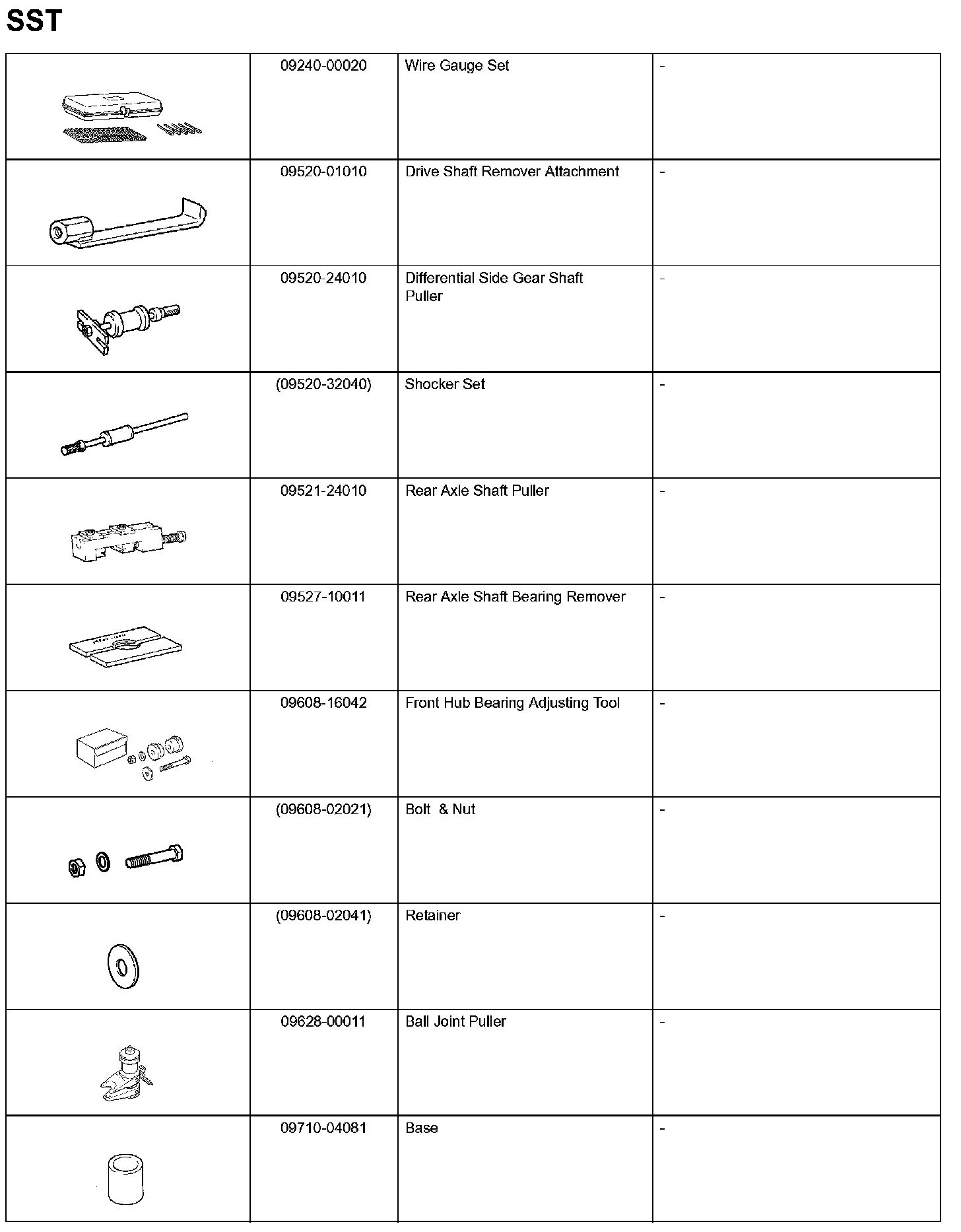

Drive Shaft - SST Part 1:

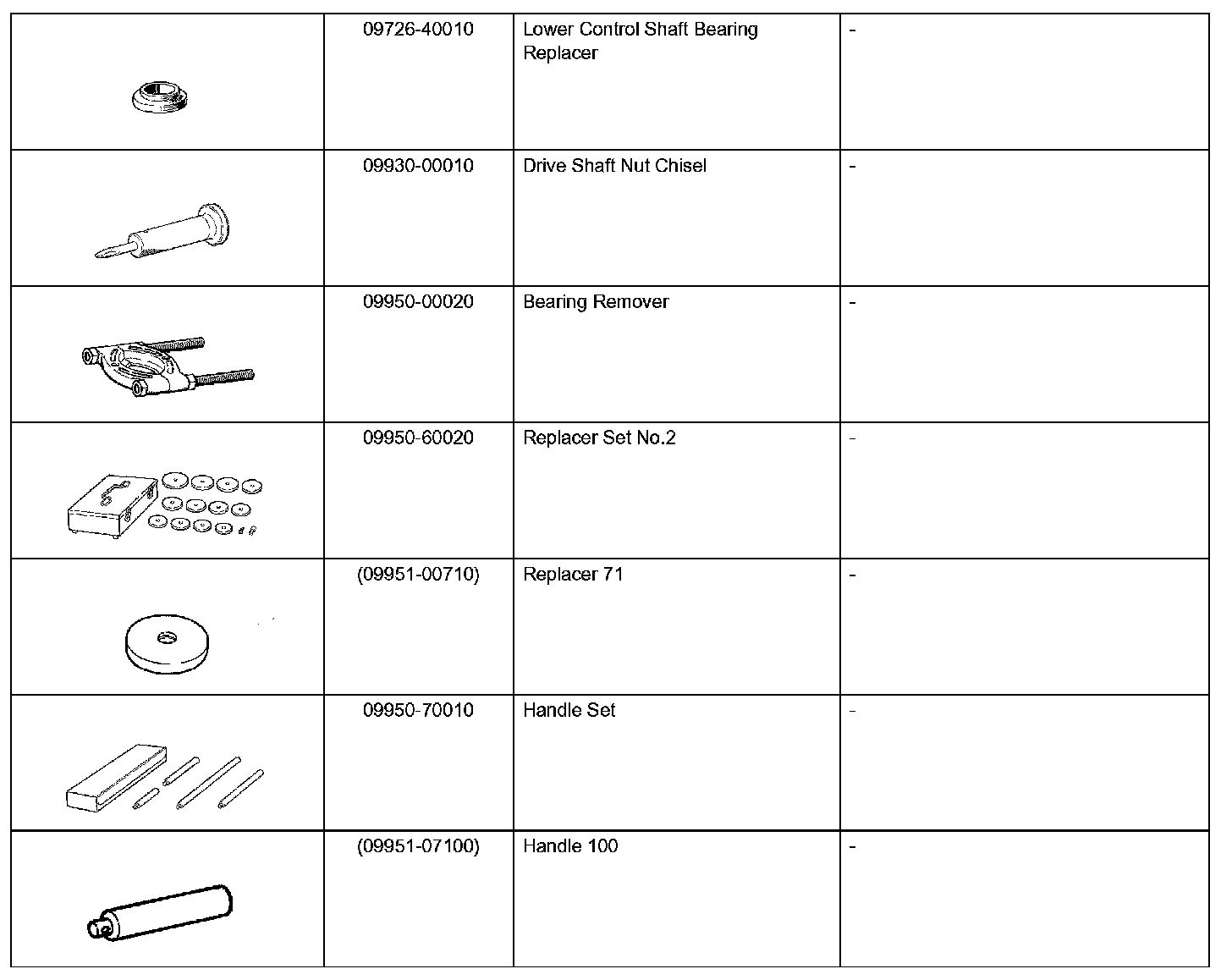

Drive Shaft - SST Part 2:

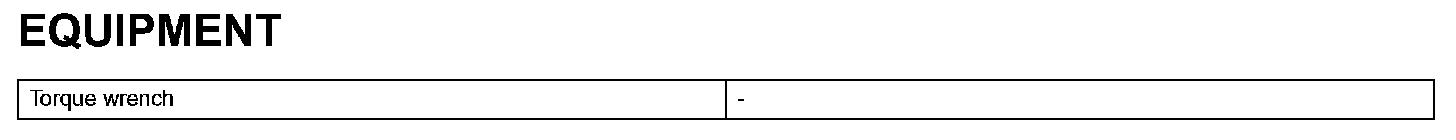

Drive Shaft - Equipment:

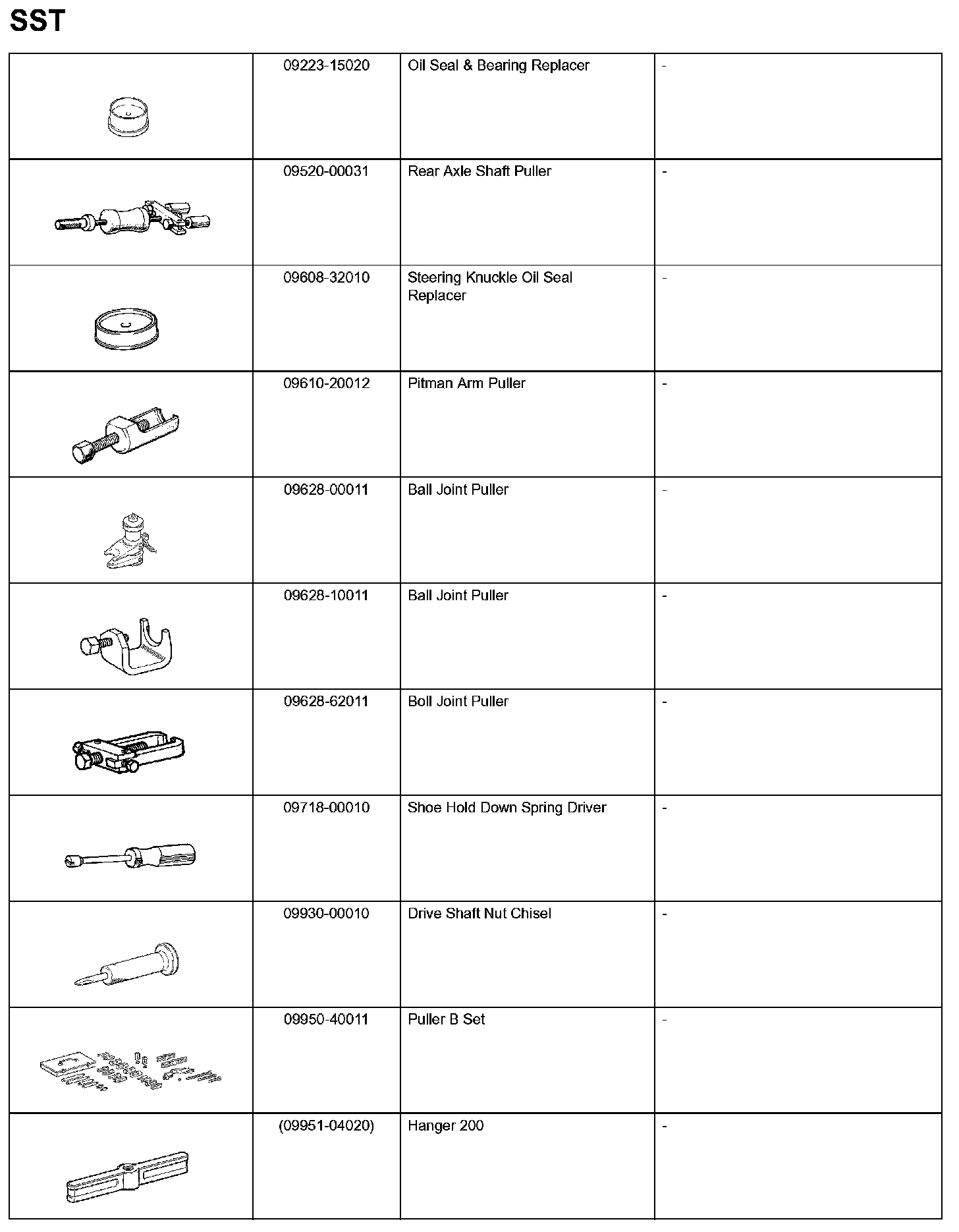

Axle - SST Part 1:

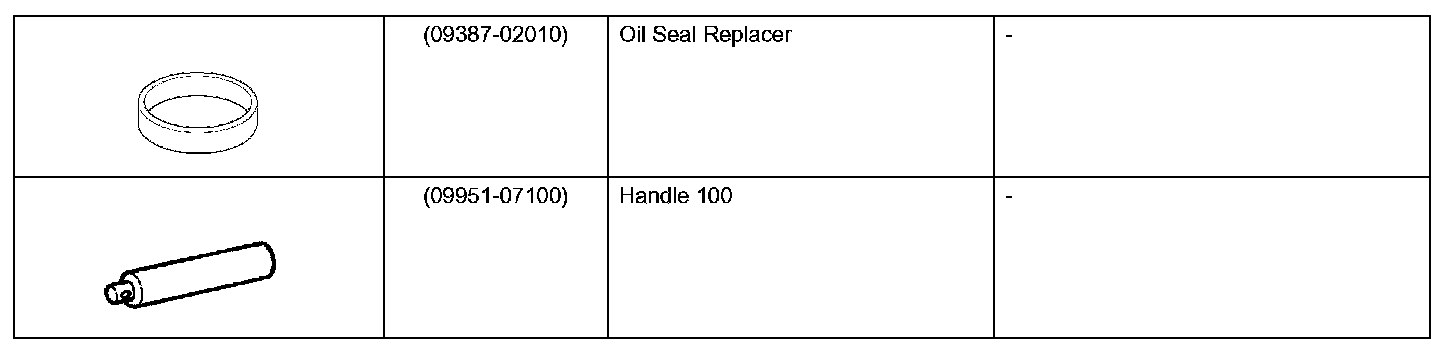

Axle - SST Part 2:

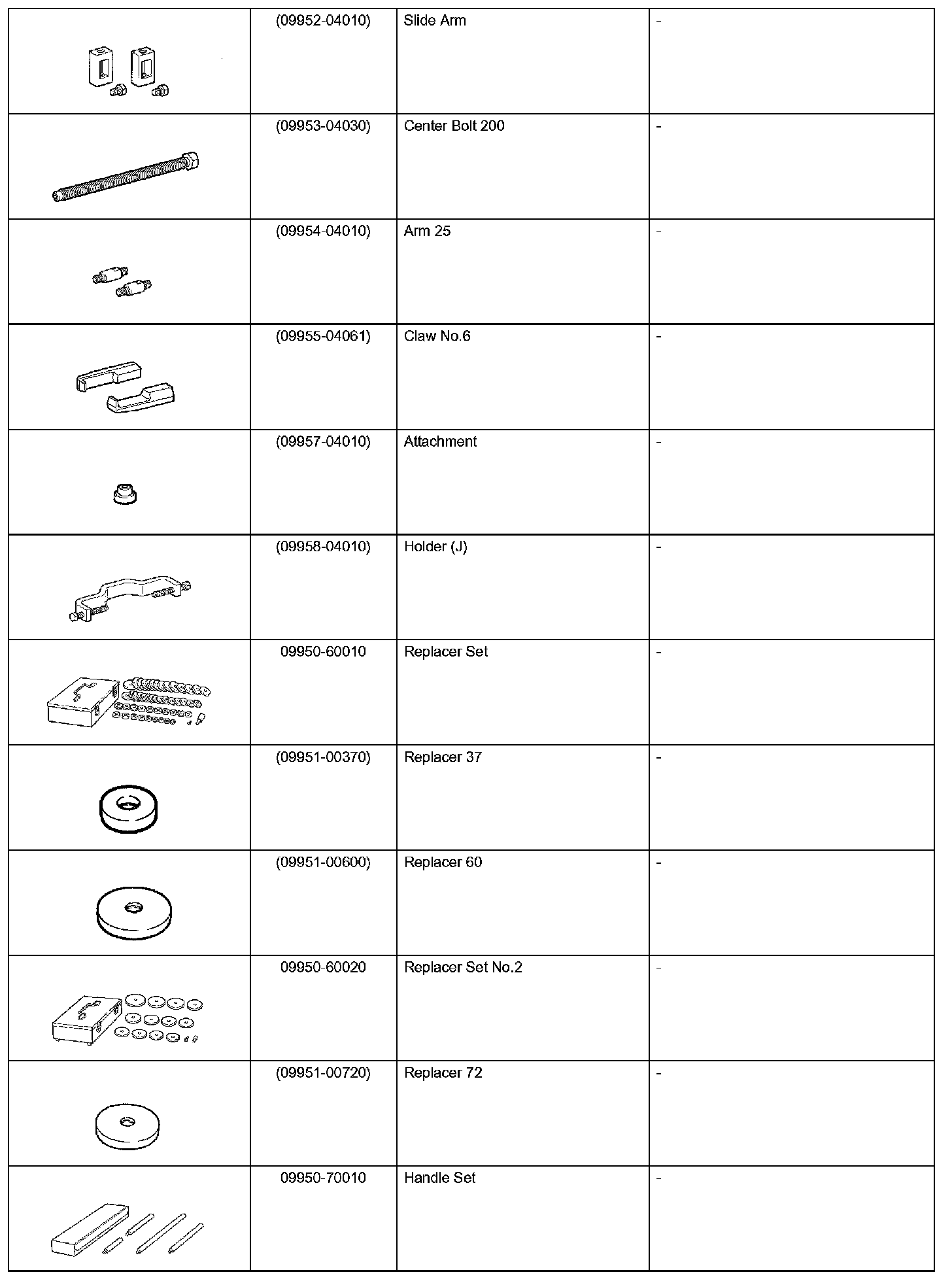

Axle - SST Part 3:

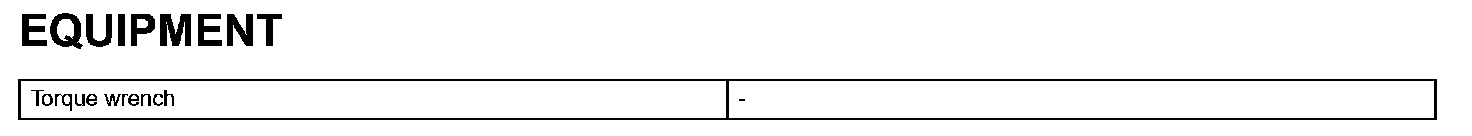

Axle - Equipment:
