Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Tools and Equipment

Automatic Transmission/Transaxle: Tools and Equipment

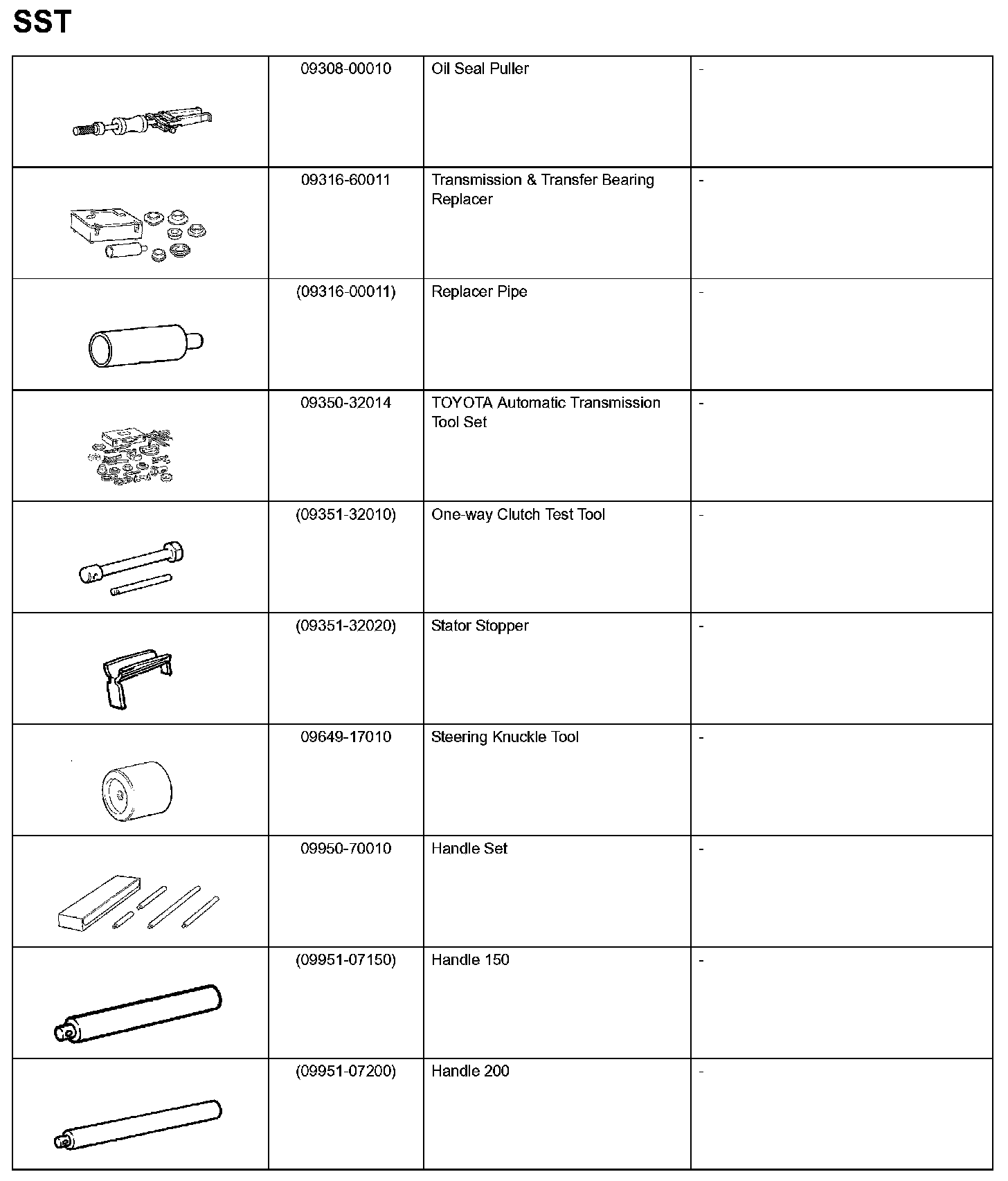

Automatic Transaxle - SST:

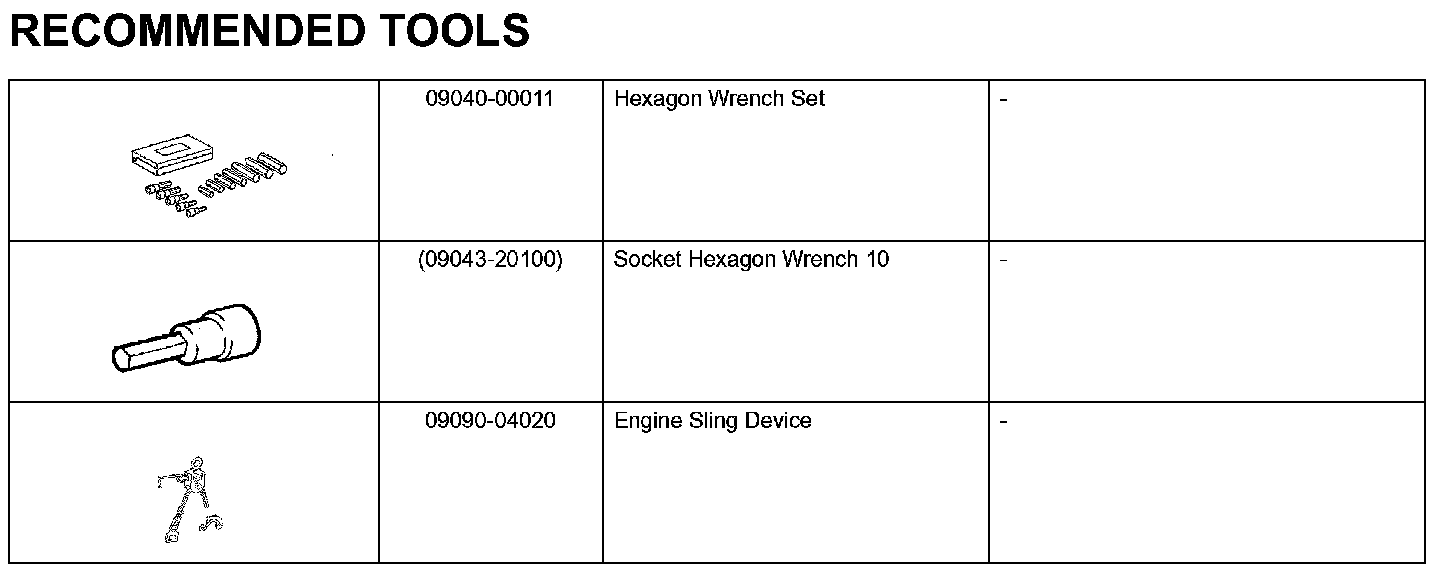

Automatic Transaxle - Recommended Tools:

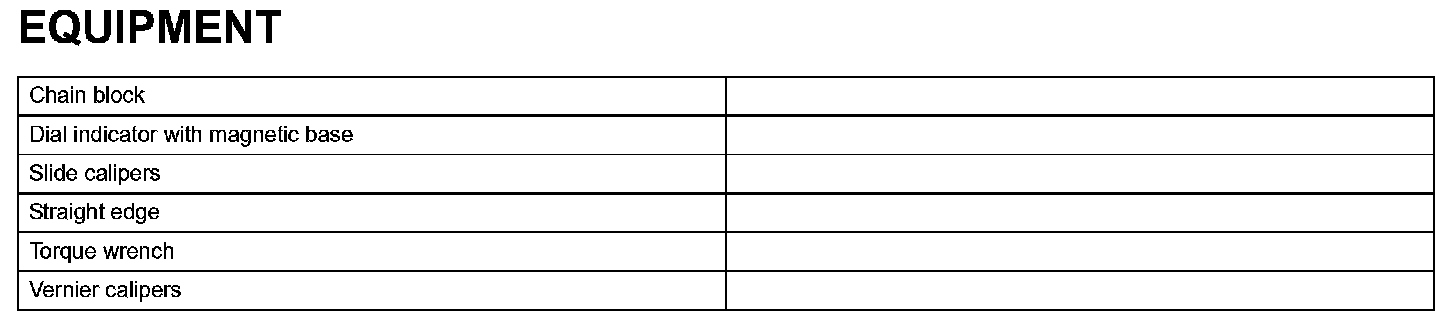

Automatic Transaxle - Equipment:

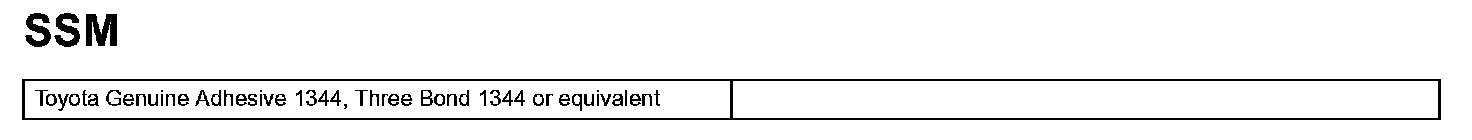

Automatic Transaxle - SSM:
