Home >> Scion >> 2007 >> tC L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Standard Bolt

Standard Bolt

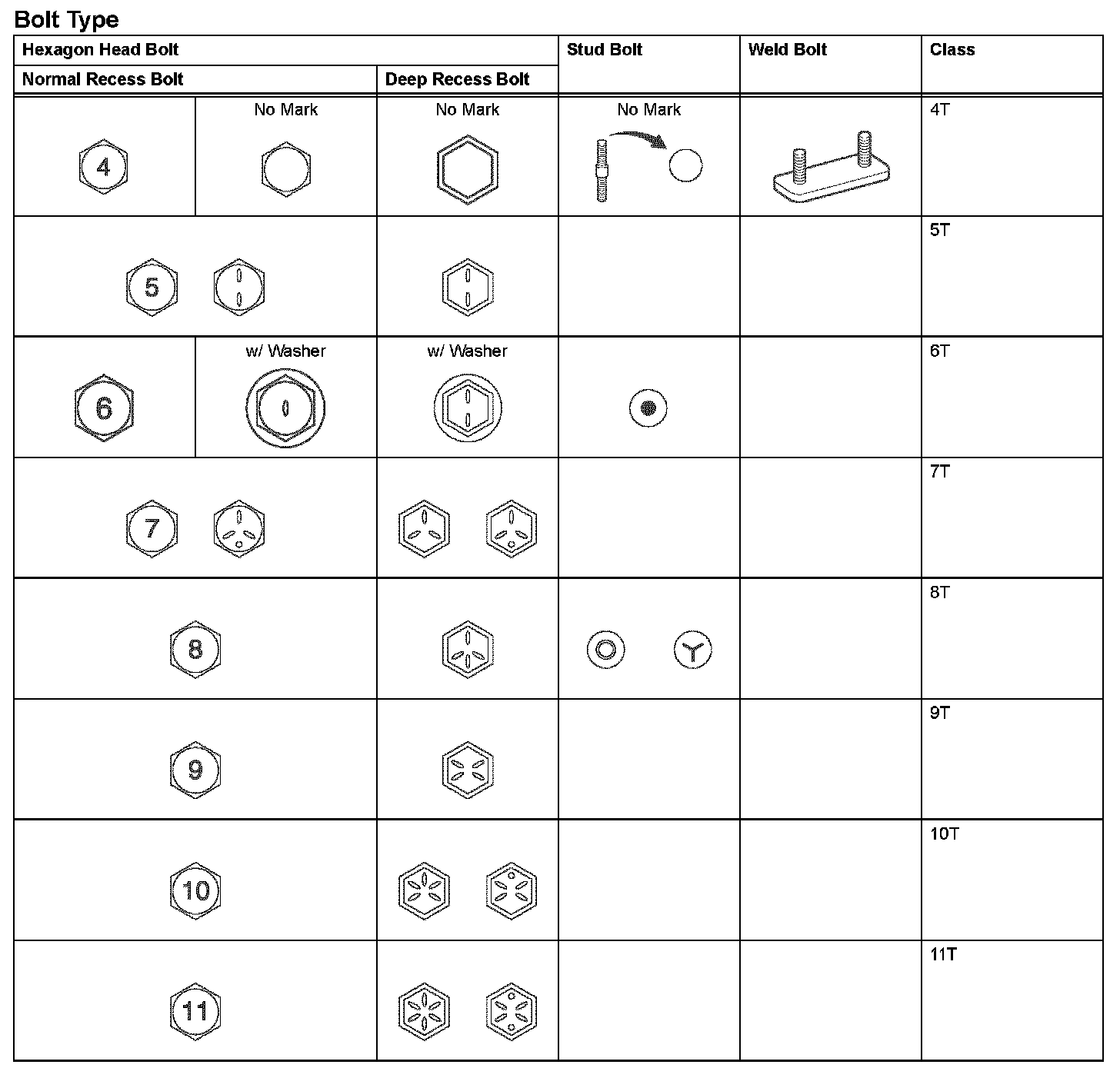

How To Determine Bolt Strength:

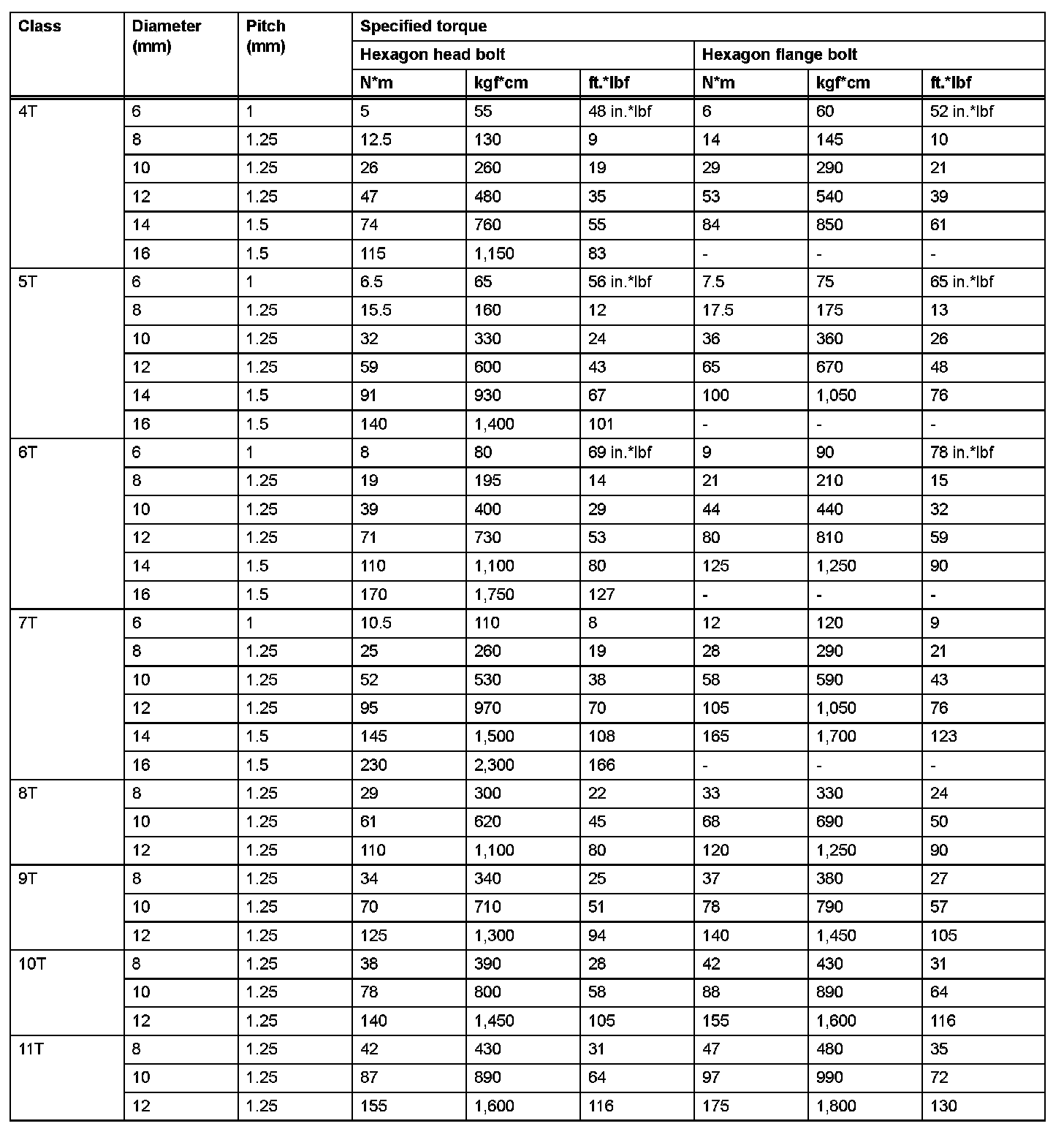

Specified Torque For Standard Bolts:
