Service Data
Service Data

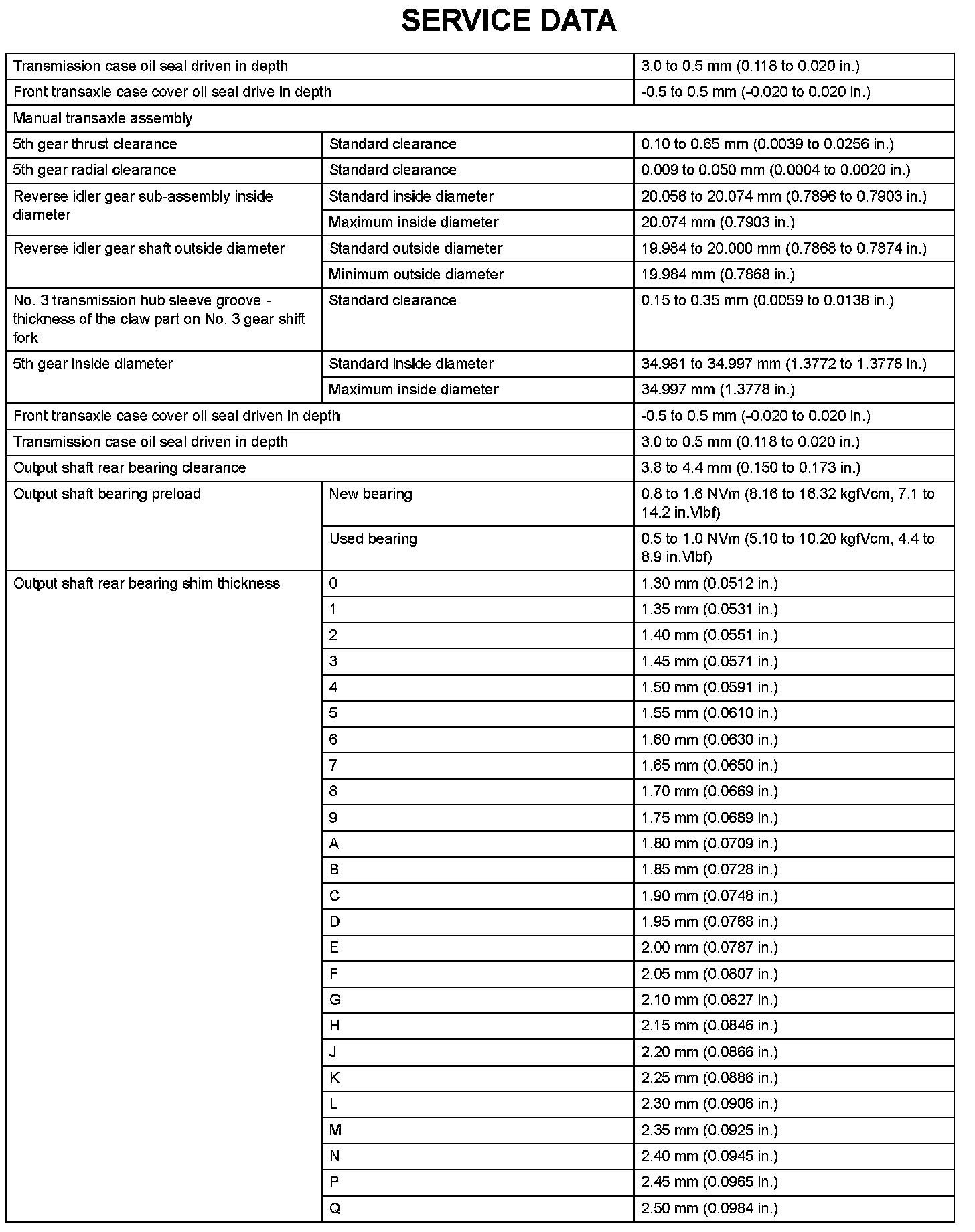

Manual Transaxle - Service Data (Part 1):

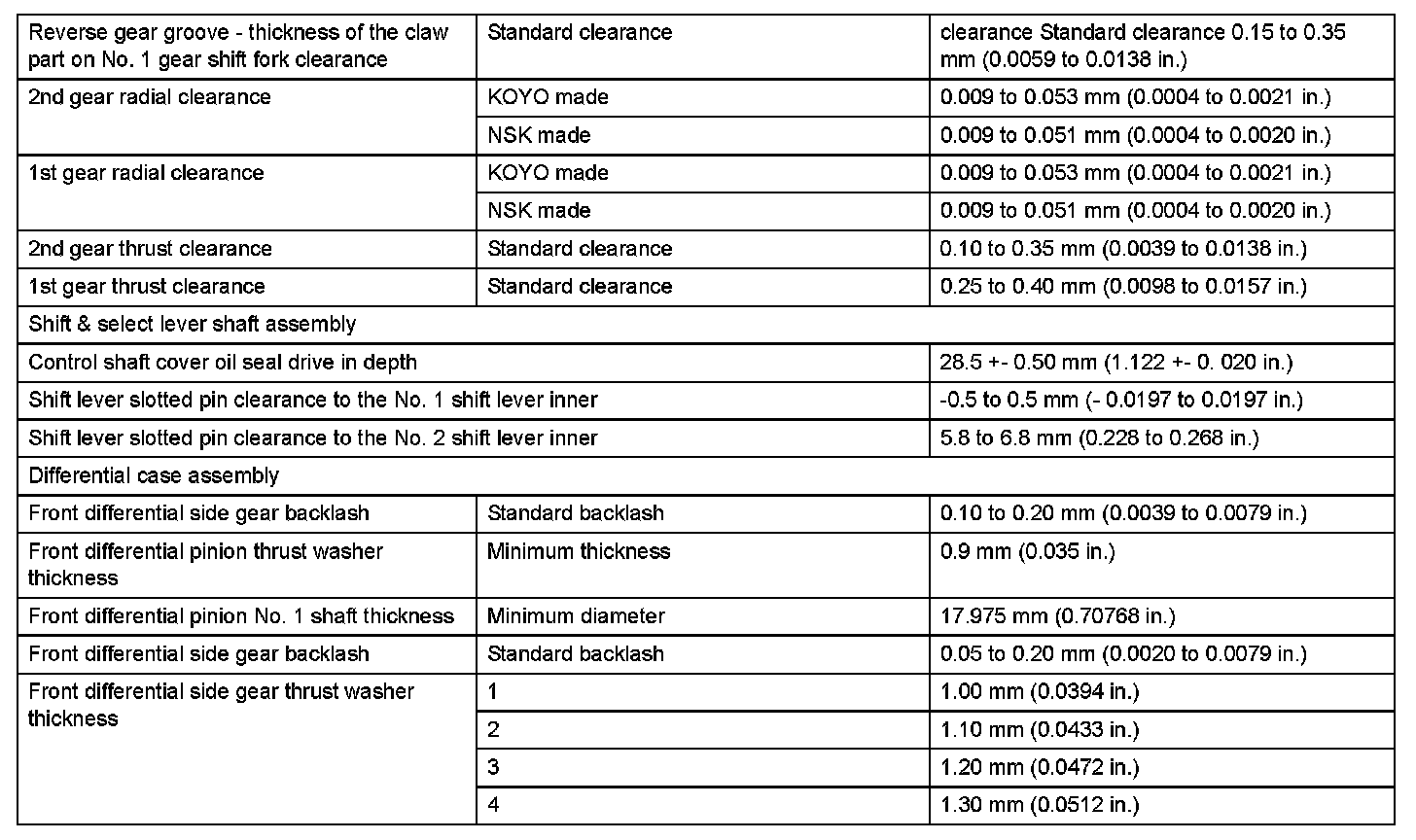

Manual Transaxle - Service Data (Part 2):

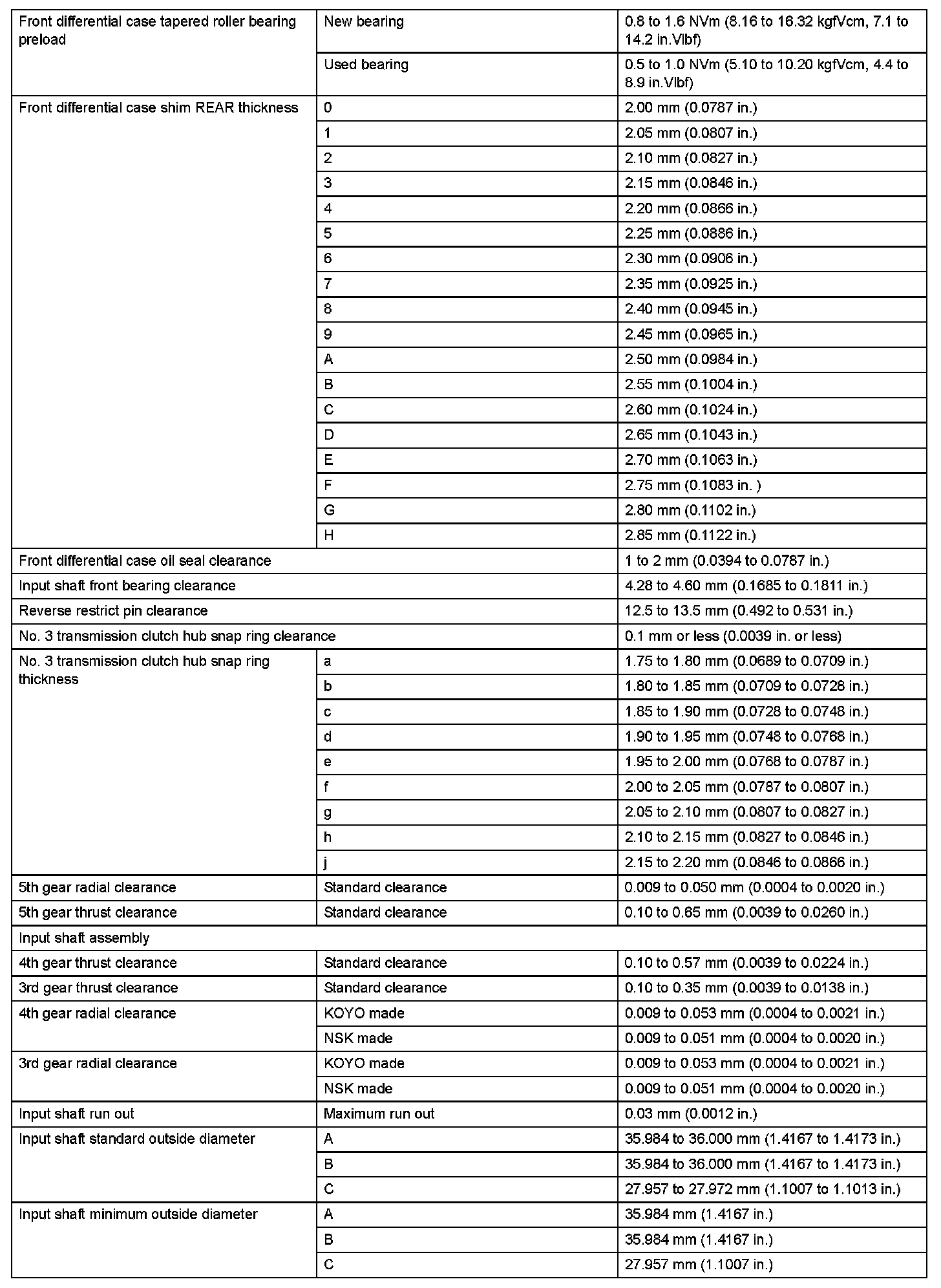

Manual Transaxle - Service Data (Part 3):

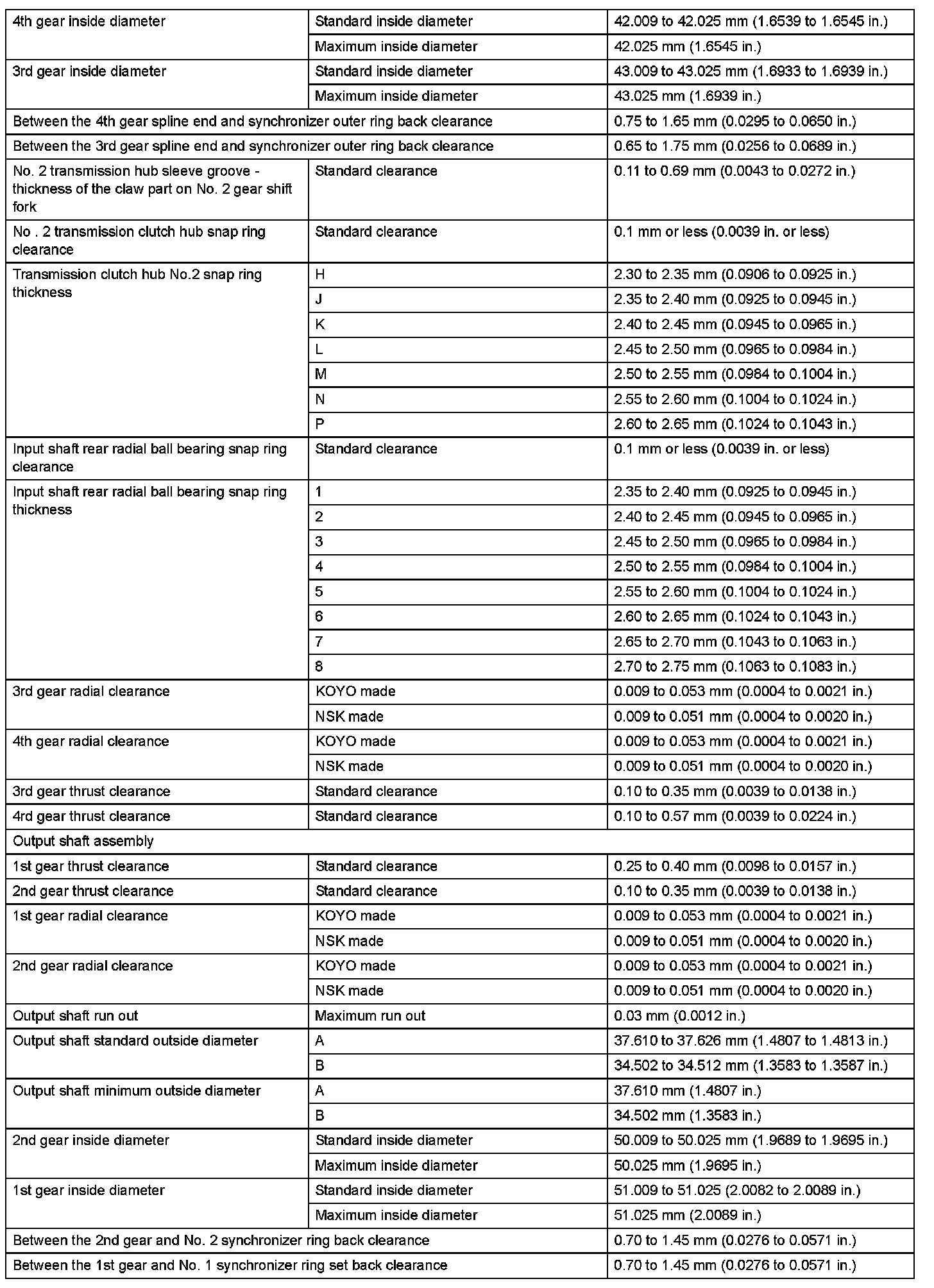

Manual Transaxle - Service Data (Part 4):
