Crankshaft Position Sensor: Testing and Inspection

INSPECTION

INSPECT CRANKSHAFT POSITION SENSOR

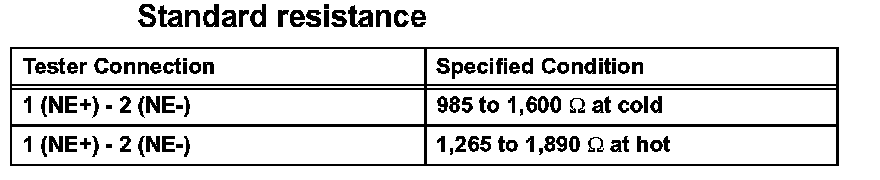

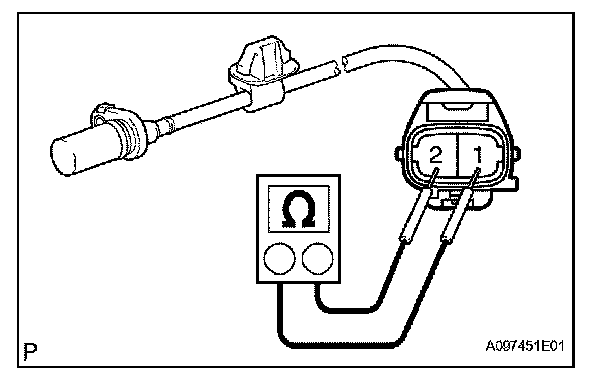

a. Measure the resistance of the sensor.

NOTE: Cold and Hot mean the temperature of the coils themselves. Cold is from -10 to 50 °C (14 to 122 °F) and Hot is from 50 to 100 °C (122 to 212 °F).

If the result is not as specified, replace the crankshaft position sensor.
