Knock Sensor: Testing and Inspection

INSPECTION

INSPECT KNOCK SENSOR

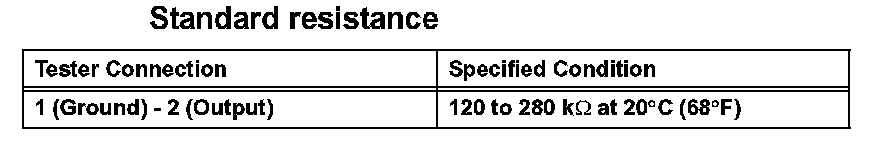

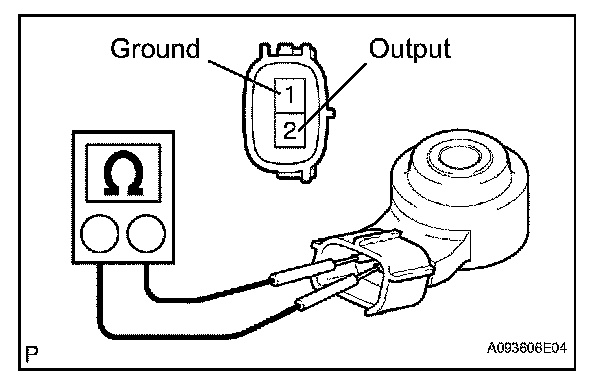

Measure the resistance of the sensor.

If the result is not as specified, replace the knock sensor.
