Headlamp Dimmer Switch: Testing and Inspection

INSPECTION

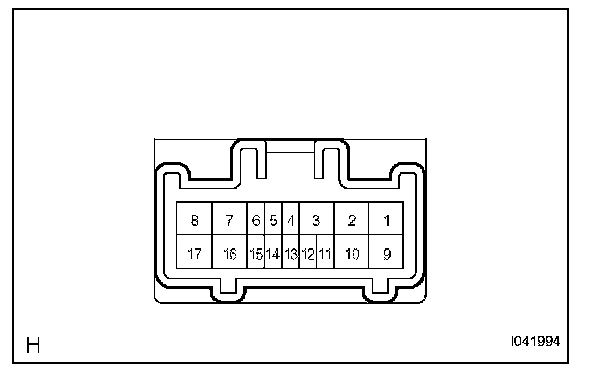

1. INSPECT HEADLIGHT DIMMER SWITCH ASSEMBLY

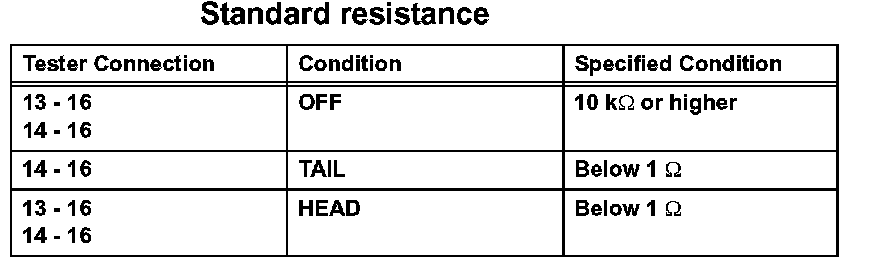

a. Inspect the light control switch.




1. Measure the resistance according to the value(s) in the table.

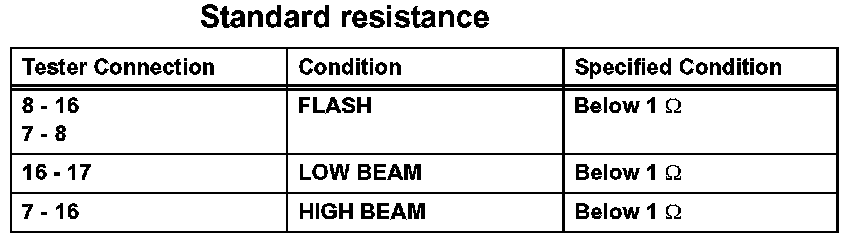

b. Inspect the headlight dimmer switch.




1. Measure the resistance according to the value(s) in the table.

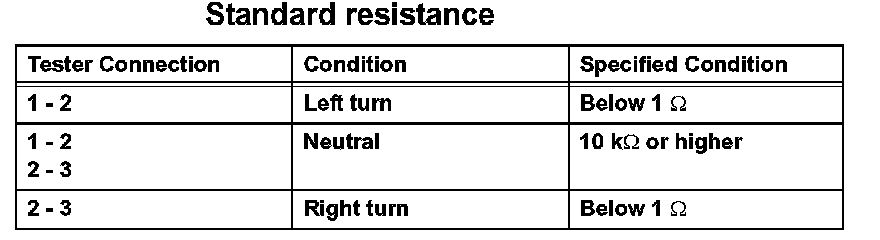

c. Inspect the turn signal switch.




1. Measure the resistance according to the value(s) in the table.
