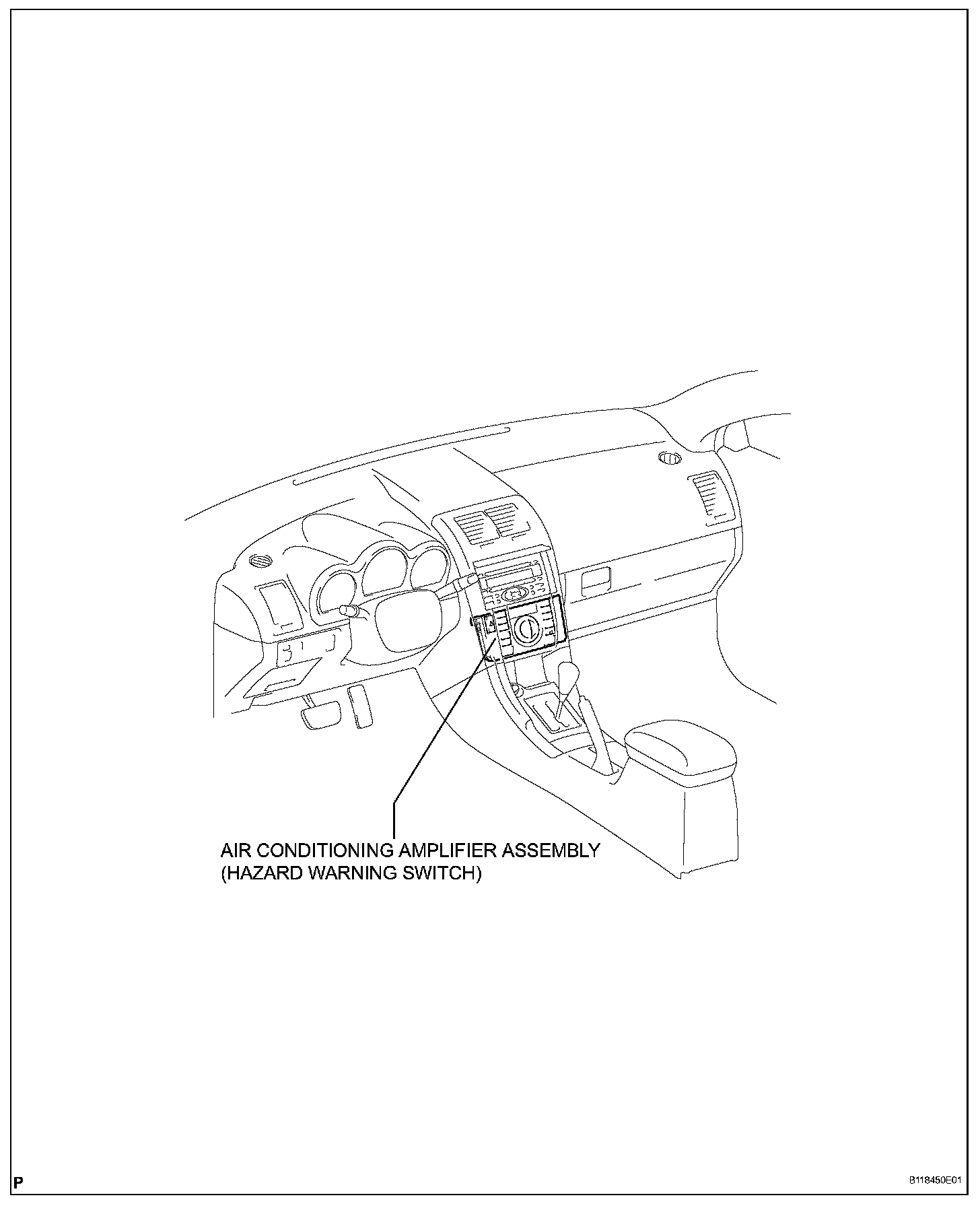

Hazard Warning Switch: Service and Repair

Hazard Warning Switch:

REMOVAL

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.

2. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (for Manual Transaxle)
3. REMOVE UPPER CONSOLE PANEL
4. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY

INSTALLATION

1. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
2. INSTALL UPPER CONSOLE PANEL
3. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
4. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
5. PERFORM INITIALIZATION
a. Perform initialization.

NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
