Evaporator Temperature Sensor / Switch: Service and Repair

Evaporator Temperature Sensor:

Evaporator Temperature Sensor:

EVAPORATOR TEMPERATURE SENSOR

REMOVAL

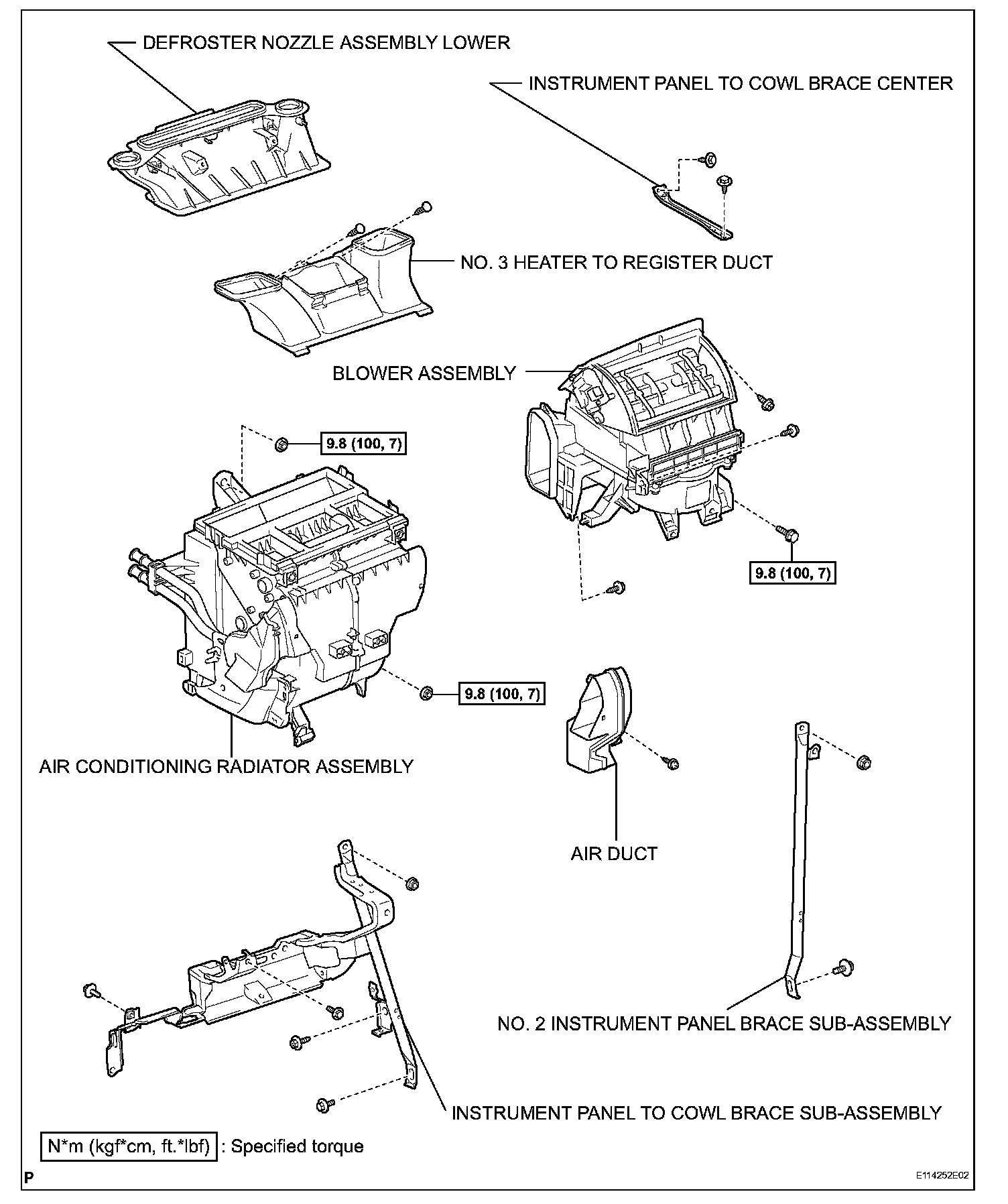

1. REMOVE AIR CONDITIONING RADIATOR ASSEMBLY
a. Remove the air conditioning radiator assembly

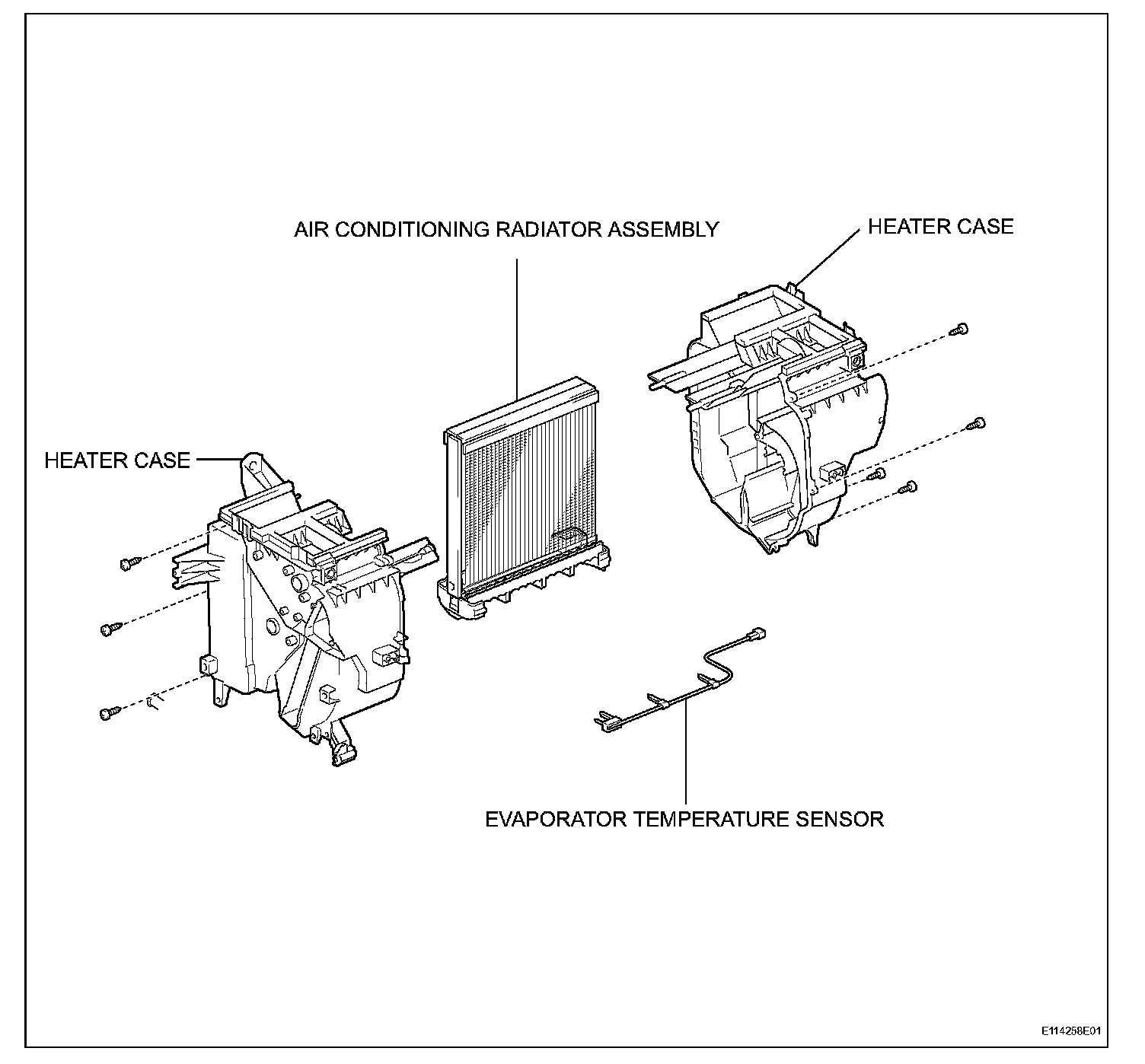

2. REMOVE EVAPORATOR TEMPERATURE SENSOR

INSTALLATION

1. INSTALL EVAPORATOR TEMPERATURE SENSOR
2. INSTALL AIR CONDITIONING RADIATOR ASSEMBLY
a. Install the air conditioning radiator assembly.
