Skid Control Sensor
REMOVALHINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
CAUTION: Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to prevent airbag and seat belt pretensioner activation.
2. REMOVE REAR WHEEL
3. DISCONNECT SKID CONTROL SENSOR WIRE
4. REMOVE REAR DISC BRAKE CYLINDER MOUNTING WITH REAR DISC BRAKE CYLINDER ASSEMBLY
5. REMOVE REAR DISC
6. REMOVE REAR AXLE HUB AND BEARING
7. REMOVE SKID CONTROL SENSOR
a. Install the 4 hub nuts to the 4 rear axle hub bolts.
b. Placing an aluminum plate below the rear axle hub and bearing assembly, place them into a vise.
NOTE: Replace the rear axle hub and bearing assembly if it is dropped or receives a strong shock.
c. Using a 3 mm pin punch and hammer, remove the 2 pins from the SST (09520-00031) and disconnect the attachment (09521-00010).

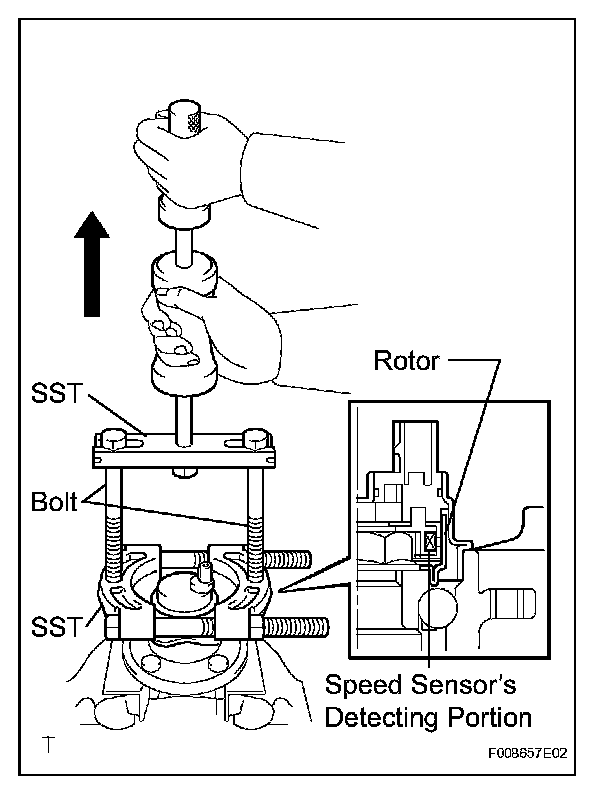

d. Using SST and 2 bolts, remove the skid control sensor from the rear axle hub and bearing assembly.
SST 09520-00031 (09520-00040), 09521-00020, 09950-00020
NOTE:
- Pull the skid control sensor off straight, be careful not to make contact with the skid control sensor rotor.
- If the sensor rotor is damaged or deformed, replace the rear axle hub and bearing assembly.
- Do not scratch the area where the skid control sensor contacts the rear axle hub and bearing assembly.
- Do not attach the foreign matter to the sensor rotor.
INSTALLATION
HINT:
- Use the same procedures for the LH side and RH side.
- The procedures listed below are for the LH side.
1. INSTALL SKID CONTROL SENSOR
a. Wipe off sealant attached to the skid control sensor's fitting surface with white gasoline.
NOTE: Prevent foreign matter from attaching to the sensor rotor.

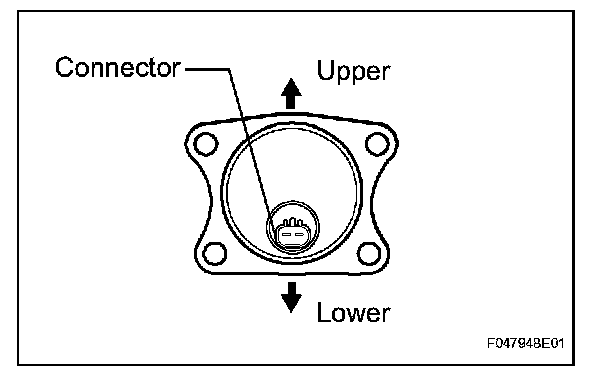

b. Install a new skid control sensor to the rear axle hub and bearing assembly. The skid control sensor connector should be placed in the lowest position.
HINT: The rear axle hub and bearing assembly should be placed with the narrow side facing the lower side.

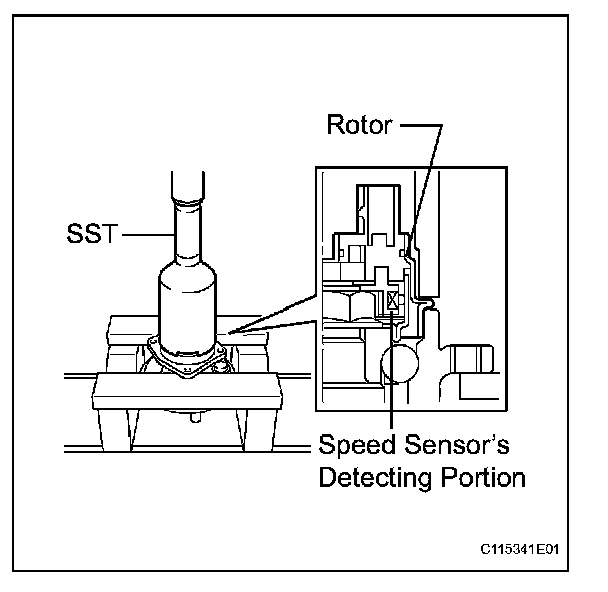

c. Using SST and a press, press the skid control sensor so that it becomes flat with the rear axle hub and bearing assembly.
SST 09214-76011
NOTE:
- Do not use a hammer on the skid control sensor.
- Check that there is no foreign matter such as iron chips on the sensor's detection portion.
- Slowly press the skid control sensor in straight.
2. INSTALL REAR AXLE HUB AND BEARING
3. INSTALL REAR DISC
4. INSTALL REAR DISC BRAKE CYLINDER MOUNTING WITH REAR DISC BRAKE CYLINDER ASSEMBLY
5. CONNECT SKID CONTROL SENSOR WIRE
6. INSTALL REAR WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
7. CHECK AND ADJUST REAR WHEEL ALIGNMENT
a. Check and adjust the rear wheel alignment
8. CABLE TO NEGATIVE BATTERY TERMINAL BATTERY
9. PERFORM INITIALIZATION
a. Perform initialization
NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
10. CHECK ABS SPEED SENSOR SIGNAL
a. Check the ABS speed sensor signal.
